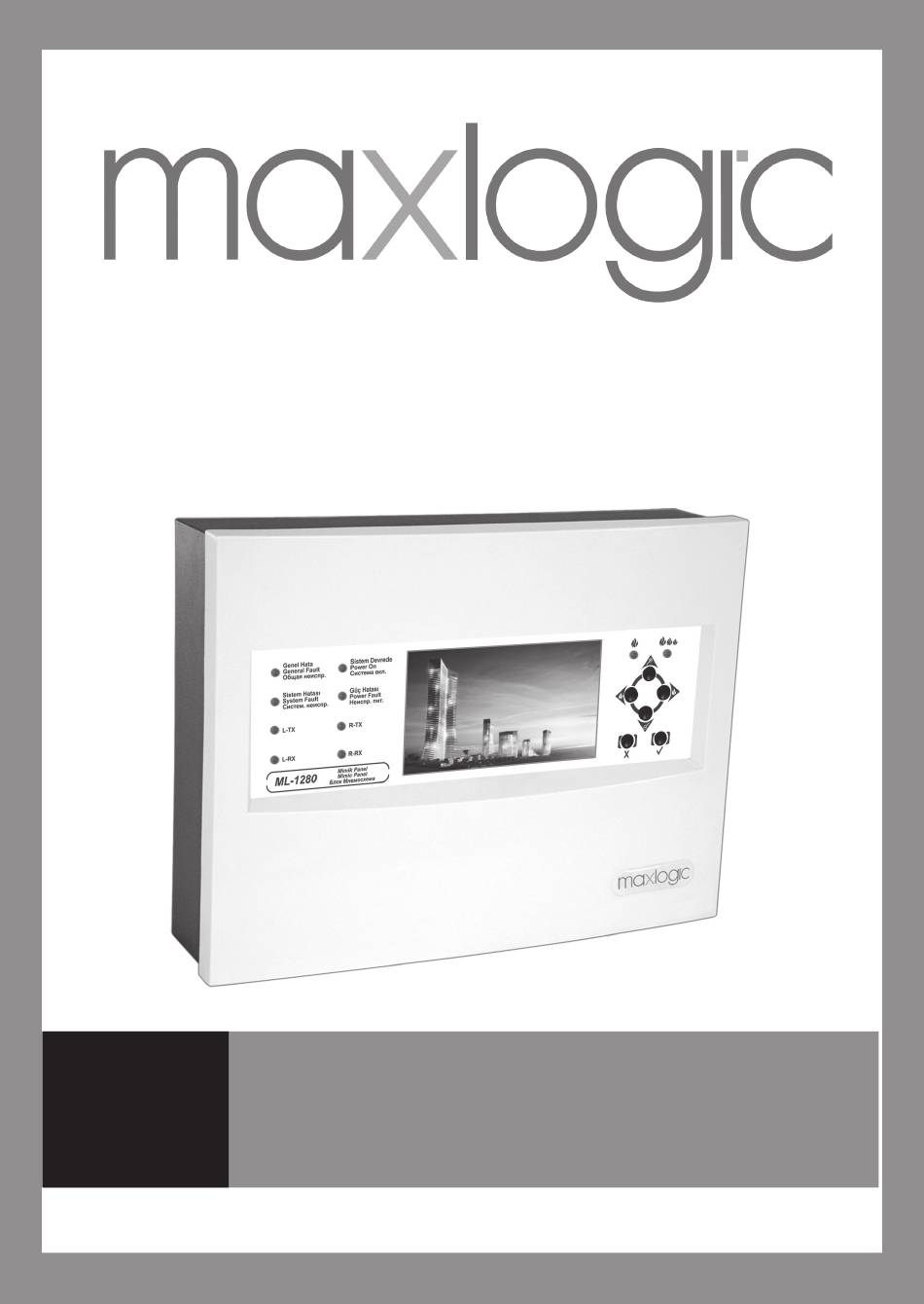

- Page 1 COMMISSIONING, OPERATING AND MAINTENANCE MANUAL MODEL: MAXLOGIC SERIES ML-1280 SUB MODEL: INTELLIGENT ADDRESSABLE SYSTEM 7” TFT MIMIC PANEL...
-
Page 2: Table Of Contents
Battery Capacity Calculations Panel Connection and Dipswitch Settings System Fault Condition User Controls And Functions Engineering Controls And Functions Periodic Maintanence ANNEX-1 Menu Structure ANNEX-2 Mechanical - External Condition and Electrical Definitions KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 2/18... -
Page 3: Introduction
Mimic repeater panel is integrated to other panels via network module. If there is any device in alarm, related panel send fire alarm to network. ML-1280 Mimic panel shows the fire information on Panel that loop and device information is taken from network. -
Page 4: Warning Signs
SIGNS USED ON THE DEVICE Sıgn Description Dangerous Voltage 230V AC Rated Voltage Protective Earth Attention! Static Safeguarded Work Area Two units 12V 7Ah battery required 250V, 2A fuse should be used. 250V, 2A KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 4/18... -
Page 5: General Description
The supply cable of the module must be fireproof and 3x2,5 NYM or 3x2,5 NYA type. 4. GENERAL DESCRIPTION ML-1280 Mimic Panel is designed to use with Maxlogic series panels. Mimic panel can be connected to network as repeater. This provides to monitor graphically the fire events on map configuration. -
Page 6: Functional Description
7. ML-1280 mimic panel connection should be done according to Page 8 Figure 5 to other panels. Up to 63 ML-1280 Mimic Panel can be used with together. Address should be assigned to each ML-1280 Mimic Panel. Mimic manager program should be used to address the panel. -
Page 7: Main Card Features
6. ML-1280 Mimic Panel menu “Reset, Alarm, Alarm Silence” control button operation should be checked. 7. From ML-1280 Mimic Panel menu “Date time setting” date/time information should be checked. If there is any fault in date/time, setting should be done. -
Page 8: Power Supply And Connection
MSMS3 POWER SUPPLY BATTERY OUTPUT 24V DC 24V DC Figure 4 - ML-1280 Mimic Panel Power Supply Connection ML-1280 Mimic Panel power supply connection as follows Connection number Description 27V AC 50Hz Input 24V DC Battery input 24V DC Output... -
Page 9: Compatible Devices List
10. COMPATIBLE DEVICE LIST ML-1280 Mimic Panel compatible devices list as follows: Product Code Description ML-123X Series Panel Maxlogic fire alarm panel, up to 8 loop ML-124X Series Panel Maxlogic fire alarm panel, up to 8 loop ML-125X Series Panel... -
Page 10: System Fault Condition
13. SYSTEM FAULT CONDITION If there is any internal fault to block main microprocessor operation, system fault LED lights on front of the ML-1280 mimic panel. In this case ML-1280 doesn’t operate properly. In this case authorized technical person should repair the system. - Page 11 ML-1280 Mimic panel date/time settings are done with the help of this menu. 14.5 How to monitor the device in alarm information? If there is any alarm event from any device, this device is monitored automatically on the screen. This device is selected and below information of the device are monitored: •...
-
Page 12: Engineering Controls And Functions
Upload the main map, is selected from the maps area.Below warning message is monitored. Desired map is selected as main map by pressing the OK button. Other maps are installed individually from this area. Figure 9 - Mimic Manager Program main map creating warning KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 12/18... - Page 13 Definitions between maps, are defined with shortcuts. g) Connection that between the maps, is controlled from fault filtering area. h) If there is no fault in filtering the fault, Program/program the configuration option is pressed. KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 13/18...
- Page 14 After the below window open, Ok button is pushed then SD card is selected and finally configuration is installed.Below window shows that there is no fault on map configuration. Figure 13 - Installing the configuration to the SD card KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 14/18...
-
Page 15: Periodic Maintanence
Max. depth for each map Table 6 - ML-1280 Mimic Panel Limits 16. PERIODICAL MAINTANENCE Ml-1280 panels need periodical maintanence. Below controls should be done while periodical maintanence 1. Power Supply Controls a. Power supply output voltage should be checked. -
Page 16: Annex-1 Menu Structure
UPDATED DATE TIME DATE TIME SETTING BACK SAVE PREVIOUS TEXT MENU RESET (IN CASE OF FIRE) SILENCE ALARM ALARM PREVIOUS FIRE SHOW ON MAP NEXT FIRE Figure 15 - ML-1280 Mimic Panel Menu Structure KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 16/18... -
Page 17: Annex-2 Mechanical - External Condition And Electrical Definitions
Table 7 - ML-1280 Mimic Panel Mechanical features ML-1280 Mimic Panel Operating Conditions Operating temperature range (-5°C) - (+50°C) Operating humidity range %0-95 (non-condensing) Table 8 - ML-1280 Mimic Panel Operating Environment Condition ML-1280 Mimic Panel Power Description Operating voltage 230V AC Cable Type 3x2,5 N2XH... - Page 18 ANNEX 3 - DIMENSIONS AND MOUNTING POINTS 400mm 100mm 205mm 195mm 195mm KK-641.035 Rev.No:6 08.06.21 ML-1280 User Manual Page 18/18...
