ISYGLT DALI-16B-2X-IP Technical Data/Instruction Manual

Dali module with 2 dali lines and ethernet interfaces
Hide thumbs

Advertisement

Table of Contents

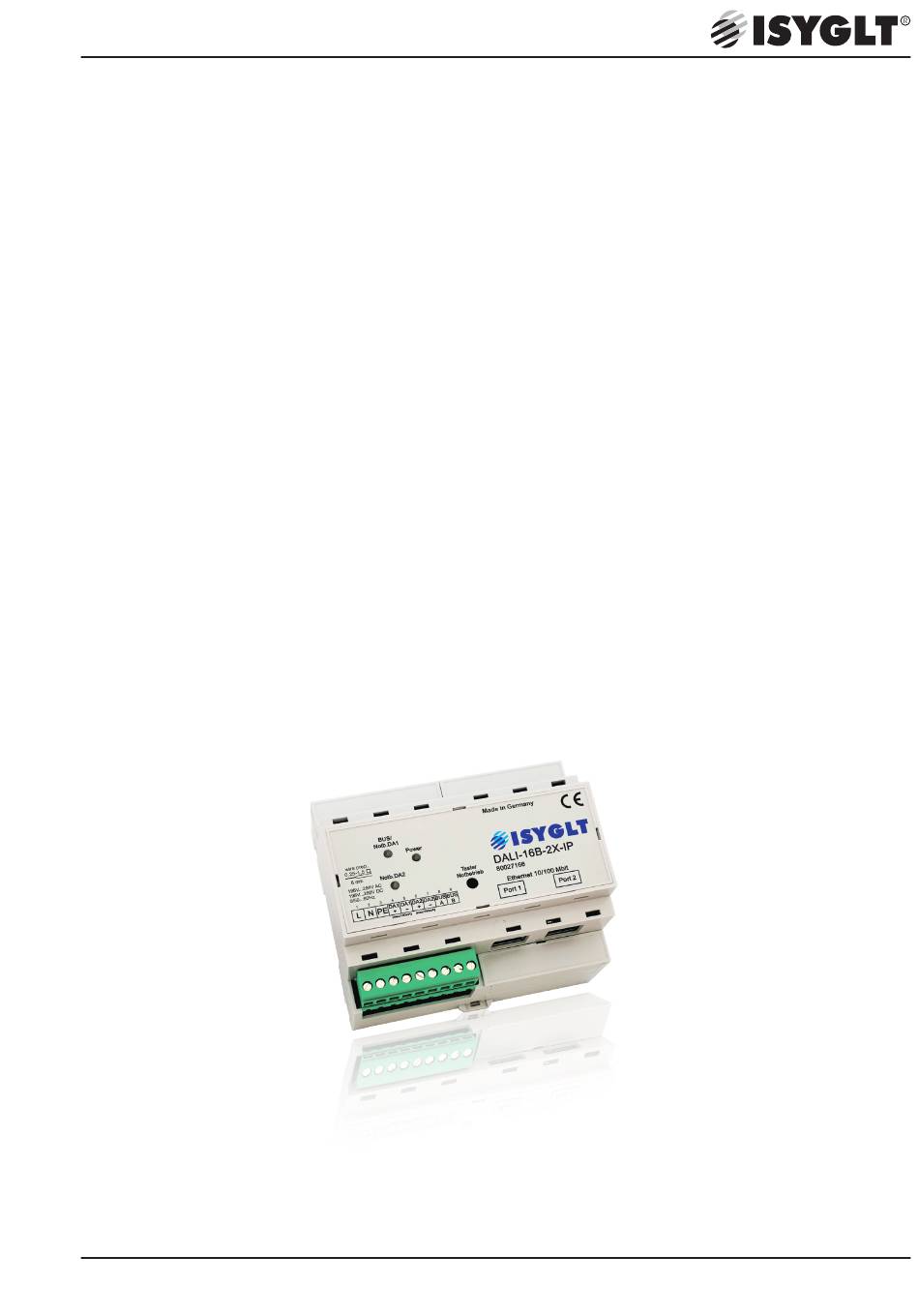

Technical Data / Instruction Manual
DALI-16B-2X-IP
Article no. 80027166
DALI module with 2 DALI lines and Ethernet interfaces
1
Seebacher GmbH
Tel.: +49 8021 50434-0
www.seebacher.de
Brunnenweg 33, 83666 Waakirchen
info@seebacher.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALI-16B-2X-IP and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT DALI-16B-2X-IP

Summary of Contents for ISYGLT DALI-16B-2X-IP

  • Page 1 Technical Data / Instruction Manual DALI-16B-2X-IP Article no. 80027166 DALI module with 2 DALI lines and Ethernet interfaces Seebacher GmbH Tel.: +49 8021 50434-0 www.seebacher.de Brunnenweg 33, 83666 Waakirchen info@seebacher.de...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for 1.1.

  • Page 3: Safety Instructions

    Only use original spare parts and additio- type. For applications with a higher required IP protection type, nal equipment from the manufacturer. the ISYGLT module must be installed in a housing or a cabinet 2.7. Liability notes with a higher IP protection type.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.

  • Page 5: Product Description

    The module is equipped with its own mains supply. This enables a freely configurable emergency function for the corresponding DALI BUS. All DALI output devices are completely integrated into the possibilities of the ISYGLT system by our concept. In this way, the full range of functions of the ISYGLT system is available.

  • Page 6: 10. Technical Data

    • Plastic housing light grey, snap-on on 35mm DIN rail 6 HP DIP switch • 8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located under the cover of the module. Special function DIP switch 1 - S1 OFF: Normal operation...

  • Page 7: 11. Wiring Diagram

    View 11. Wiring diagram 230V 50Hz +24V BUS-A BUS-B 230V ! 1 2 3 4 5 6 7 8 BUS dress ISYGLT-DALI-16B-2X-IP Art. .: 80027166 RJ45 RJ45 DSI BUS o DSI BUS o DALI BUS DALI BUS EG EG  ! Max.
