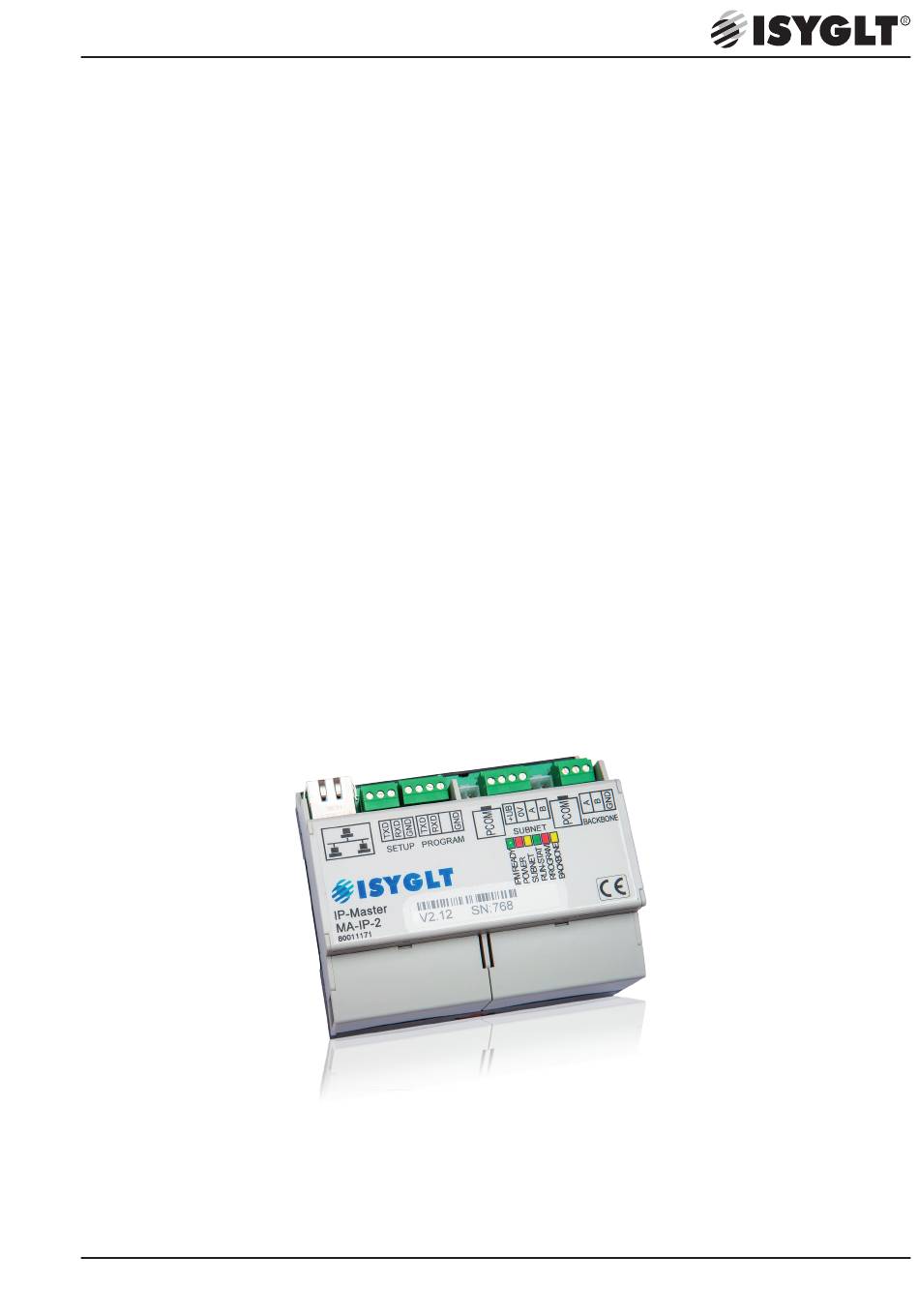

Technical Data / Instruction Manual
MA-IP-2
Article no. 80011171

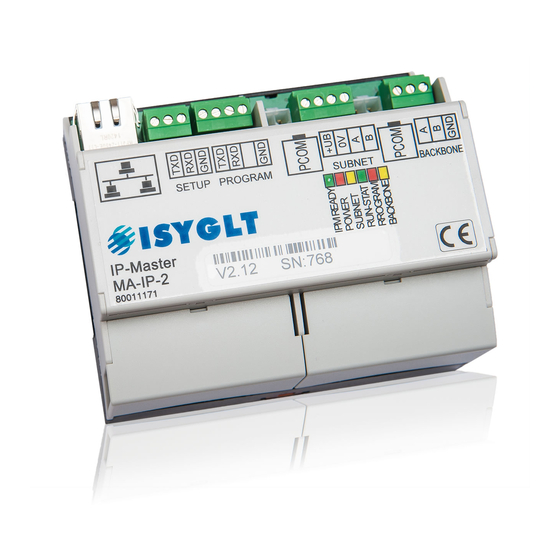

IP Master Module with Ethernet interface
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-IP-2 and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT MA-IP-2

Summary of Contents for ISYGLT MA-IP-2

  • Page 1 Technical Data / Instruction Manual MA-IP-2 Article no. 80011171 IP Master Module with Ethernet interface Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.

  • Page 3: Safety Instructions

    Protect module from humidity • and configuration of the ISYGLT module may only be carried out by trained staff. In addition to these safety instructions, you must also observe the special safety instructions listed in the individual chapters for Observe the electrical installation regulations of the country in which the individual acts.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.

  • Page 5: Product Description

    The serial interface „Backbone“ is used for data exchange between several Masters. Possible time sources: • Internal clock (not temperature compensated; the ISYGLT system clock and DCF-77 radio clock have higher accuracy) • ISYGLT DCF-77 • ISYGLT System clock •...
  • Page 6 Sample views SmartPhone (iPhone) Sample views of the Java visualization Function displays The LEDs are located between the SUBNET connector and the housing. • 1 green LED „IPM READY“ lights up to indicate that the IP functions are ready for operation. •...

  • Page 7: 10. Technical Data

    RS-485 for the ISYGLT subnet BUS for communication with modules Interface PROGRAM RS-232 programming interface for connection of PC / modem Interface BACKBONE RS-485 potential-free for the ISYGLT Backbone BUS for networking several Master modules Interface SETUP RS-232 for IP Master setup Interface RJ45...
  • Page 8 BUS and operating voltage View 107.6mm 60.7mm SETUP PROGRAM SUBNET BACKBONE ISYGLT IP-Master MA-IP-2 80011171 Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
  • Page 9 11. Wiring diagram Wiring diagram subnet L-St.(230V/50Hz) N-St. +24V BUS-A BUS-B Ethernet RJ45 SUBNET MA-IP-2 ISYGLT-Power supply ISYGLT-Master module 90-260V 50/60Hz / 24V 2,5A Art. no.: 80011171 Art. no.: 80030025 PROGRAM BACKBONE SETUP Programming interface Misprints and technical changes reserved.
