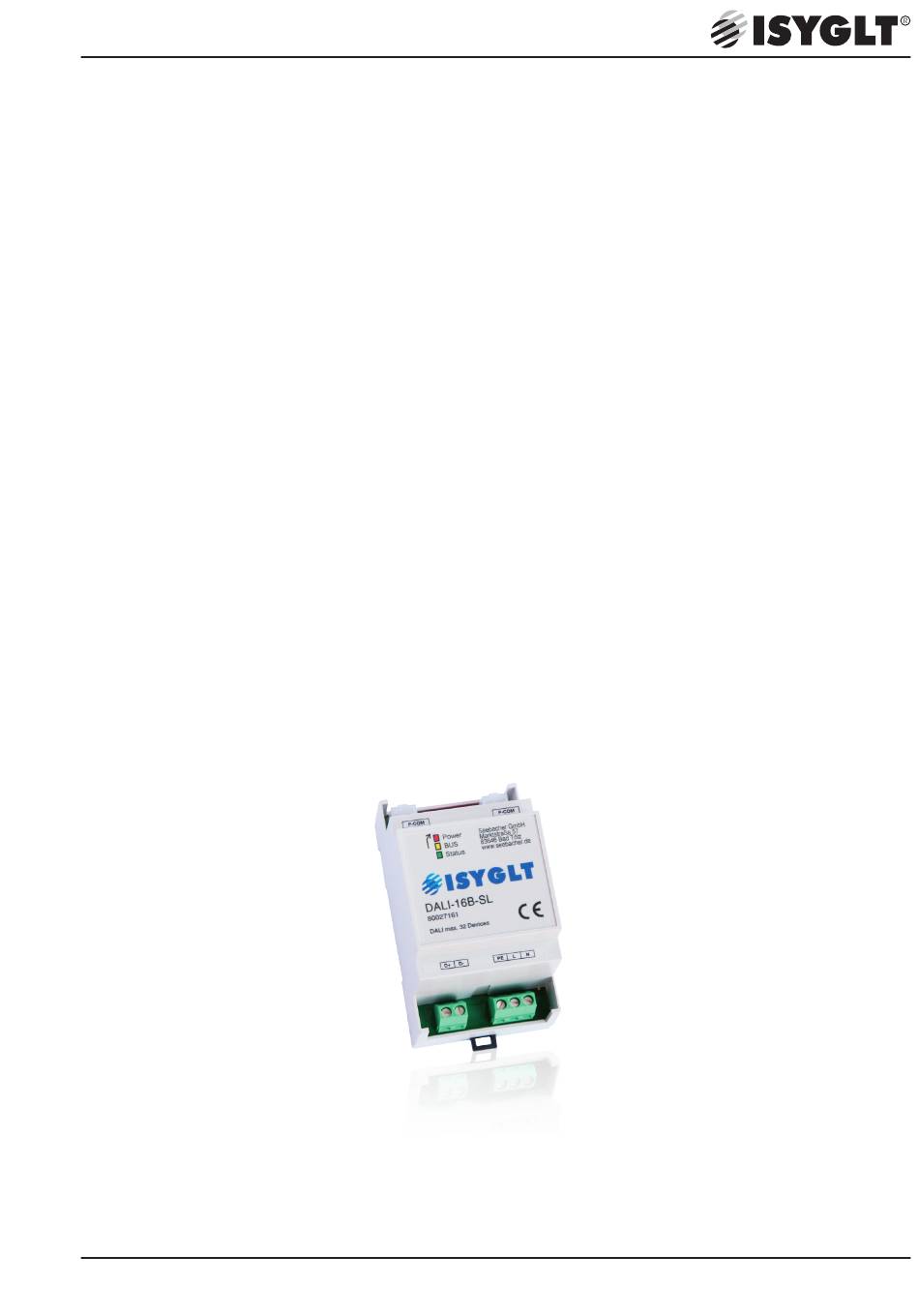

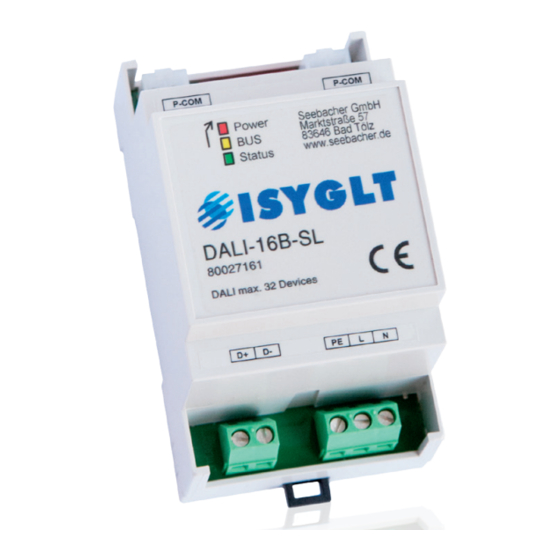

- Page 1 Technical Data / Instruction Manual DALI-16B-SL Article no. 80027161 DALI module slim-line for controlling DALI lights Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 2 These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.
- Page 3 Protect module from humidity • and configuration of the ISYGLT module may only be carried out by trained staff. In addition to these safety instructions, you must also observe the special safety instructions listed in the individual chapters for Observe the electrical installation regulations of the country in which the individual acts.
- Page 4 These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.
- Page 5 DALI BUS. Each of these 32 DALI devices (ECGs or electronic transformers) must be programmed with a unique device address (DALI short address). Each device address can be assigned one of 4, 8, 12 or 16 ISYGLT dimming groups in up to 3 configurations (setups) by parameterizing the DALI-16B-SL module.
- Page 6 • grouping of the individual ECGs • 3 configurations can be stored • determination of the switch-on behaviour • crossfade times • emergency operation in case of BUS failure DALI and ISYGLT 10. Technical Data Type designation DALI-16B-SL Article no.
- Page 7 10.1. Pin assignment 2-pole plug (left) 3-pole plug (right) DALI+ DALI BUS + Protective conductor DALI- DALI BUS - Mains voltage 230V (50-60Hz) Neutral conductor View Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 8 11. Wiring diagram 230V 50Hz 230V ! 1 2 3 4 5 6 7 8 BUS address ISYGLT-DALI-16B-SL Article no. 80027161 DALI max. 32 Devices DALI-BUS 230V 50Hz DALI ECG no. 1...32 Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz...
