Technical Data / Instruction Manual
DALI-08B-DT8-SL
Article no. 80027162
DALI module slim-line for controlling DALI lights
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALI-08B-DT8-SL and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT DALI-08B-DT8-SL

Summary of Contents for ISYGLT DALI-08B-DT8-SL

  • Page 1 Technical Data / Instruction Manual DALI-08B-DT8-SL Article no. 80027162 DALI module slim-line for controlling DALI lights Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for 1.1.

  • Page 3: Safety Instructions

    Only use original spare parts and additio- type. For applications with a higher required IP protection type, nal equipment from the manufacturer. the ISYGLT module must be installed in a housing or a cabinet 2.7. Liability notes with a higher IP protection type.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.

  • Page 5: Product Description

    ISYGLT system is available. The module assigns 4 module addresses on the BUS. The DALI devices are monitored for lamp faults or ECG faults. The DALI Failure Level (value in the event of a DALI BUS failure) can be parameterised via the DALI-08B-DT8-SL.

  • Page 6: 10. Technical Data

    • Grouping of the individual ECGs • 3 configurations can be stored • Definition of the switch-on behaviour • Crossfade times • Emergency operation in case of BUS failure DALI and ISYGLT 10. Technical data Type designation DALI-08B-DT8-SL Article no.

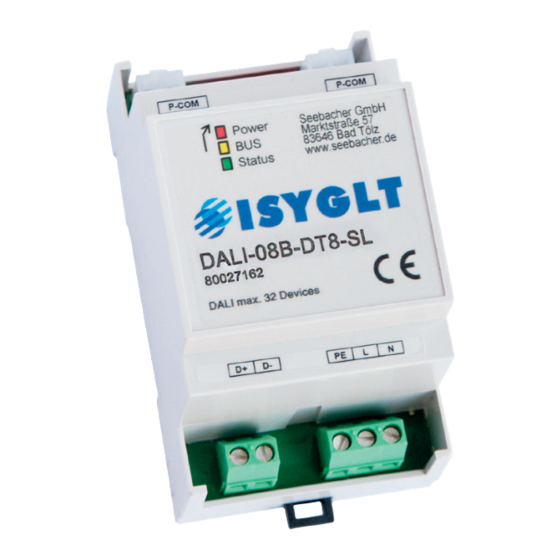

  • Page 7 1 2 3 4 5 6 7 8 P-COM P-COM Seebacher GmbH Power Marktstraße 57 83646 Bad Tölz www.seebacher.de Status DALI-08B-DT8-SL 80027162 DALI max. 32 Devices D+ D- D+ D- Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de...
  • Page 8 230V 50Hz +24V BUS-A BUS-B 230V ! 1 2 3 4 5 6 7 8 S BUS address ISYGLT-DALI-08B-DT8-SL Article no.: 80027162 DALI maximum 32 Devices Continuous voltage ! DALI BUS Mains 230V 50Hz DALI ECG 1...32 Misprints and technical changes reserved.
