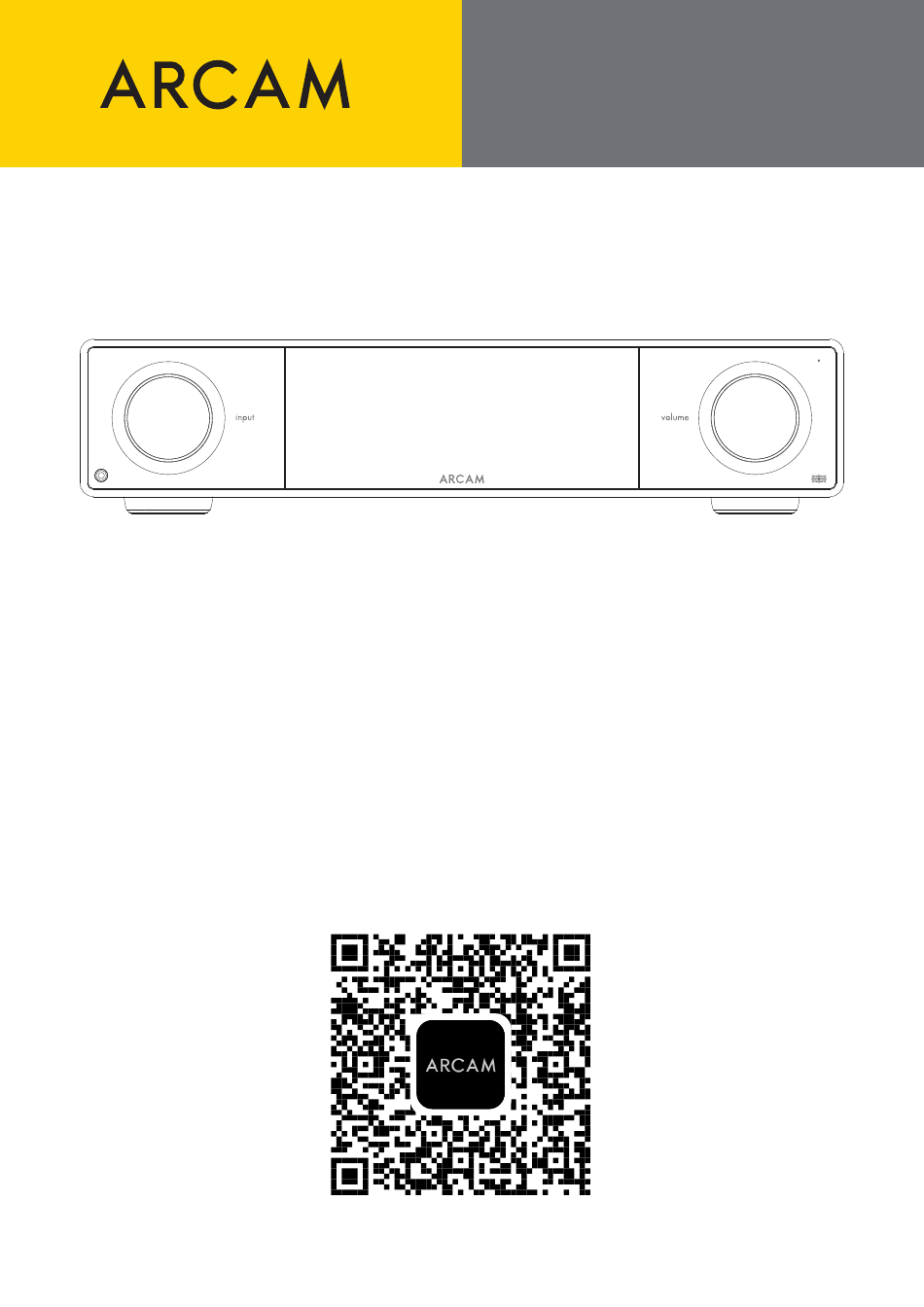

O W N E R ' S M A N U A L
SA35
Owner's Manual
Download the setup app:
© ARCAM SA35 OM EN V2 – Harman International Industries, Incorporated. Features, specifications, and appearance subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arcam SA35

  • Page 1 O W N E R ’ S M A N U A L SA35 Owner’s Manual Download the setup app: © ARCAM SA35 OM EN V2 – Harman International Industries, Incorporated. Features, specifications, and appearance subject to change without notice.
  • Page 2: Important Safety

    ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THIS GUIDE. Visit the product page at ARCAM.co.uk and download the Safety Sheet for a full list of safety instructions. Class II Product This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth (“ground”...
  • Page 3: Table Of Contents

    Placing The SA35 Front Panel Rear Panel Connecting Speakers Connecting a wired Network Wireless Connections Wi-Fi and Bluetooth Remote Control Power Home Screen Inputs Audio Options Dirac Live DAC Filters Settings Menu Streaming Supported Formats Troubleshooting Specifications ARCAM SA35 OM EN V2...
  • Page 4: Package Contents

    This product has user selectable functions related to power consumption. Changing these will change the power consumption of the product when in Standby: By default, the SA35 will enter standby within 20 minutes with no user interaction or playback. This can be disabled in the Menu by setting the ECO Timer to OFF.
  • Page 5: Front And Rear Panels

    IR IN NETWORK CONTROL HDMI eARC BALANCED INPUTS POWER INLET SUB1 AN 4 AN 1 AN 2 AN 3 PHONO PHONO SUB2 (MM) (MC) CLASS 2 WIRING ARCAM SA35 OM EN V2 100-120V/220-240V ~ 50/60Hz 1000W MAX SUB1 SUB2 BALANCED OUTPUTS...
  • Page 6: Connecting Loudspeakers

    Select a source signal, and then slowly increase the volume to a suitable listening level to avoid loud sounds or product damage in the event of incorrect connection. POWER INLET If you are unsure as to how your system should be connected, please contact your ARCAM dealer who will NETWORK CONTROL...
  • Page 7: Bluetooth Operation

    To pair a new set of headphones set your headphones into pairing mode for the SA35 to discover them. The SA35 will pair with the first headphones it discovers that are in pairing mode.
  • Page 8: Remote Control

    Alternative Codes The SA35 and it’s remote control can be configured to use an alternative set of remote control codes when the default codes operate more than one device (such as an ARCAM AVR) which can be inconvenient. The System Code will need to be changed in both the SA35 and the remote control to have the desired effect.
  • Page 9: Power

    Standby Press or rotate the volume deal to bring the SA35 out of standby. Press and hold the volume dial to place the SA35 into standby. Use the standby button at the top of the remote control to toggle standby operation.
  • Page 10: Selecting An Audio Input

    Phono MC Analogue 1 Digital Audio Inputs The SA35 features two coaxial and two optical digital inputs for digital audio sources. The SA35 only supports stereo PCM audio through these inputs. Warning: Multi-channel audio, or encoded audio formats played through these inputs can result in loud noise which can damage the amplifier and your speakers.
  • Page 11: Audio Options

    There are 7 steps to creating room correction filters with Dirac Live: 1. Launch the software, log in with your account, and connect to the SA35. The SA35 will enter Dirac Live measurement mode when you connect to it with the Dirac Live software.
  • Page 12: Dac Filters

    DAC Filters The SA35 has the option to select between a number of digital filters that are used in the digital to analogue conversion process. Digital filters are required to minimise unwanted distortion in the output but no filter is perfect, there are always compromises between a few parameters: 1.
  • Page 13: Streaming

    S T R E A M I N G A N D S U P P O R T E D F O R M A T S Streaming The ARCAM SA35 can be connected to, and play music from the following apps and services: Spotify Connect Tidal Connect...
  • Page 14: Troubleshooting

    Is the SA35 in protection mode (described below)? The SA35 may enter a protection mode if a fault is detected. Following any of the faults described below, the amplifier will turn itself off. To continue using the SA35, the fault must be resolved and the unit must be turned OFF then back ON.
  • Page 15: Specifications

    432 x 344 x 99mm Weight (net) 12 kg Weight (packed) 14 kg Mains lead(s) Remote control with 2 x AAA batteries Measurement Microphone Supplied accessories 5m USB Cable Quick Start Guide Important Safety Instructions ARCAM SA35 OM EN V2...
  • Page 16 EMEA Liaison Office: Danzigerkade 16G 1013 AP Amsterdam, Netherlands UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom © ARCAM SA35 OM EN V2 – Harman International Industries, Incorporated. Features, specifications, and appearance subject to change without notice.
