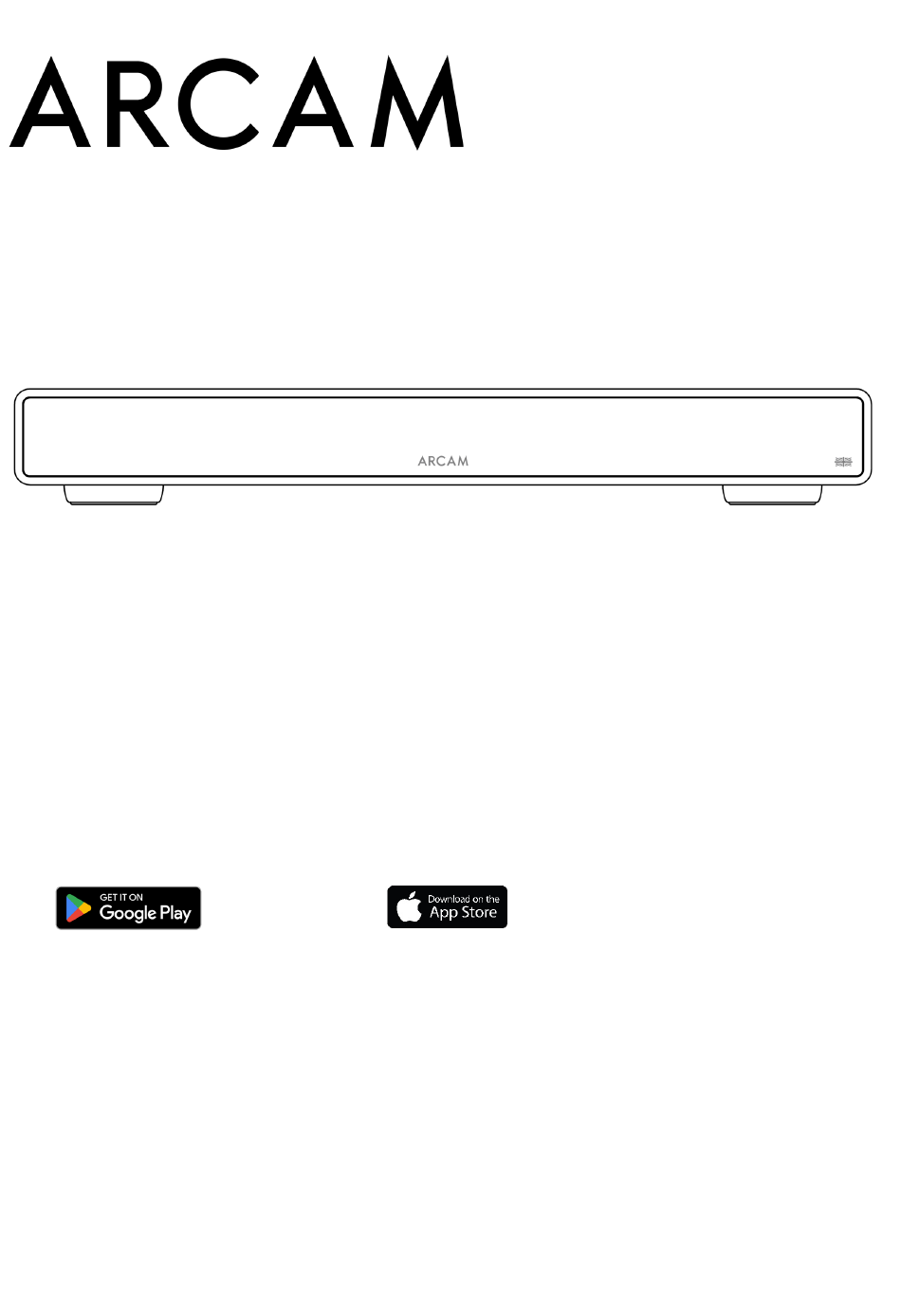

- Page 1 Owner’s Manual Download the setup app: ©ARCAM ST5 Owner's Manual EN – Harman International Industries, Incorporated. Features, specifications, and appearance subject to change without notice.
-
Page 2: Important Safety Instructions
ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THIS GUIDE. Visit the product page at ARCAM.co.uk and download the Safety Sheet for a full list of safety instructions. Class II Product This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth (“ground”... -
Page 3: Table Of Contents
Operation ....................................11 Power ......................................11 Auto Standby ....................................11 Playback ......................................11 USB ......................................11 Menu ......................................12 Menu Tree .....................................12 Supported File Formats ................................12 Troubleshooting ..................................13 Specifications .................................... 13 Trademarks and Licenses ................................15 ARCAM ST5 Owner's Manual EN... -
Page 4: Package Contents
ARCAM has been producing specialist Hi-Fi and home cinema products offering state of the art sound quality for over 45 years. The ARCAM ST5 is the latest in a long line of award-winning digital audio products extending back to our first CD player that we created, the ARCAM Delta 70 in 1986, and the world’s first separate DAC, the Delta Black Box... -
Page 5: Front Panel
Switch on or off Connect either of these supplied Control outputs to a digital Cable to control input on your DAC or an ARCAM Radia amplifier Amplifier USB Socket Connect USB stick for playback of music files ARCAM ST5 Owner's Manual EN... -
Page 6: Remote Control
Preset Selection To select a preset radio station, press the left or right navigation buttons.Press the select button when you see the preset you wish to play. ARCAM ST5 Owner's Manual EN... -
Page 7: Connecting The Streamer
Links are on the front page of this manual. Power on the ARCAM ST5 streamer and open the app to discover it after the ST5 is Ready. Select it and follow the prompts to connect it to your Wi-Fi network. -
Page 8: Analog Audio Connection
If you are unsure as to how your system should be connected, please contact your JBL dealer who will be happy to help you. ARCAM ST5 Owner's Manual EN... -
Page 9: Digital Audio Connection
If you are unsure as to how your system should be connected, please contact your JBL dealer who will be happy to help you. ARCAM ST5 Owner's Manual EN... -
Page 10: Control Connection
Complete the following steps to enable this feature: Ensure power is disconnected from the Streamer and Amplifier. Connect either an analogue or digital audio connection from the output of the ST5 to an input of the ARCAM amplifier. Connect the control cable from the ST5 CONTROL socket to the CONTROL socket on the ARCAM amplifier. -
Page 11: Operation
Insert the USB storage device into the USB socket on the rear panel. Do not use a USB extension cable. The ARCAM ST5 can play music files stored on a USB flash drive. Music files contained within the USB storage can be browsed using the ARCAM Radia app. -
Page 12: Menu
Default is 40. Selects whether the Network Connection is maintained in standby. Network Standby Default is On. When enabled, the ST5 will enter standby after 20 minutes with no user interaction or Eco Timer playback. Default is On. Select a digital filter for the analogue outputs. -
Page 13: Troubleshooting
Jitter RMS < 20 psec General Mains voltage 100–240V, 50/60Hz Maximum power consumption Dimensions in mm (including feet, control knob and 431 W x 57 H x 328 D connectors) Weight (net) 3.5kg Weight (gross) 5.6kg ARCAM ST5 Owner's Manual EN... - Page 14 2400-2483.5 MHz 19.79 dBm 5GHz Wi-Fi band 1 5150-5250 MHz 22.33 dBm 5GHz Wi-Fi band 2 5250-5350 MHz 19.97 dBm 5GHz Wi-Fi band 3 5470-5725 MHz 19.95 dBm 5GHz Wi-Fi band 4 5725-5850 MHz 13.99 dBm ARCAM ST5 Owner's Manual EN...
-
Page 15: Trademarks And Licenses
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ARCAM ST5 Owner's Manual EN... - Page 16 Danzigerkade 16G 1013 AP Amsterdam, Netherlands Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom www.arcam.co.uk © 2023 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
