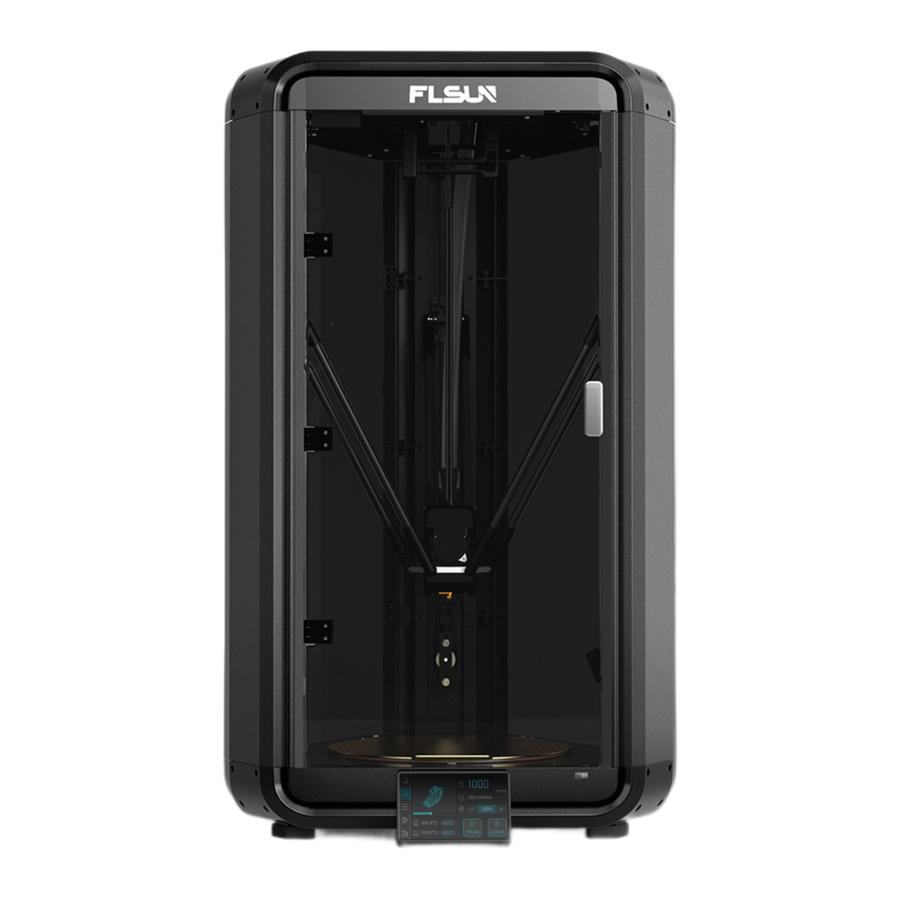

FLSUN T1 Manual

Table of Contents

Contents

FLSUN T1 Manual

Remove the axis X cover plate

Remove the three ST2.9×16 screws on the cover plate on the axis X. Remove the axis X cover plate.

Lift upward and straighten the main wiring and type-c that was removed from the groove of the bottom, and then insert the cables into the corresponding ports on the underside of the upper case respectively. Then put back the axis X cover plate and secure it with ST2.9×16*6 screws.
Take out Cable Holder. Pinch the center snap of the cable holder firmly and push up to organize the main wiring and type-c.

*Please note the display screen orientation. Take out the ⑨Display Screen, gently snap open the black cable clamp upward as shown in the figure on the right. Push the screen cable in the direction shown in the figure. And press down the black cable clamp to fix the display cable (Please be careful not to twist, flip, or fold the screen cable).
Push the display cable into the opening at the rear of the screen, then insert the display back into the display slot and push down to tighten the display.
Display screen installation completed.

Take out the Enclosure Holder and M3×6*8 screws and affix the enclosure holder to the position shown on the axis.
Installation of two enclosure holders completed.

Use M3×6*4 screws to affix the side enclosure and enclosure holder.
Take out the two side enclosures, align the side enclosure with the outer frame, and then toggle the clips on the top and bottom housings to secure the housings.
Take out the front enclosure from the package, tearing off the protective film on the front enclosure. Align the front enclosure with the hinge on the axis X and tighten it with M3×6 screws.

Install the door handle - Step 1

The default input voltage of the printer is 230V, if the voltage in your location is 115V, please manually adjust the power input voltage to 115V before powering on the printer for the first time.
After ensuring that all lines are connected, take out the power cord and plug it into the left side of the printer and turn on the power switch to energize the machine.
*Please note that before plugging in the power cord, please press the power switch to ensure that the power switch is off.

After powering on, follow the instructions on the screen to select the language and click"Start".
Select the network and click "Next".If no connection is needed, click"Skip"; if necessary, re-add the network connection to the screen.
Enter the wifi password and click"Join".
Follow the prompts, click "Next" and the device will perform "Self-inspection".
The self-inspection consists of 4 steps, which are carried out sequentially, and cannot be cancelled once the self-inspection has begun.
Self-inspection completed, click "Confirm".

Insert the filament into the filament holder.
Pull the filament down through the center filament hole until it is inserted into the effector PTFE tube.
Click on " "-" "- " ". When the nozzle heats up to the set temperature, the printer will automatically load the filament.
Wait for the filament to be extruded and then the " load" is finished.
Click on " " and select the model you want to print.
Before starting printing, you can manually select "Vibration compensation", "Bed leveling", and "Timelapse" then click "Print" to start printing.
If the nozzle is too low or too high when printing the first layer, you can click " " during printing to adjust the height of the nozzle and the adjustment will be automatically saved.
