- Page 1 Flsun V400 User Manual Amazing Speed ！ Zhengzhou Chaokuo Electronic Technology Co.,Ltd...
-
Page 2: Table Of Contents
CONTENTS Advance and Guidance....1 3.2 Load the Filament....16 1.Printer........3 3.3 Printing.........18 1.1 Parameter......3 .....18 3.3.1 U Disk Printing 1.2 Introduction......4 ....19 3.3.2 Online Printing 1.3 Packing List......5 ......22 3.3.3 Adjust Z ......5 4.Slicer software......23 1.3.1 Main Parts List ......6 4.1 Add Configuration File..23 1.3.2 Gift Parts List 2. -
Page 3: Advance And Guidance
Advice and Guidance Flsun V400 , Amazing Speed! Advice and Guidance 1.Don't operate the machine in accordance with methods other than those specified in the manual to avoid damage to personal safety and assets. 2.The default power input voltage of the printer is 230V. If the local voltage is 115V, make sure to switch the input voltage before starting the printer. - Page 4 10.If you don't use the printer for a long time, please unplug the power cord to ensure safe use of electricity. 11.Flsun V400 don't use other printer's configuration files for slicing, which will affect the printer and print quality. 12. To avoid damage to printer and property,don't misuse printer. Printer has beed designed for it's intended purpose only .
-
Page 5: Printer
Printer Flsun V400 , Amazing Speed! 1.1 Parameter Model Flsun V400 Printing Size Φ300*410mm（Highest Point） Molding Tech Nozzle Diameter 0.4mm Layer Height 0.05-0.3mm Precision ±0.15mm Nozzle Type Single Nozzle Environment Temperature 5-40℃ Nozzle Temperature ≤300℃ Hotbed Temperature ≤110℃ Filament Support... -
Page 6: Introduction

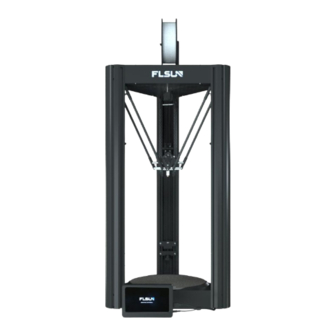

Printer Flsun V400 , Amazing Speed! 1.2 Introduction ②Parallel Arm ③Extruder Cover ④Belt Adjustment Nut ①Axis ⑤Pad ⑥Filament Holder ⑦Top Shell ⑨Nozzle Kit ⑧Slider ⑩PEI ⑪Bottom Shell ⑫Pad power cable ⑬Filament Detector ⑮Liner Guide Rail ⑭LED ⑯Change Voltage ⑰Direct Drive ⑱Air Guide Nozzle... -
Page 7: Packing List
Printer Flsun V400 , Amazing Speed! 1.3 Packing List 1.3.1 Main Part Top Shell Axis Effector Module Parallel Arms Bottom Shell Filament Leveling Switch Filament Holder Power Line Detection sensor... -
Page 8: Gift Parts List
Printer Flsun V400 , Amazing Speed! 1.3.2 Gift Parts List Screwdriver Wrench Set Thermistor Diagonal Pliers U disk Heating Rod Clean Needle PTFE Tube Screws Grease Brush 200g Filament... -
Page 9: Assembly Instructions
Note the one-to-one Assembly Instructions correspondence between motor Flsun V400 , Amazing Speed! motor lines X, Y and Z Plug the motor cable before putting the motor into the Take out shells and place them vertically on the top shell. Install the 8*M5 screws on both ends of the desktop.The two logos face the same direction. - Page 10 Assembly Instructions Flsun V400 , Amazing Speed! Take out the filament detection sensor, connect the Install the effector module with the extruder hood facing filament detector wire. Snap the bellows into the bracket forward. Plug the cable into the top shell adapter board, the slot.
- Page 11 Assembly Instructions Flsun V400 , Amazing Speed! Take out the filament holder and two M4*8 Install the filament holder on the top of the printer, screws and assemble it. paying attention to the installation direction. Install 3 axis covers. Connect the two cables to Pad, and the installation...
-
Page 12: First Printing
First Printing Flsun V400 , Amazing Speed! The default input voltage of the printer is 230V. Please make sure the printer is convert to your local voltage before turning on the power switch for the first time. If you local voltage is 115V,flip the red switch to the... -
Page 13: Bed Leveling
First Printing Flsun V400 , Amazing Speed! 3.1 Bed Leveling Take out the leveling switch. Install the leveling switch according Insert the leveling switch into the to the direction on the photo. adapter board of the top shell. - Page 14 First Printing Flsun V400 , Amazing Speed! 1. Click "Configuration>Bed Level>Calibration>Continue",please confirm to insert the leveling module before leveling. After the first leveling is completed, the printer will restart and display the homepage.Data is automatically saved. Please make sure the leveling switch...
- Page 15 First Printing Flsun V400 , Amazing Speed! 2. Then click "Configuration>Bed Level>Bed mesh>Continue" for bed mesh.Data is automatically saved. Please make sure the leveling switch is connected!
- Page 16 First Printing Flsun V400 , Amazing Speed! 3. Remove the leveling switch and disconnect the connector after bed mesh leveling fished.Click "Move Z0>Continue". Make sure the leveling switch is removed!
- Page 17 First Printing Flsun V400 , Amazing Speed! 4.Take a piece of A4 paper and place it under the nozzle, click "Z calibration".Use "Z+" or "Z-" to adjust the nozzle height. There is slight friction when pushing and pulling the A4 paper slowly. At this time, the distance between the nozzle and the hot bed is...
-
Page 18: Load The Filament
First Printing Flsun V400 , Amazing Speed! 3.2 Load the Filament After replacing different types of filament, please extrude an additional 1 meter of filament to completely extrude the remaining filament to reduce the probability of nozzle being clogged. 1.Use diagonal pliers to cut the 2.Pass the filament through... - Page 19 First Printing Flsun V400 , Amazing Speed! 4. Click "Actions>Extrude>Temperature" on the screen, set the nozzle temperature above 180°C, and return to the "Extrude" interface. Push the filament down while clicking "Extrude or Load " to load the filament.
-
Page 20: U Disk Printing
First Printing Flsun V400 , Amazing Speed! 3.3 Print 3.3.1 U Disk Printing Save the G-code to a U disk, and insert the U disk into the USB port of the Pad.Click the refresh button and select the model to print. -
Page 21: Online Printing
First Printing Flsun V400 , Amazing Speed! 3.3.2 Online Printing Select the appropriate wifi, and an IP address will be generated after connection. Enter the IP address into the web browser 1.Make sure pad wifi and PC share the same router. - Page 22 First Printing Flsun V400 , Amazing Speed! Save the UFP or G-code file to the computer, upload files to the printer via web. UFP file preview model image.
- Page 23 First Printing Flsun V400 , Amazing Speed! Right-click on the file and click "Start Printing".
-
Page 24: Adjust Z
First Printing Flsun V400 , Amazing Speed! 3.3.3 Z Calibrate If the nozzle is too low or too high when printing the first layer, you can click "Fine Turning" during printing to adjust the height of the nozzle and the adjustment will be automatically saved. -
Page 25: Slicer Software
The recommended slicing software for Flsun V400 is Cura. If you don't have Cura on your computer, you can install the Cura software on the U disk. If you already have Cura, you can add the configuration file of Flsun V400 as follows. The "Configuration File"... - Page 26 Slicing software Flsun V400 , Amazing Speed! ④ ⑥ ⑤ Select and open the Flsun V400 configuration file. Click "OK"!
- Page 27 Slicing software Flsun V400 , Amazing Speed! ⑧ ⑨ ⑩ ⑦ Click "Flsun V400>Activate". Click "printers>Machine Settings".
- Page 28 Slicing software Flsun V400 , Amazing Speed! Set the printer parameters X/Y/ Z to 300/300/410mm. And replace the start G code and end G code, G-code on U disk. ⑪ ⑫...
-
Page 29: Faq
Flsun V400 , Amazing Speed! Q1. The model can’t stick to the hot bed Solution 1: The nozzle is too far from the heated bed, you can re-do the automatic leveling or continue to adjust the distance between the nozzle and the heated bed after printing starts, until the first layer can be well pasted on the heated bed. - Page 30 Flsun V400 , Amazing Speed! Q5. Extruder abnormality Solution 1: There is abnormal noise in the extruder, check whether the coaxial wire feeding wheel of the plastic wheel is loose (the two wheels rotate out of sync). Tighten the top screw with a hexagonal wrench; turn the wire feed wheel at the handle, if there is a noticeable stuck feeling when turning, the pin shaft kit needs to be replaced.
-
Page 31: Mainboard Wiring Diagram
Mainboard wiring diagram Flsun V400 , Amazing Speed! Drive block Cooling fan X Motor Y Motor Z Motor E0 Motor Drive blocks Screen power X limit switch Y limit switch 4510 Turbe fan LOGO Leveling switch 4010 Cooling fan Z limit switch... -
Page 32: Maintenance
Maintenance Flsun V400 , Amazing Speed! Use water or alcohol to clean the PEI before every print.If there is dust or remaining filaments on the PEI ,the print will not stick to the PEI well. Apply grease to the contact between the parallel arm and the wide...
