FLSUN S1 Manual

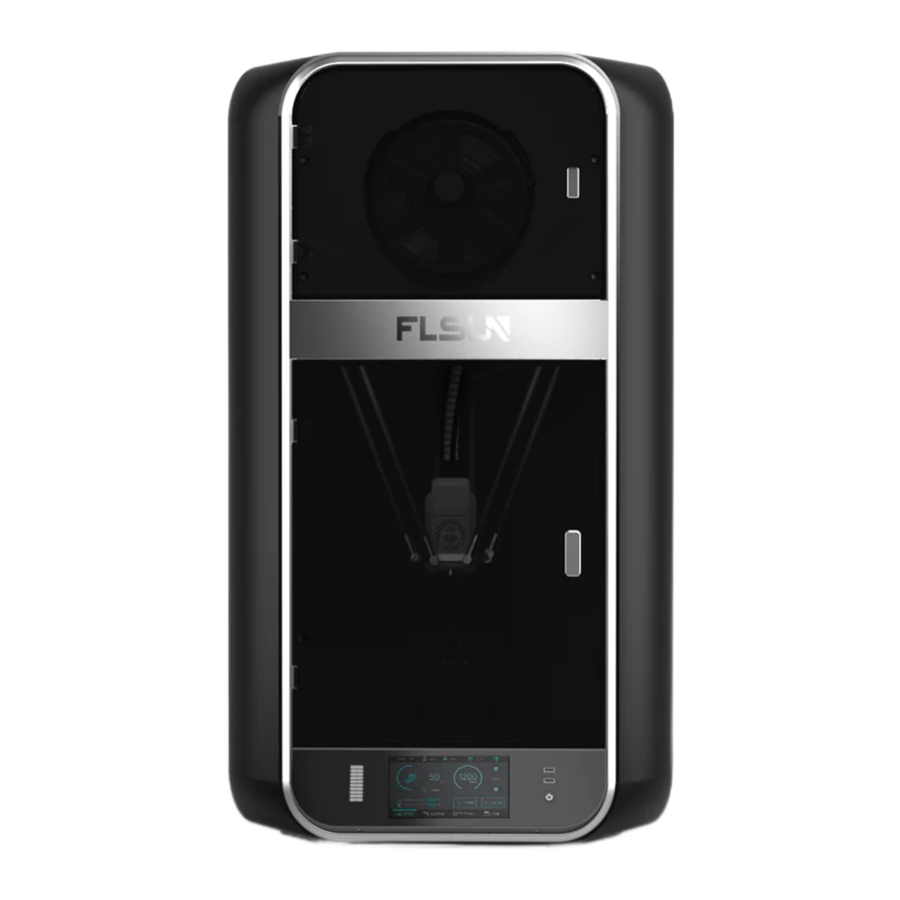

Component Introduction

Packing List

Accessory Box Packing List

Unboxing

Remove the tape securing the glass door and the wiring harness. Remove glass door;
Remove the glass door from the packing bag;
Use M3X6 screws to attach the two hinges to the X axis as shown;
Fix the glass door using the screws M3*6 (with Silicone Plugs) in the accessory box; *Gently tighten the screws
Remove the clips from the three belts to unlock the sliders.

Screen Installation

Remove the tape securing the wiring harness and plug the display power cable and the three data cables into the corresponding connection ports; *The three USB cables are connected by the number.
Insert the screen horizontally into the printer slot;
Secure the top of the screen using the M3*6 screws included in the accessory box;
Secure the underside of the screen using the M3*12 screws included in the accessory box.

Connect And Power On

Connect the power cord to the right side of the printer. Press the power switch. The switch will light indicating it is in standby mode.
Press the power on/off button to turn on the printer. *In case of an emergency while the printer is operating, press and hold the on/off button for 1.5 seconds to stop the printer. If you turn off the power first, the printer will activate the UPS, delay power outage, and the printer will continue to run briefly.

Language Settings

Please click " ";
Please select the language and start using the printer.

WiFi Settings

Please click " " to select the wireless network, you want to connect to;
Unable to click "Next" during setup of network connection;
Enter WiFi password;
Click "Join" to connect to the network;
After the printer successfully connects to the network click "Next" to start the printer calibration.
If the connection fails, click "Confirm" to attempt to reconnect to a new connection.

Calibrations

Click "Start " and the printer will complete the calibration in sequence;
During calibration, the "Back" and "Start" buttons are locked and cannot be clicked, so please be patient and wait until calibration is complete;
Vibration and noise are normal during calibration;
You will be prompted on screen when the calibration process is complete. Click "Confirm." That is it, you have now successfully completed the printers first calibration!

Loading Filament

Push one end of the filament into the feed tube on the right side of the filament dryer box, passing through the filament detector and filament clogging detector, and push the filament down into the effector until the filament cannot move forward; *The filament spool rotation is clockwise.
Install the filament into the filament holder;
Click on "Control" - "Filament" - "Load";
Wait for the temperature to rise to 240°C;
The extruder is loading the filament until the filament is extruded from the nozzle.

First Printing

Apply a layer of glue stick to the PEI sheet;
Click on "Print" and select the model you want to print;
Click "Print" to start printing. *Functions can be manually enabled based on your printing requirements.
If the nozzle is too low or too high when printing the first layer, you can click " " during printing to adjust the height of the nozzle and the adjustment will be automatically saved.

Customer Support

Please go to flsun official website to download Flsun Slicer: Official website: https://flsund.com
Please visit the official Flsun Wiki for more information on machine use, maintenance and FAQs: http://wiki.flsund.com/en/home
By scanning the QR code you can choose any channel to get the latest product updates and related news.

If you need additional assistance, please feel free to contact us:
After-sales e-mail: service@flsund.com

Advice And Guidance

Do not operate the machine according to methods other than those specified in the manual to avoid possible injury or property damage.
Do not place the printer near flammable, explosive or high heat sources, make sure that the printer is in a cool, dust free and well ventilated area.
Be careful touching the print bed, print nozzle, or other high temperature areas during or soon after use to avoid severe burns.
Do you reach inside the print area while the machine is in use to avoid injury from high speed movements.
Do not allow children or persons who have not read the instructions in detail to operate it alone to avoid personal injury or property damage.
Routine maintenance should be performed on the printer to ensure a long service life. The printer should be powered off before maintenance is performed, especially important on working parts such as the effector module and guide rails.
In case of an emergency during printing, press and hold the on/off button for. seconds to stop the printer, and then turn off the power.
If the printer is not going to be used for and extended period of time unplug the power cord.
Each printer is thoroughly tested before leaving the factory to ensure quality and functionality. It is normal to find evidence of prior use.
Visit the official Flsun Wiki for more tutorials on machine use and maintenance: http://wiki.flsund.com/en/home.
