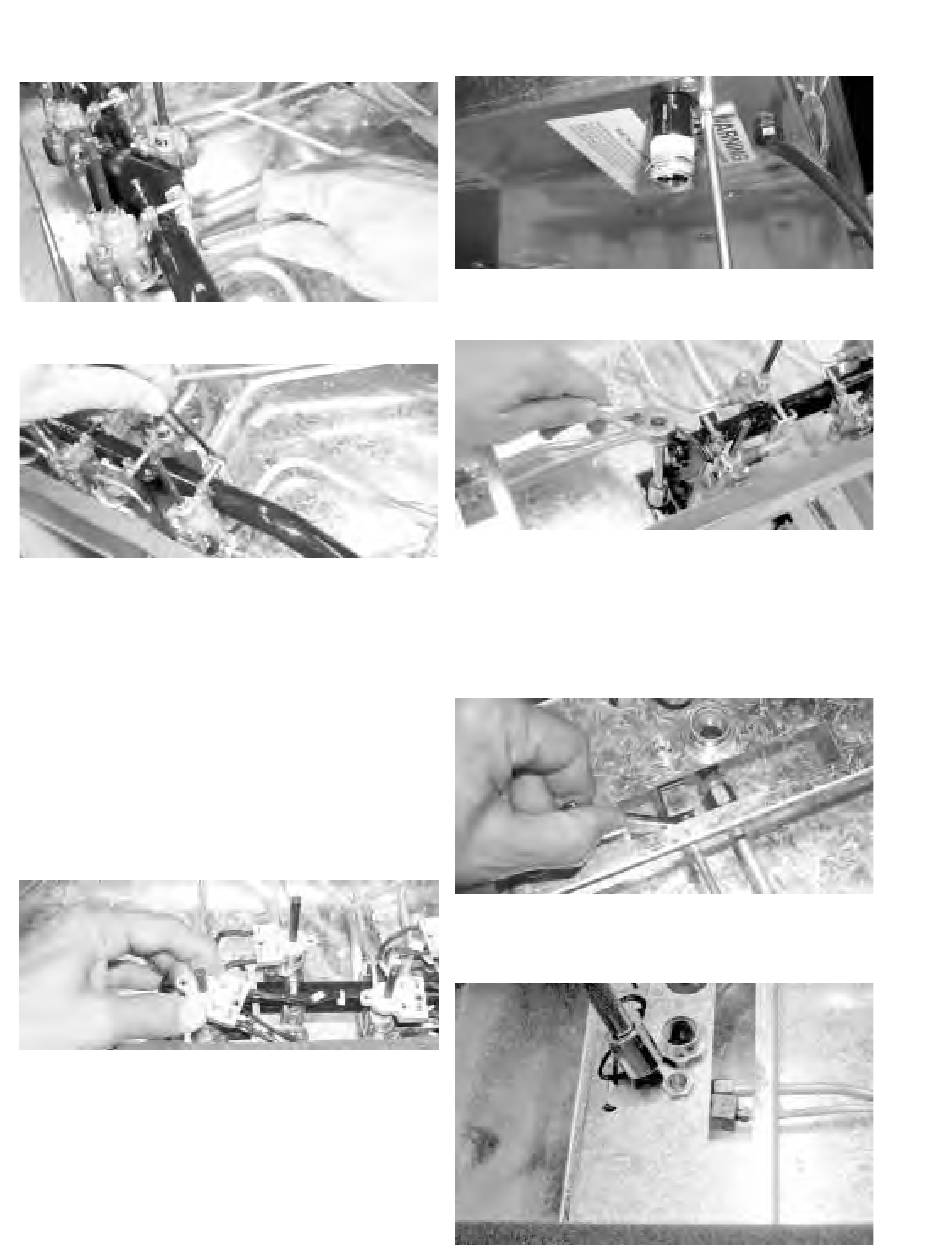

5. Remove the 9/16-in. nut on the gas line to the
main jet holder and remove the gas line.
6. Remove two 5/16-in. nuts and the valve.
7. To reinstall the valve, make sure the valve is
seated on the manifold and the valve stem is
vertical.
Manifold Removal
1. Remove the maintop (see
2. Remove the C-clips holding the igniter switches
to the valve stems.
3. Lift the igniter switches off the valve stems.
(Note the color and positions of the switches.)
4. Remove the valves (see
5. Remove the gas fitting located under the
counter from the manifold.
).
Maintop Removal
l ).
Valve Remova
– 14 –
6. From under the counter, remove 2 screws at
the manifold.
7. Remove two 7/16-in. screws and the manifold.
Simmer Jet Holder Removal
1. Remove the maintop (see
2. Remove the 5/16-in. nut on the gas line.
3. Remove the 5/8-in. nut on the jet holder and
remove the jet holder.
).
Maintop Removal
