Locator Pin
Locator Pin
Pin
Slot
NOTE: Locator pin fits
into burner base pin slot.
-

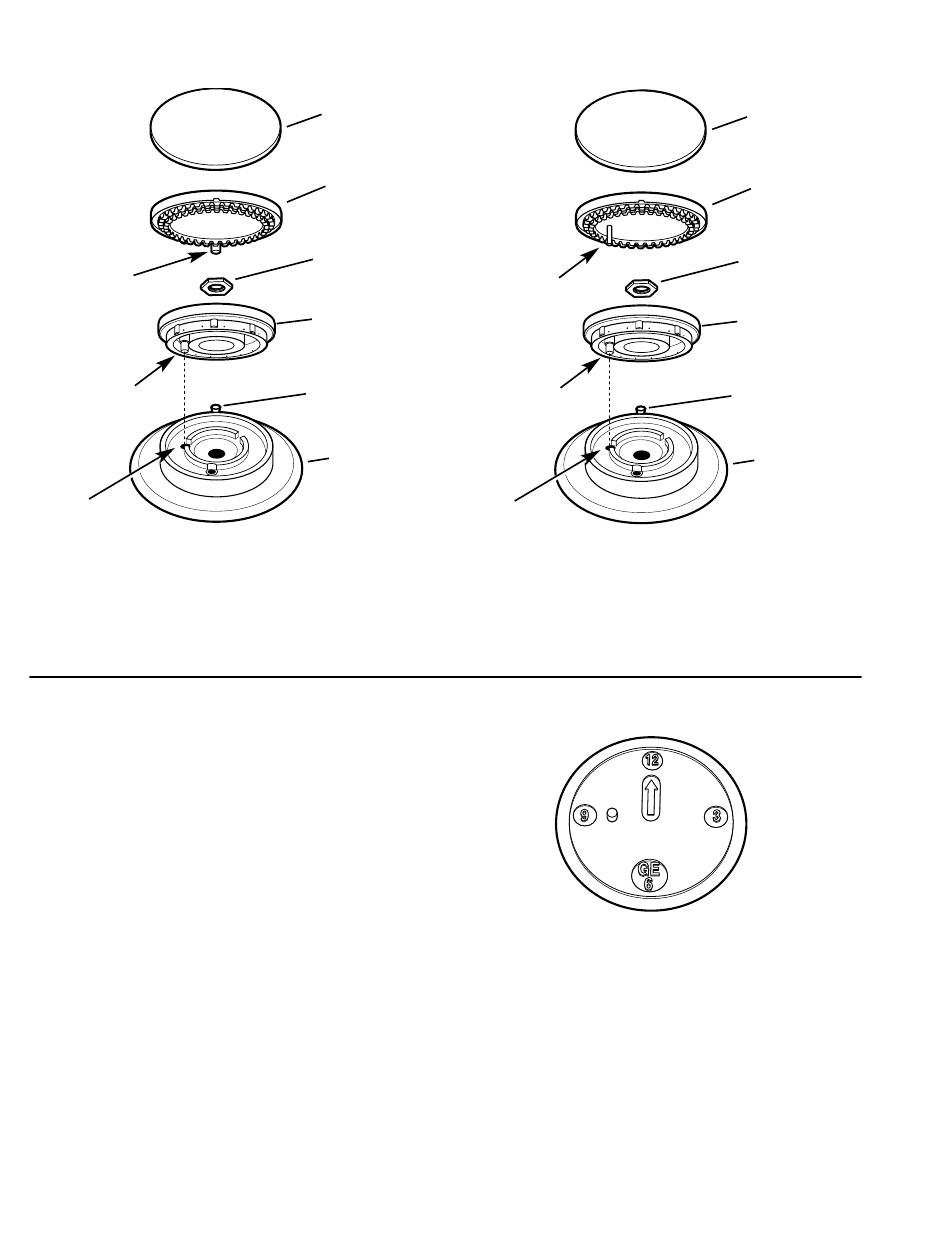

High Output Burners
and rings in a solution of mild liquid detergent and
hot water for 20-30 minutes. For more stubborn
stains, use a toothbrush. Clean the burner
bases in place on the cooktop.
Before putting the burner parts back, shake out
excess water and then dry them thoroughly by
setting them in a warm oven for 30 minutes.
Replace the burner parts. Make sure that the rings,
heads, and caps are replaced in the correct
location. There are four medium sets and one
large set of rings, heads, and caps.
To replace the burner parts, make sure all parts
are for the correct burner, in the correct location,
and firmly seated. Align the locator pin on the
burner ring into the labeled hole in the burner base.
Replace the burner ring locking nut and hand-
tighten. Turn the nut 1/4 turn to secure it in place.
Align the locator pin in the burner head into the
hole in the burner ring. Replace the burner cap.
Burner Cap
Burner Head
(Brass)
Burner Ring
Locking Nut
Locator Pin
Burner Ring
(Aluminum)
Electrode
Locator Pin
Burner Base
Pin
Slot
– 8 –
NOTE: Locator pin fits
into burner base pin slot.
-
Maximum Output Center Burner
To aid reassembly, each
brass Burner Head is
marked with a clock face.
Replace the Burner Head
with the arrow pointing
to the rear of the cooktop
(12 o'clock position).
Burner Cap
Burner Head
(Brass)
Burner Ring
Locking Nut
Burner Ring
(Aluminum)
Electrode
Burner Base
