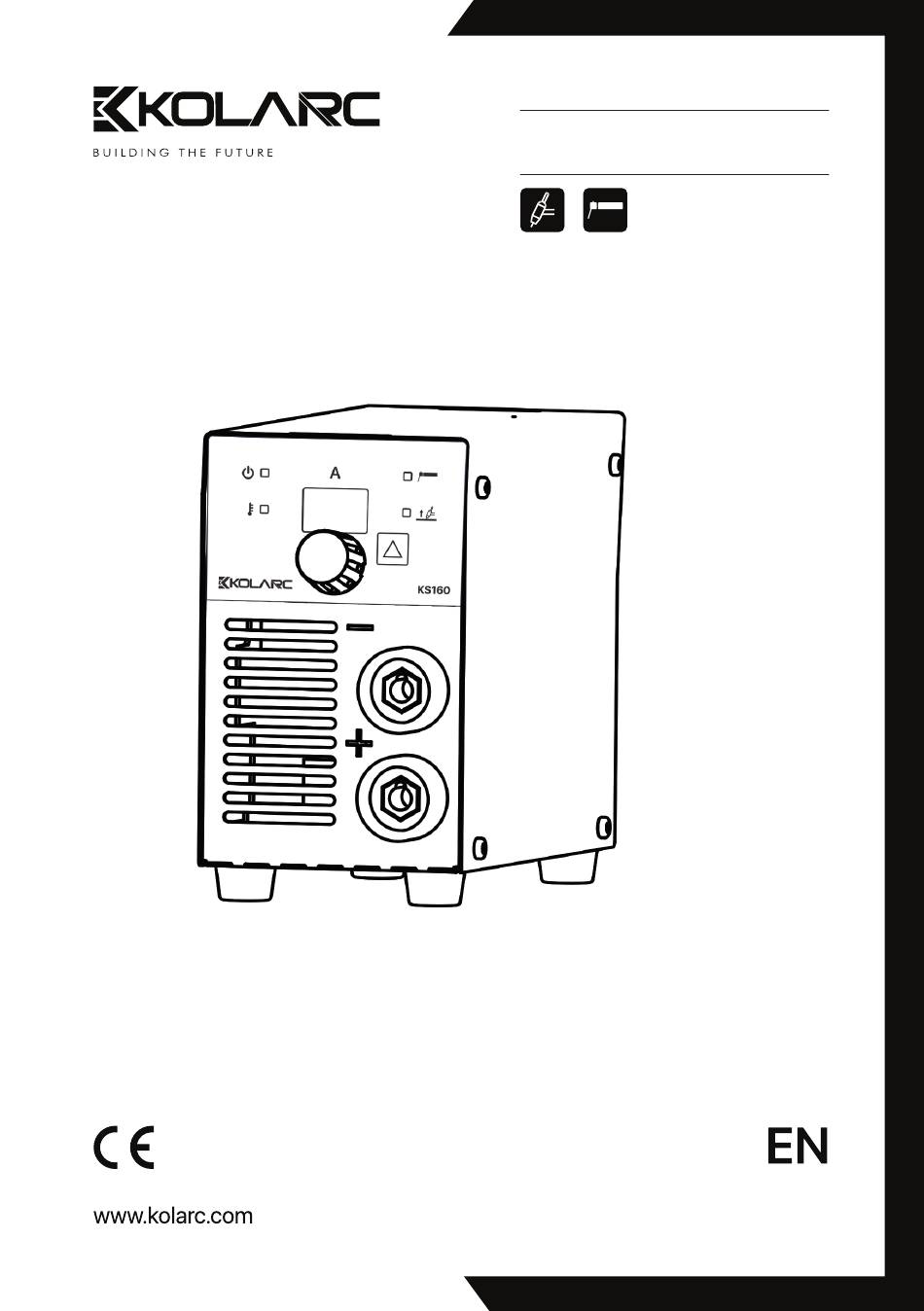

- Page 1 User Manual 2024−03 Processes Multiprocess Welding KS160 USER MANUAL Web sitemizi ziyaret edin...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents........................2 Installation and Operator Instructions..................3 Location and Environment......................3 Declaration of Conformity......................4 Operating Cycle and Overheating....................5 Technical Value Label......................5 Parts List..........................6 Front Panel Label........................6 Parts List..........................7 Covered Electrode Welding.....................8 Maintenance and Troubleshooting...................9 Error Analysis Table........................10... -
Page 3: Installation And Operator Instructions
10-The welding machine has been checked for any defects before leaving the factory. Therefore Unauthorized persons should never be allowed to tamper with the machine. Repair operations can only be carried out by Kolarc Makine İmalat San. ve Tic. A.Ş. authorized by It must be done by “Authorized Technical Services” . -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY for European Community (CE marked) products. We KOLARC MAKİNE İMALAT SAN. VE TİC. A. Ş: 2014. Cd. No: 8/1, 06930 Alcı OSB/Sincan/Ankara, declares that the product(s) identified in this declaration conform to the essential requirements and provisions of the stated Standard(s). - Page 5 GENERAL DIRECTORATE OF CONSUMER PROTECTION AND MARKET SURVEILLANCE Manufacturing Company Title : Kolarc Makine İmalat Sanayi ve Ticaret A.Ş. Address : Alcı OSB Mah, 2014. Cd. No:8/1, 06909 Alcı OSB/Sincan/ANKARA Tel / Fax : (0312) 577 18 18 / (0312) 577 19 19...
- Page 6 The welding machine, with its plug, may only be connected to a mains supply protected by a 16 ampere delayed fuse. KOLARC KS160 should be connected to single phase, 220 V (AC) and 50-60 Hz network with Single Phase and Earth line.
-
Page 7: Front Panel Label
Track List (10) Ampere adjustment Rear foot knob Power cable Socket Top cover Forefoot 10. Front panel board On and off switch 11. Main board Sheet metal body Front Panel Label Power indicator Thermal protection indicator Digital display Current adjustment knob Electrode indicator Tig gauge Electrode-Tig selection button... - Page 8 Parça Listesi Top cover sheet SocketPot düğmesi Pot button Front panel label sheet Socket Sheet metal body Switch...
- Page 9 Shrouded Electrode Welding Before starting the welding process, the following operations must be performed 1. First determine which pole is suitable for the electrode being used. You can find this in- formation in the electrode’s data sheet. Then connect the welding cables to the outputs ac- cording to the selected polarity.
-
Page 10: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Warning : The welding machine must be disconnected from the mains during maintenance. Maintenance must be performed by authorized and qualified persons. Quarterly Care Replace illegible labels. Clean the connection terminals. Make sure that the Cables and Hoses are secure Six Monthly Maintenance Air the machine. - Page 11 Devre Şeması...
- Page 12 Kolarc Makine İmalat Sanayi ve Ticaret A.Ş.
