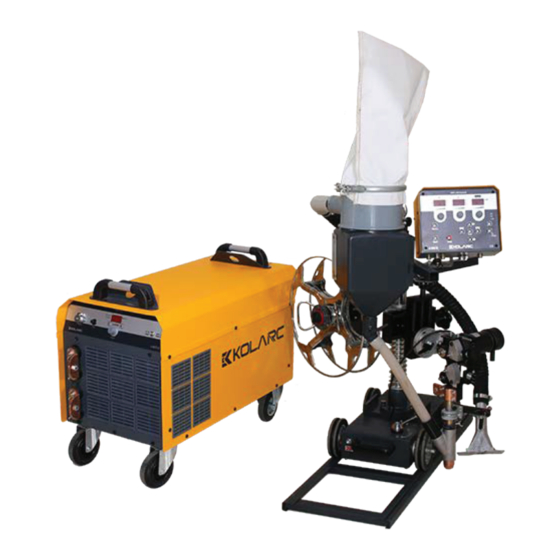

- Page 1 SAW SERIES SAW 1000 SAW 1250 OPERATOR MANUAL www.kolarc.com...
-
Page 2: Table Of Contents
CONTENTS WARRANTY CERTIFICATE CE DECLARATION OF CONFORMITY SAFETY WARNINGS INSTALLATION AND OPERATOR INSTRUCTIONS WORK CYCLE AND OVERHEATING TECHNICAL DATA LABEL APPLICATION CONTROL PANEL POWER UNIT DIAGRAM SERVICE AND MAINTENANCE... - Page 3 MANUFACTURER & IMPORTERS COMPANY Ünvanı :Center Dış Ticaret Makina San. ve Paz. A.Ş. Name : Kolarc Makine İmalat Sanayi ve Ticaret A.Ş Adres :Hamidiye Mah. Atatürk Cad. No :292/A Sultanbeyli/ İSTANBUL Address : Kargalıhanbaba OSB Mh. Organize Sanayi 3. Sk. No:8 Hendek / SAKARYA...
- Page 4 1-) The warranty period starts from the delivery date of the goods and is 2 years. 2-) The goods including all parts are covered by KOLARC warranty. 3-) In case of malfunc�on of the goods within the warranty period, the �me spent in repair is added to the warranty period.
- Page 5 AVRUPA TOPLULUĞU - UYGUNLUK BEYANI EUROPEAN COMMUNITY - DECLARATION OF CONFORMITY Üre�ci : KOLARC MAKİNE İMALAT SAN. VE TİC. A.Ş Manufacturer : Kargalıhanbaba OSB Mh. Organize Sanayi 3. Sk. No:8 Hendek / SAKARYA / TURKEY Tel : 0 (264) 502 24 20 Fax : 0 (264) 502 24 21 Beyan : Aşağıda belir�len ürünler AT Direk�flerine ve Standartlarına uyumludur.
-
Page 6: Safety Warnings
Please read the warnings against the symbols listed below. Kolarc Makine İmalat San. ve Tic. Inc. is not responsible, due to improper connec�ons, storage condi�ons and damage caused by use, WARNING: This symbol indicates that the instruc�ons in this manual must be observed... - Page 7 Noise: Ear muffs should be worn to protect the ear from sparks and molten metals and to prevent hearing loss from the arc welding machine noise. When the noise in the working environment reaches a level that is disturbing and causing headaches, an auditory problem may occur. In this case, your ear muffs should be worn immediately.
- Page 8 SMOKE AND GASES MAY BE DANGEROUS: Welding may cause fumes and gases to be released. Adequate ven�la�on must be provided or fumes and gases must be vented out of the breathing zone to protect users from this hazard. In general, welding applica�ons;...
-
Page 9: Installation And Operator Instructions
be ignited by contact; liquids (gasoline, oil, paint, thinner and the like), solids (wood, cardboar d, paper and the like) and gases (acetylene, hydrogen and the like). Observe the welded medium. If there are systems opera�ng with petrol or hydraulic oil in the vicinity and you are unable to move the welding medium or the system, put a fire-resistant screen in between. -
Page 10: Work Cycle And Overheating
The welding machine can only be connected to the mains with a 16-amp delayed fuse with the plug on it. 1- KOLARC 400 AC; It must be connected to a three-phase, 380 V (AC) and 50-60 Hz network with 3 Phase and Ground lines. -
Page 11: Technical Data Label
1- KOLARC SAW ; It must be connected to a three phase, 380 V (AC) and 50 - 60 Hz network with 3 Phase and Ground lines. 2- It must be connected by a qualified electrician to the network with a healthy protec�ve earth connec�on approved by the competent authori�es. -
Page 12: Application
APPLICATION Tractor Communica�on Voltage Measurement Terminal Tractor (+) Terminal Tractor (-) Terminal Tractor (+) Terminal Current Se�ng Encoder Tractor (-) Terminal Cooling Vent... -
Page 13: Control Panel
CONTROL PANEL SAW Control ≥ 4.0 Menu Auto CV+CC Start Stop Current Display Screen Tractor Direc�on Current Se�ng ON Wire Pull-Down Voltage Display Screen Automa�c Mode* Voltage Se�ng ON Tractor Direc�on Tractor Speed Display Stop Bu�on Speed Display ON Start Bu�on Tractor Speed Encoder Menu Wire Thickness... -
Page 14: Power Unit
POWER UNIT Hot Start Amper Arc Force Remote Fuse Amper Arc Force Led Hot Start Led Display Screen Current Led A Panel - A/V Remote Selec�on Amperage Selec�on Bu�on Current Encoder Func�on Bu�on Remote Connec�on Fuse... -
Page 15: Diagram
DIAGRAM... -
Page 16: Service And Maintenance
SERVICE AND MAINTENANCE Six Month Maintenance Clean the machine with air that is not too high pressure. Do not open the machine covers during cleaning. Contact the authorized service for annual maintenance. During the annual maintenance, con�nuity of the grounding and insula�on control of the machine is required. PROBLEM POSSIBLE ERROR SOLUTION... - Page 17 9.0 EC Declaration of Conformity Hereby we declare that the machines as stated below KOLARC SAW 1000 - SAW 1250 Type: Conform to the EC Directives: Low Voltage Directive 2014/35/EEC EMC Directive 2014/35/EEC Harmonised European standard: EN/IEC 60974-1 This is to certify that the tested sample is in conformity with all provisions of the above detailed EU directives and product standards.
- Page 18 Environment agency. For WEE compliance outside the please contact your supplier/Importer When your equipment reaches the end of its service life you should return it to KOLARC where it will be reconditioned or processed for recycling. 9.3 Statement of Warranty Limited Warranty: KOLARC Makina Imalat Sanayi ve Ticaret A.
- Page 19 Tel. + www. info@ www.kolarc.com...
