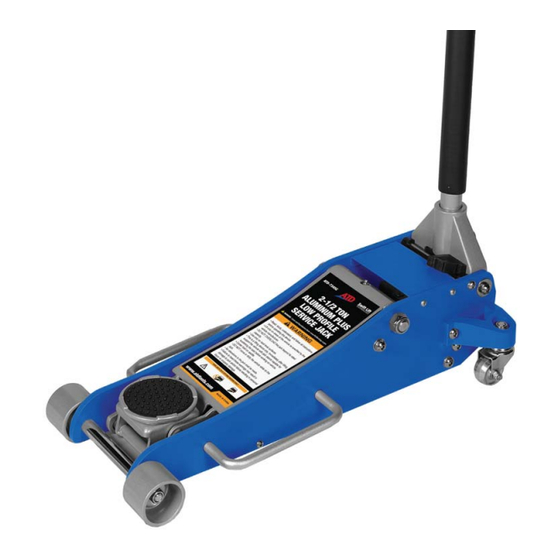

2.5 Ton Aluminum PLUS Service Jack
Features:
• The aluminum jack for everyday use
• The lightweight construction of aluminum with the strength of steel
• Aluminum frame with steel lift arm, handle fork and handle
• Side "D" handle for easy handling
• Rubber saddle pad protects vehicle at lift point
• Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
• U-Joint release mechanism provides precise control of load descent in any handle position
• Built-in pressure release valve protects the hydraulic system from over pumping damage
• Meets or exceeds ASME PASE 2019 standards
ATD-7345C
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Specifications:
• Capacity: 2.5 Tons
• Minimum Height: 3.5"
• Maximum Height: 19.25"
• Handle Length: 45.25"
• Saddle Diameter: 4.25"
• Size: 26" x 11.8" x 6.1"
ATD7345C_rev_0325
Advertisement
Table of Contents
Related Manuals for ATD Tools PLUS ATD-7345C
Summary of Contents for ATD Tools PLUS ATD-7345C
- Page 1 • U-Joint release mechanism provides precise control of load descent in any handle position • Built-in pressure release valve protects the hydraulic system from over pumping damage • Meets or exceeds ASME PASE 2019 standards Made in China to ATD Tools, Inc. Specifications ATD7345C_rev_0325 Visit us at www.atdtools.com...
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number on the last page of this manual. Keep the manual and invoice in safe and dry place for future reference. For your safety, read, understand, and follow the information provided with and on this device before using. -
Page 3: Product Description
PRODUCT DESCRIPTION The ATD Service Jack is designed to lift, but not support, one end of a vehicle. Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands. This service jack has a unique feature that provides fast, no load lifts to the jacking point. -
Page 4: Operation
OPERATION 1. Test the jack by placing the saddle under a stable, dead load. Turn the handle completely clockwise, and pump the handle up and down. The jack saddle should rise and stay at that level. If it slowly goes down, tighten the oil plug. If it still goes down, the power unit may need to have the air purged from its system. -
Page 5: Troubleshooting
MAINTENANCE CONTINUED Oil Replacement: jack and the potential for sudden and immediate loss of load. 1. Completely lower the saddle. 2. Place the jack on its side. 3. Remove the oil plug and drain old oil into a container. 5. Replace the oil plug. 6. -
Page 6: Replacement Parts
REPLACEMENT PARTS Not all components of this product are replacement items, but are illustrated as a convenient reference for position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing: ITEM# ORDERING PART# PART DESCRIPTION... - Page 7 PREVENTATIVE MAINTENANCE RECORD LOG DATE MAINTENANCE PERFORMED...
-
Page 8: Warranty
Your ATD-7345C is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools, Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
