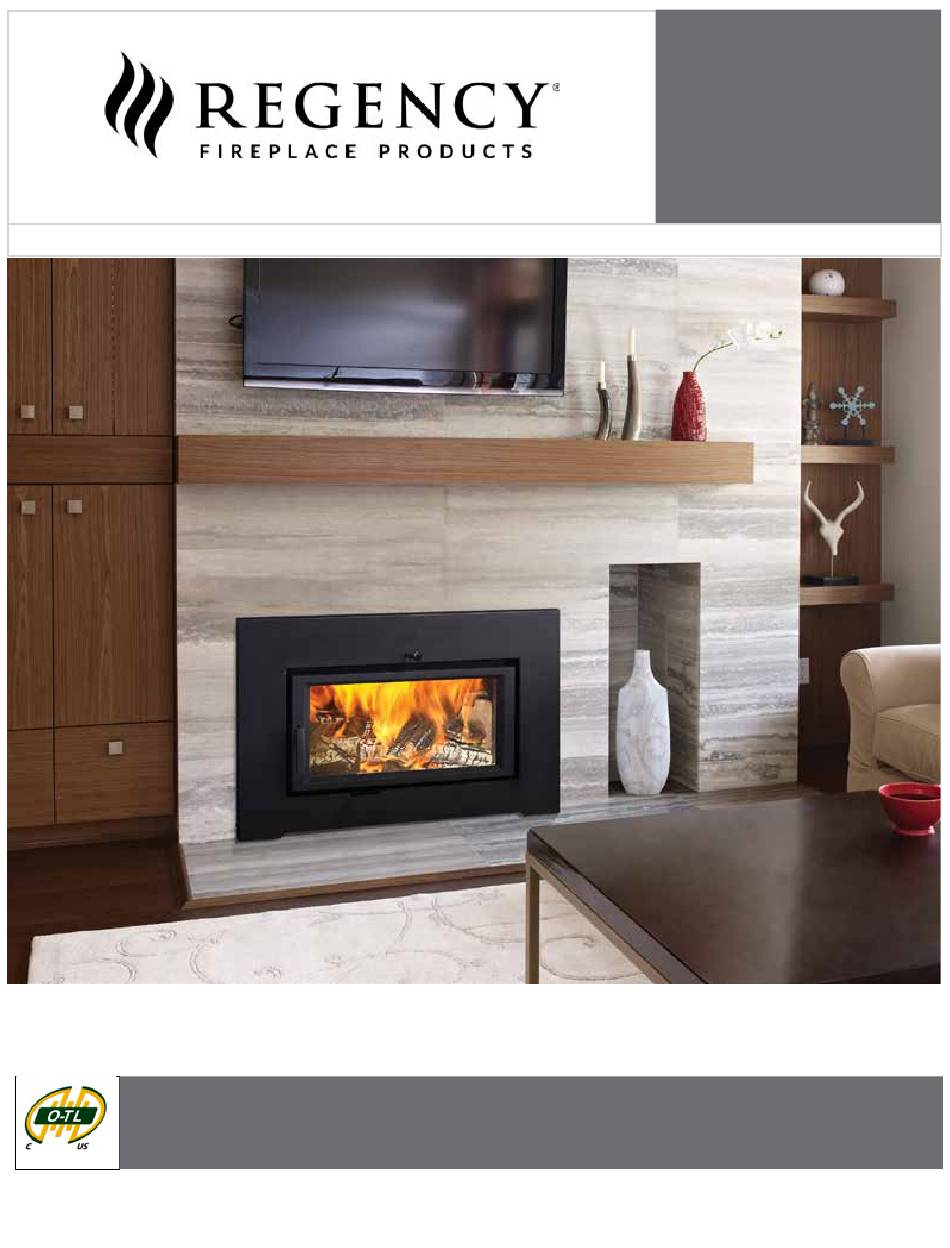

FPI Regency Pro Ci2700-1 Owners & Installation Manual

Wood fireplace insert

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Pro Series

Wood

Fireplace

Insert

Owners & Installation Manual

French Manual: https://bit.ly/3vaoKti

Manuel en Français : https://bit.ly/3vaoKti

www.regency-昀椀re.com

MODEL:

Ci2700-1/Hi500-1

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

Report #0219WN031S

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

07.17.24

920-673a
