Summary of Contents for Star Lake IV320-RH-KD

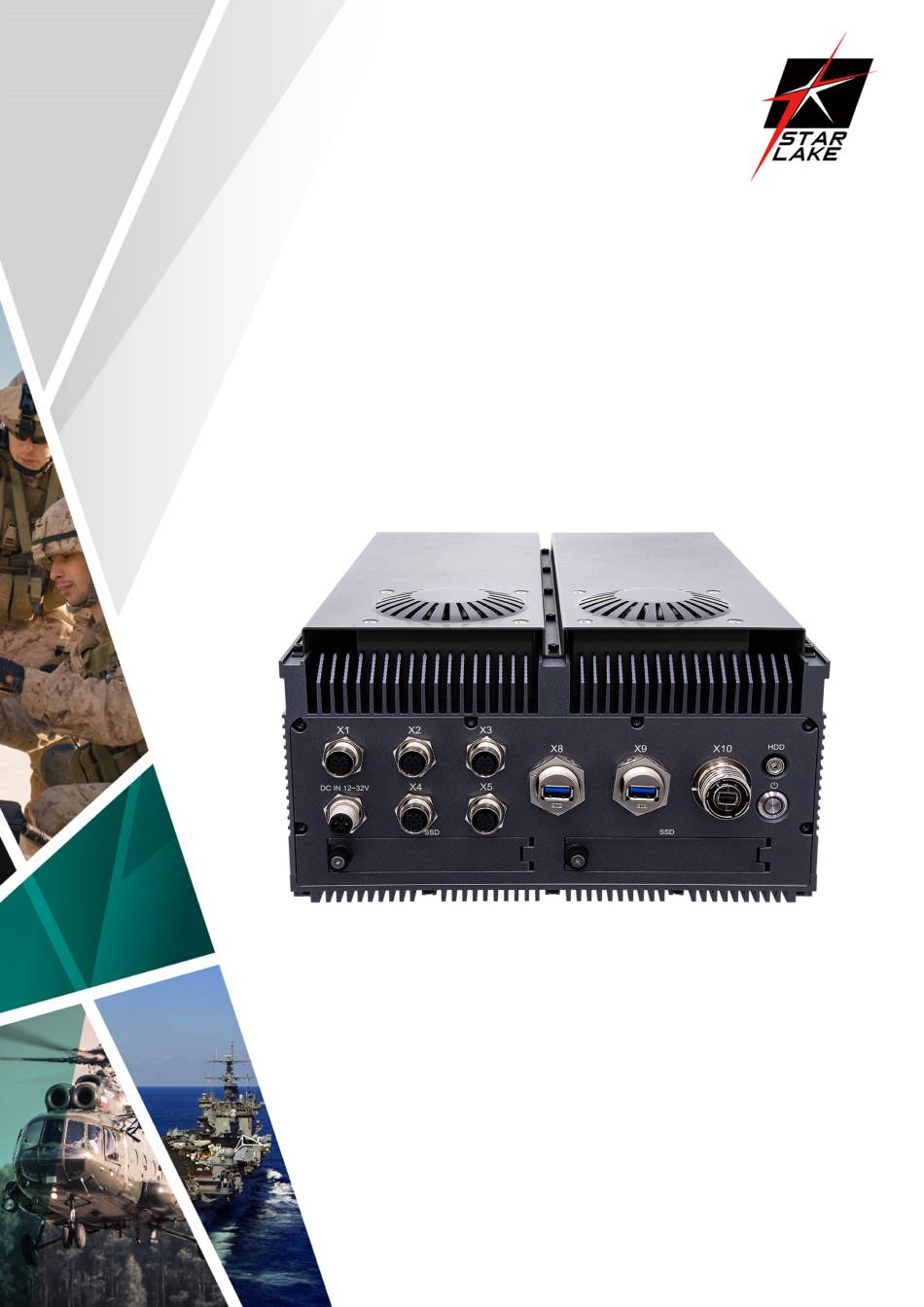

- Page 1 IV320-RH-KD IP65 Mission GPU Computer User’s Manual Revision Date: Aug.05. 2024...
-
Page 2: Safety Information
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the ... -
Page 3: Revision History
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Revision History Revision Date (yyyy/mm/dd) Changes Version 1.0 2024/08/05 Initial release Packing List Item Description Q’ty DVD(User Manual / Datasheet / Test Report Ordering Information Model Number Description IP65 Mission GPU Computer with Intel® 13th Gen. Raptor Lake-H Core i7-13800HRE... -
Page 4: Table Of Contents
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Index ........................... 1 AFETY NFORMATION ..........................2 EVISION ISTORY ............................2 ACKING ........................2 RDERING NFORMATION 1: P ..................4 HAPTER RODUCT NTRODUCTION ..............................4 1-1. PECIFICATIONS ..........................6 1-2. & D PPEARANCE IMENSION 2: M12/M20/BNC P ................ -
Page 5: Chapter 1: Product Introduction
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 1. C 1: P HAPTER RODUCT NTRODUCTION 1-1. Specifications System Intel® 13th Raptor Lake Core i7-13800HE/HRE, 14C, 20T, 2.5/5.0GHz, 24M Cache, TDP 45W Memory type 2 x DDR5 DIMMs Up to 64GB SO-DIMM 5200MHz... - Page 6 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Ingress Protection IP65 Operating Temp. -20°C to 60°C Storage Temp. -40°C to 85°C Relative Humidity 5% to 95%, non-condensing System Design Conduction Cooing Standard Compliance MIL-STD-810 Method 507.5, Procedure II ( Temperature & Humidity ) (Compliance) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
-
Page 7: Appearance & Dimension
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 1-2. Appearance & Dimension... -
Page 8: Chapter 2: M12/M20/Bnc Pin Define
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 2. C 2: M12/M20/BNC P HAPTER EFINE 2.1. Connector & Pin Definitions DC-IN Power Pin Function VIN+ VIN+ VIN- VIN- Dual RS485 with M12 Connector Pin Function (RS485) - Page 9 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Dual CANBUS with M12 Connector Pin Function (CANBUS) CAN-H CAN-L CAN-H CAN-L...
-
Page 10: Chapter 3: Ami Bios Utility
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 LAN with M12 Connector Pin Function (CANBUS) RJ45 Cable Color While/Orange Orange While/Green Green While/Blue Blue While/Brown Brown SHELL SHELL 3. C 3: AMI BIOS UTILITY HAPTER This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. -
Page 11: Navigation Keys
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 3.2 Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. Some of the hot keys are <F1>, <F10>, <Enter>, <ESC>, and <Arrow>... -
Page 12: Main
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 3.3 Main Use this menu for basic system configurations, such as time, date etc. Feature Description Options Detailed System Information The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system System Date Date. -
Page 13: Cpu Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 CPU Configuration CPU Configuration Parameters Feature Description Options Number of P-cores to enable in each processor package. Note: Number of Cores and E-cores are ★ Active Performance- cores All, 5, 4, 3, 2, 1 looked at together. -
Page 14: Chipset Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Number of E-cores to enable in each processor package. Note: Number of Cores and E-cores are ★ Active Efficient-cores All, 7, 6, 5, 4, 3, 2, 1, 0 looked at together. When both are {0,0}, Pcode... -
Page 15: Graphics Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ VT-d VT-d Capability Enabled ,Disabled Enable/Disable above 4GB MemoryMappedIO BIOS assignment ★ Above 4GB MMIO BIOS assignment Disabled, Enabled This is enabled automatically when Aperture Size is set to 2048MB Control Detection of the HD-Audio device. - Page 16 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ 1024x768,640x480,800x480,800x600,1280x800 Panel Profile Select Panel Profile for current use. 1280x1024,1366x768,1440x900,1920x1080,OEM Profile ★ VESA and JEIDA 18 bpp, VESA 24 bpp, JEIDA 24 Color depth and data format Select Color depth and data format ★...
-
Page 17: Power Control Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ VESA and JEIDA 18 bpp, VESA 24 bpp, JEIDA 24 Color depth and data format Select Color depth and data format ★ Channel Mode Select LVDS Channel Mode Single Channel, Dual Channel ★... -
Page 18: Pci/Pcie Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 PCI/PCIE Configuration PCI, PCI-X and PCI Express Settings COMe PEG Port 0, 8, 12 PCI Express Root Port Settings Feature Description Options ★ COMe PEG Port 0,8, 12 Control the PCI Express Root Port. -
Page 19: Lan Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 PCH PCI Express Root Port 1~5 PCI Express Root Port Settings Feature Description Options ★ COMe PCIe Port 1~5 Control the PCI Express Root Port. Disabled, Enabled Set the ASPM Level: Force L0s – Force all links to L0s State ★... -
Page 20: Sata And Rst Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ Onboard LAN Controller #1 Enable/Disable onboard NIC Enabled , Disabled Control PCIE wake# pin for Wake On ★ PCIE_WAKE (Wake on LAN) Enabled , Disabled Lan function ★ Launch UEFI PXE ROM... -
Page 21: Usb Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ SATA Controller(s) Enable/Disable the SATA Device. Enabled , Disabled Enable VMD controller(RAID ★ Enable/Disable to VMD controller Disabled, Enabled Mode) COMe SATA Port 0~1 ★ Port 0~1 Enable or Disable SATA Port Enabled ,Disabled ★... -
Page 22: Tpm Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options Enable/Disable this USB Physical Connector (physical port). Once disable, ★ COMe USB 3.0 Port #0~7 Enabled ,Disabled any USB devices plug into the connector will not be detected by BIOS or OS This is a workaround for OSes without XHCI hand-off support. -
Page 23: Super Io Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options Enables or Disables BIOS support for security device. O.S. will not show ★ Security Device Support Disabled, Enabled Security Device. TCG EFI protocol and INT1A Interface will not be available. ★... -
Page 24: Serial Port 1 Configuration
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ Watch Dog Timer Enable/Disable Watch Dog Timer Disabled, Enabled Watch Dog Timer [Enable] ★ Timer Unit Select Timer count unit of WDT Second, Minute ★ Timer value Set WDT Timer value seconds/minutes ... - Page 25 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options ★ Serial Port 2 Enable or Disable Serial Port (COM) Enabled, Disabled H/W Monitor Monitor hardware status Feature Description Options ★ Module Fan Function Enable/Disable the smart fan control Disabled, Enabled Module Fan Function [Enable] ★...
-
Page 26: Serial Port Console Redirection
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 ★ Thermal Cruise Mode, Carrier Fan Control Mode Smart Fan Mode Select Fan Control Mode In Thermal Cruise Mode: Tolerance of ★ Carrier Fan Tolerance Temp Target Temperature In Thermal Cruise Mode: Start ★... -
Page 27: Com0 Console Redirection Settings
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 COM0 Console Redirection Settings Feature Description Options Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color , ★ Terminal Type VT100, VT100Plus, VT-UTF8, ANSI function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. -
Page 28: Security
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options Select File Select ROM image 3.5 Security Feature Description Options [Setup] check password when enter setup screen. ★ Password Check Mode Setup, Power on [Power on] check password on every time system power on. -
Page 29: Boot
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 3.6 Boot Feature Description Options Number of seconds to wait for setup ★ Setup Prompt Timeout activation key. 65535(0xFFFF) means indefinite waiting. ★ Bootup NumLock State Select the keyboard NumLock state On, Off ★... -
Page 30: Chapter 4: Ami Bios Utility
IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Feature Description Options Reset the system after saving the Save Changes and Reset changes. Reset system setup without saving any Discard Changes and Reset changes. Restore/Load Default values for all the Restore Defaults setup options. - Page 31 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Step 3. Plug the USB DOK on the target system and select “Built-in EFI Shell” in the BIOS “Save&Exit” page Shown as below picture Step 4. Under the UEFI shell, change prompt to your USB DOK, the below example is “ fs0: “...
- Page 32 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Step 6. The updating process will start and show the updating progress Step 7. Please power off and restart the system once updating finished EC update Step 1. Unzip EC binary file to the USB DOK (USB DOK must be FAT or FAT32 format) Step 2.
- Page 33 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Step 3. Select EC binary file by option item shown as below Step 4. Select “Yes” to start EC update (Please don’t turn off power during firmware update)
- Page 34 IV320-RH-KD User’s Manual Revision Date: Aug.05.2024 Step 5. Turn off power to make system into G3 status once updating finished, then power on the system...
