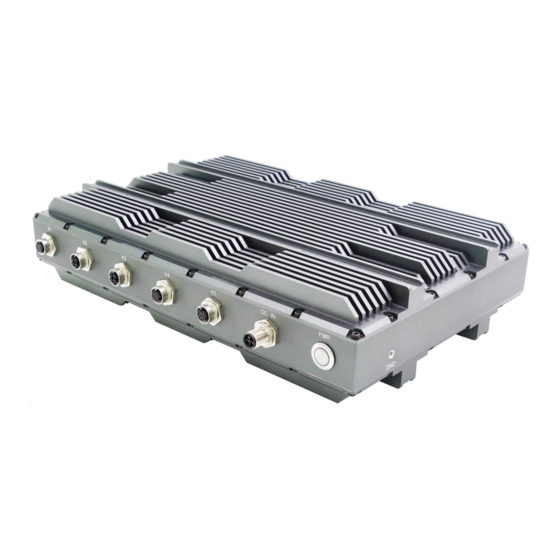

Star Lake SR700 User Manual

Mil-std rugged computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SR700
MIL-STD Rugged Computer
User's Manual
User's Manual
Revision Date: NOV. 23. 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR700 and is the answer not in the manual?

Questions and answers

Related Manuals for Star Lake SR700

Summary of Contents for Star Lake SR700

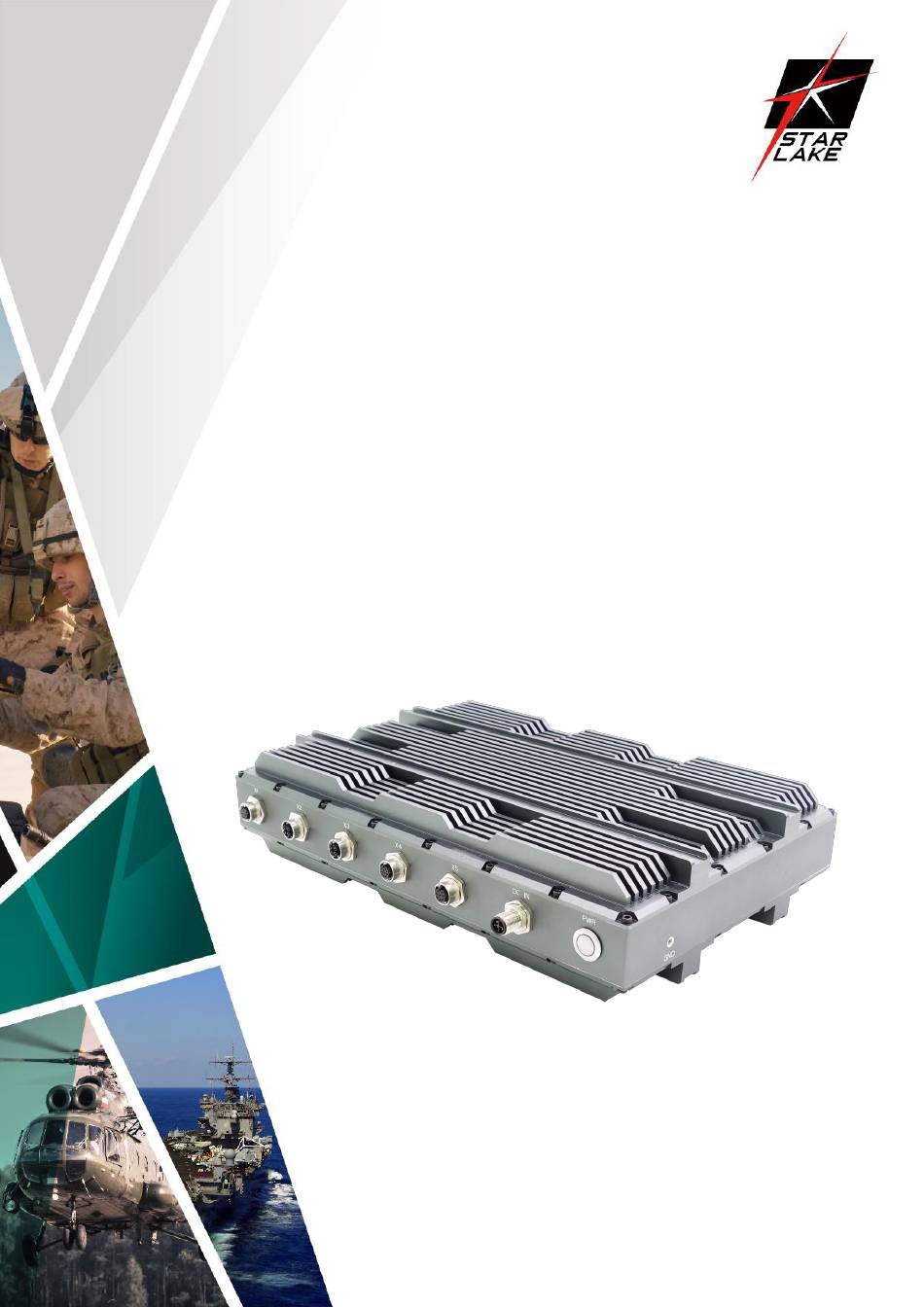

  • Page 1 SR700 MIL-STD Rugged Computer User’s Manual User’s Manual Revision Date: NOV. 23. 2016...

  • Page 2: Safety Information

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

  • Page 3: Revision History

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Revision History Revision Date (yyyy/mm/dd) Changes V0.1 2016/11/01 Draft Version V1.0 2016/11/23 Initial release Packing list □THOR100 MIL-STD Rugged Computer □ XR-DIMM up to 8 GB RAM optional □NVIDIA GTX950M MXM Graphic Card Accessories Kit □M12 4 PIN DC Connector x 1pcs...

  • Page 4: Table Of Contents

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Table of contents Safety Information ............................. 1 Electrical safety .............................. 1 Operation safety ............................1 Statement ..............................1 Revision History..............................2 Packing list................................2 Accessories Kit ..............................2 Ordering Information ............................2 Chapter 1: Product Introduction ........................
  • Page 5 SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.7 Intel Anti-Theft Technology Configuration ..................29 3.4.8 AMT Configuration .......................... 30 3.4.9 USB Configuration ........................... 32 3.4.10 IT8786 Super IO Configuration ...................... 35 3.4.11 IT8786 HW Monitor ........................37 3.4.12 Serial Port Console Redirection ..................... 38 3.4.13 Network Stack ..........................

  • Page 6: Chapter 1: Product Introduction

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Chapter 1: Product Introduction 1-1 Key Features System Intel® Core™ i7 Haswell , BGA type Core i7-4700EQ (4C x 2.4/1.7 GHz), 6M Cache (47W) Chipset Intel® QM87 PCH Ethernet Chipset Intel® i210-IT & i217-LM GbE...
  • Page 7 SR700 User’s Manual Revision Date: NOV. 23. 2016 Method 516.6, Procedure I (Mechanical Shock) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock)

  • Page 8: Front Panel Components

    SR700 User’s Manual Revision Date: NOV. 23. 2016 1.2 Front Panel Components DC IN 1 x DC input 2 x USB2.0 1 x GbE LAN 1 x GbE LAN 1 x VGA 1 x RS232, 1 x RS485 Power Button with LED backlight...

  • Page 9: Mechanical Dimensions

    SR700 User’s Manual Revision Date: NOV. 23. 2016 1.3 Mechanical Dimensions...

  • Page 10: Chapter 2: Jumpers And Connectors

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Chapter 2: Jumpers and Connectors This chapter describes the jumpers and connectors on the systems’ motherboard. 2.1 Front Panel Connector Pin Definitions...
  • Page 11 SR700 User’s Manual Revision Date: NOV. 23. 2016...

  • Page 12: Internal Connector And Jumper Setting

    SR700 User’s Manual Revision Date: NOV. 23. 2016 2.2 Internal Connector and Jumper Setting...

  • Page 13: Chapter 3: Ami Bios Utility

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Chapter 3: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Starting To enter the setup screens, perform the following steps: ...

  • Page 14: Main Menu

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.3 Main Menu The Main menu is the screen that first displays when BIOS Setup is entered, unless an error has occurred.

  • Page 15: Advanced Menu

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4 Advanced Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

  • Page 16: Pci Subsystem Settings

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.1 PCI Subsystem Settings PCI, PCI-X and PCI Express settings. PCI Common Settings PCI Latency Timer: Value to be programed into PCI Latency Timer Register. VGA Palette Snoop: Enable or disable VGA Palette Registers Snooping.
  • Page 17 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Settings Change PCI Express Devices Settings. PCI Express Device Register Settings Relaxed Ordering: Enables or Disables PCI Express Device Relaxed Ordering. Extended Tag: If ENABLED allows Device to use 8-bit Tag field as a requester.

  • Page 18: Acpi Settings

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.2 ACPI Settings System ACPI Parameters. Enable ACPI Auto Configuration Enable/disable BIOS ACPI Auto Configuration. Enable Hibernation Enables or Disables system ability to hibernate (OS/S4 sleep state). This option may be not effective...

  • Page 19: Cpu Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 ACPI Sleep State Select ACPI sleep state the system will enter when the suspend button is pressed. Lock Legacy Resources Enable or disable lock of legacy resource. S3 Video Repost Enable or disable S3 Video Repost.
  • Page 20 SR700 User’s Manual Revision Date: NOV. 23. 2016...
  • Page 21 SR700 User’s Manual Revision Date: NOV. 23. 2016 Hyper-threading Enable for windows XP and Linux(OS optimized for Hyper-Threading Technology) and Disabled for other OS(OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to enable in each processor package.
  • Page 22 SR700 User’s Manual Revision Date: NOV. 23. 2016 Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Hardware Prefetcher Enable the mid level cache(L2) streamer prefetcher. Adjacent Cache Line Prefetcher Enable the mid level cache(L2) prefetching of adjacent cache lines.
  • Page 23 SR700 User’s Manual Revision Date: NOV. 23. 2016 DDR Power Limit1 Time: Time window which the DDR Power Limit1 is maintained. DDR Power Limit2: DDR Power limit2 value 1-Core Ratio Limit: This limit is for 1 core active. 0 means using the factory-configured value.
  • Page 24 SR700 User’s Manual Revision Date: NOV. 23. 2016 LakeTiny Feature Enable/Disable LakeTiny for C state configuration. ACPI CTDP BIOS Enable/Disable ACPI CTDP BIOS support. Configurable TDP level Allows reconfiguration of TDP levels base on current power and thermal delivery capabilities of the system.

  • Page 25: Sata Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.4 SATA Configuration This section is used to configure the SATA drives...
  • Page 26 SR700 User’s Manual Revision Date: NOV. 23. 2016 SATA Controller(s) Enable or disable SATA device. SATA Mode Selection Determines how SATA controller(s) operate. The options are: IDE, AHCI, RAID SATA Test Selection Enable or disable Test Mode Aggressive LPM Support Enable PCH to aggressively enter link power state.
  • Page 27 SR700 User’s Manual Revision Date: NOV. 23. 2016 Software Feature Mask Configuration RADI OROM/RST driver will refer to the SWFW configuration to enable or disable the storage features. RAID0: Enable or disable RAID0 feature. RAID1: Enable or disable RAID1 feature.
  • Page 28 SR700 User’s Manual Revision Date: NOV. 23. 2016 Hot Plug: Designates this port as Hot Pluggable. External SATA: External SATA support. SATA device type: Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Spin Up Device: On an edge detec from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

  • Page 29: Intel Rapid Start Technology

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Spin Up Device: On an edge detec from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. Serial ATA Port 5 Port 5: Enable or disable SATA port Hot Plug: Designates this port as Hot Pluggable.

  • Page 30: Pch-Fw Configuration Configure

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.6 PCH-FW Configuration Configure Management Engine Technology Parameters. MDES BIOS Status Code Enable/Disable MDES BIOS Status Code. Firmware Update Configuration Configure Management Engine Technology Parameters. Me FW Image Re-Flash: Enable/Disable Me FW Image Re-Flash function.

  • Page 31: Amt Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Intel Anti-Theft Technology Enable/Disable Intel AT in BIOS for testing. On Enter Intel AT Suspend Mode Only Disabled 3.4.8 AMT Configuration Configure Active Management Technology Parameters.
  • Page 32 SR700 User’s Manual Revision Date: NOV. 23. 2016 Intel AMT Enable/Disable Intel Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled.This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device.

  • Page 33: Usb Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 MEBx Debug Message Output OEMFlag Bit 14: Enable MEBx debug message output. Un-Configure ME OEMFlag Bit 15: Un-Configure ME without password. Amt Wait Timer Set Timer to wait before sending ASF_GET_BOOT_OPTIONS. Disable ME Set ME to Soft Temporary Disabled.
  • Page 34 SR700 User’s Manual Revision Date: NOV. 23. 2016 Legacy USB Support Enables legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. USB3.0 Support Enable/Disable USB3.0 (XHCI) Controller support.
  • Page 35 SR700 User’s Manual Revision Date: NOV. 23. 2016 USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. USB hardware delays and time-outs: USB transfer time-out: The time-out value for Control, Bulk, and Interrupt transfers. The options are 1sec, 5 sec, 10 sec, 20 sec.

  • Page 36: It8786 Super Io Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.10 IT8786 Super IO Configuration System Super IO Chip Parameters. Serial Port 1 Configuration Set Parameters of Serial Port 0 (COMA). Serial Port: Enable or Disable Serial Port (COM). Device Settings: IO=3F8h, IRQ=4 Change Settings: Select an optimal setting for Super IO device.
  • Page 37 SR700 User’s Manual Revision Date: NOV. 23. 2016 Change Settings: Select an optimal setting for Super IO device. Serial Port 3 Configuration Set Parameters of Serial Port 2 (COMC). Serial Port: Enable or Disable Serial Port (COM). Device Settings: IO=3E8h, IRQ=7 Change Settings: Select an optimal setting for Super IO device.

  • Page 38: It8786 Hw Monitor

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.11 IT8786 HW Monitor Monitor hardware status.

  • Page 39: Serial Port Console Redirection

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.12 Serial Port Console Redirection Console Redirection Console Redirection Enable or Disable.
  • Page 40 SR700 User’s Manual Revision Date: NOV. 23. 2016 Console Redirection Setting The Settings specify how the host computer and the remote computer will exchange data. Both computers should have the same or compatible setting. Out-of-Band Mgmt Port: Microsoft Windows Emergency Management Service allows for remote management of a Windows Server OS through a serial port.

  • Page 41: Network Stack

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.13 Network Stack Network stack settings Network Stack Enable/Disable UEFI network stack...

  • Page 42: Intel I210 Gigabit Network Connection

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.4.14 Intel I210 Gigabit Network Connection Configure Gigabit Ethernet device parameters. PORT CONFIGURATION MENU NIC Configuration: Configure Boot Protocol, wake on LAN, Link Speed, and VLAN. Blink LEDs: Identify the physical network port by blinking the associated LED.

  • Page 43: Chipset

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

  • Page 44: Pch Io Configuration

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.5.1 PCH IO configuration...
  • Page 45 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Configuration PCI Express Configuration settings PCIE Root Port Function Swapping: Enable or disable PCI Express PCI Express Root Port Function Swapping. Subtractive Decode: Enable or disable PCI Express Subtractive Decode.
  • Page 46 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Root Port2 control the PCI Express Root port, the options are enabled/disabled. ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 47 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Root Port3 control the PCI Express Root port, the options are enabled/disabled ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 48 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Port 4 is assigned to LAN PCI Express Root Port5: control the PCI Express Root port, the options are enabled/disabled ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 49 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Root Port6 control the PCI Express Root port, the options are enabled/disabled ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 50 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Root Port7 control the PCI Express Root port, the options are enabled/disabled ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 51 SR700 User’s Manual Revision Date: NOV. 23. 2016 PCI Express Root Port8 control the PCI Express Root port, the options are enabled/disabled ASPM Support: Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE –...
  • Page 52 SR700 User’s Manual Revision Date: NOV. 23. 2016 Azalia PME: Enable or disable Power Management capability of Audio Controller. PCH LAN Controller Enable or disable onboard NIC. Wake on LAN: Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)

  • Page 53: System Agent Sa

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.5.2 System AGENT SA VT-d Check to enable VT-d function on MCH.
  • Page 54 SR700 User’s Manual Revision Date: NOV. 23. 2016 Graphics Configuration Graphics Turbo IMON Current: Graphics turbo IMON current values supported (14-31). Primary Display: select which of AUTO/IGFX/PEG/SG graphics device should be primary display or select SG for switchable GFX Primary PEG: Select Auto/PEG1/PEG2 Graphics device should be Primary PEG.

  • Page 55: Boot

    SR700 User’s Manual Revision Date: NOV. 23. 2016 3.6 Boot This section is used to configure the boot features. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state.

  • Page 56: Security

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Boot option priorities Boot Option #1: Sets the system boot order. Hard Drive BBS Priorities Set the order of the legacy devices in this group CSM16 Parameters Set the order of the legacy devices in this group GateA20 Active: UPON REQUEST –...

  • Page 57: Save And Exit

    SR700 User’s Manual Revision Date: NOV. 23. 2016 Administrator Password Set Administartor Password. User Password Set User Password. HDD Security Configuration Set HDD Password. 3.8 Save and Exit This screen provides functions for handling changes made to the BIOS settings and the...
  • Page 58 SR700 User’s Manual Revision Date: NOV. 23. 2016 Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes.
