Summary of Contents for Tool Shed TSTH08

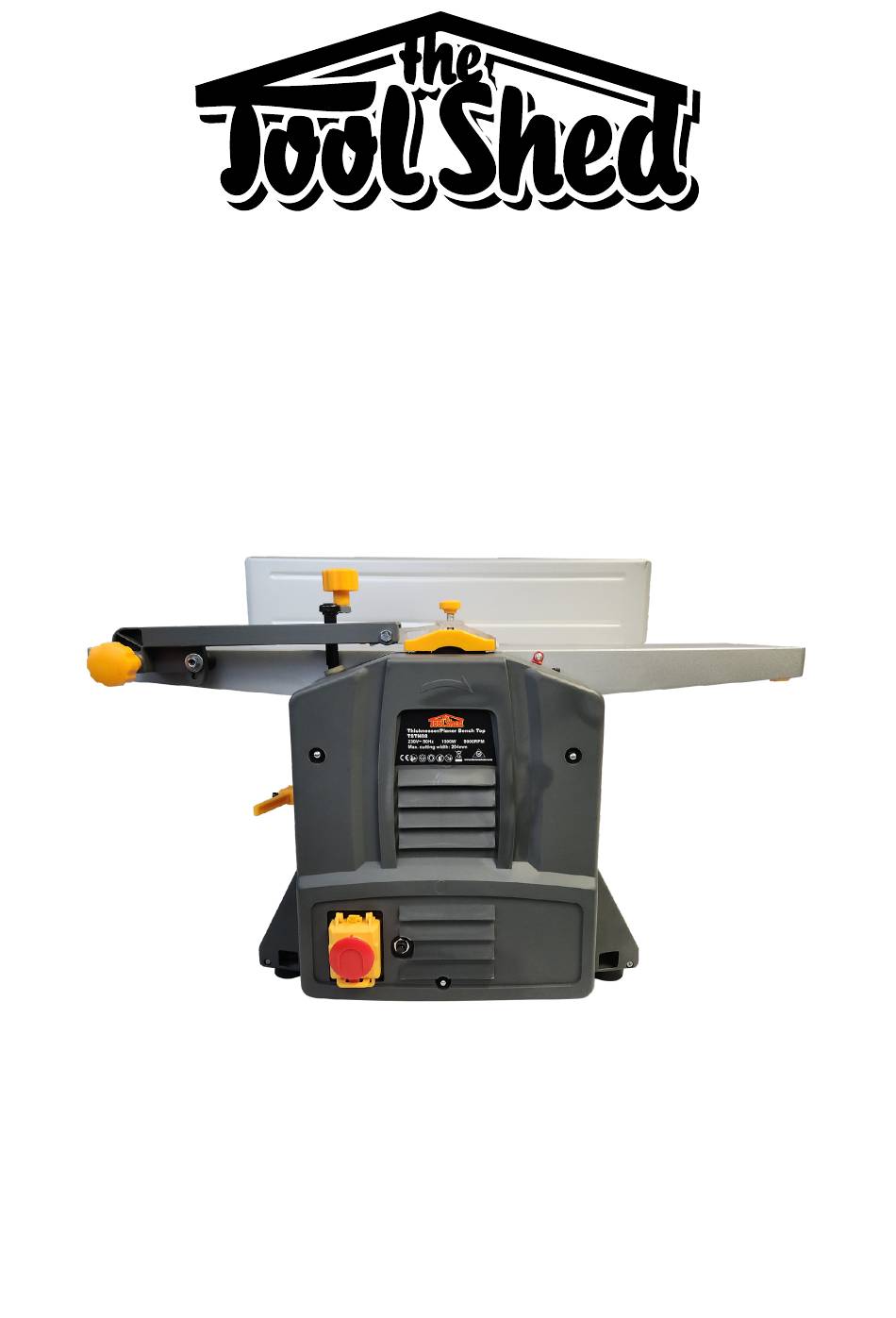

- Page 1 THICKNESSER/PLANER BENCH TOP TSTH08 www.thetoolshed.co.nz...
-
Page 2: Table Of Contents
OPERATION MANUAL OPERATION MANUAL TABLE OF CONTENTS PRODUCT DETAILS Product Details Product Model ToolShed Thicknesser/Planer Bench Top Specifications Product Identification Product Code TSTH08 Safety Guidelines Assembly Operation Maintenance Troubleshooting Exploded Parts List DISTRIBUTED BY: Thank You Note: For the purchase of this ToolShed product. We try our hardest to supply customers like you with the best quality products available, at the best price possible. -
Page 3: Specifications
OPERATION MANUAL OPERATION MANUAL SPECIFICATIONS PRODUCT IDENTIFICATION Planer Cutting Depth 0–3mm Max. Cutting Width 204mm Table Dimensions 740mm x 210mm Thicknesser Work Piece Thickness 5–120mm Cutting Depth 0–2mm Max. Cutting Width 204mm Feed Rate 8m per minute Motor Size 1500 Watts Dust Extraction Size 100mm Product Dimensions... -
Page 4: Safety Guidelines
OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES SAFETY GUIDELINES Electrical Safety Power Tool & Machinery Use & from moving parts in the machine, or they WARNING could become caught therein. Care • DO NOT use the power tool or machinery • Always remain alert and DO NOT operate in rainy conditions or wet areas where the •... -
Page 5: Always Use Common Sense
OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES SAFETY GUIDELINES • Service Thicknesser/Planer Specific cutting blades, and machine controls can Do not distract or startle an operator while be seen clearly. Position or shade lighting they are using woodworking equipment. Safety • Have your tools and machinery serviced sources so that they do not shine in the oper- •... -
Page 6: Assembly
OPERATION MANUAL OPERATION MANUAL ASSEMBLY ASSEMBLY Tilting Fence Dust Extraction – Planer WARNING • • Attach the rear tilting fence (B) using the two Remove the nut and washer (E) from the dust hex bolts (C) provided. extraction chute (F). Remove the plug from the socket before NOTE: The machine is fitted with safety carrying out any adjustment, servicing,... -
Page 7: Operation
OPERATION MANUAL OPERATION MANUAL ASSEMBLY OPERATION Workpiece Guide — Planer Dust Extraction — Thicknesser NOTE: The switch has an emergency stop WARNING button. To activate, press button (T) when • • The workpiece guide (I) is used to guide Place the dust extraction chute (N) (Fig.11) cover (U) is closed. -
Page 8: Best Practices
OPERATION MANUAL OPERATION MANUAL OPERATION OPERATION • • Best Practices The rear support fence can be tilted 0–45 Start the planer/thicknesser by pressing the degrees depending on the chosen applica- green button marked “I” on the safety switch. • Attach the outlet on the dust extraction port tion. -
Page 9: Maintenance
OPERATION MANUAL OPERATION MANUAL MAINTENANCE TROUBLESHOOTING WARNING FAULT POSSIBLE CAUSE SUGGESTED SOLUTION Machine not plugged in Plug in the machine Always be sure that the tool is switched Fuse blown Replace fuse. off and unplugged before attempting to Machine will not start. perform any inspection or maintenance. -
Page 10: Exploded Parts List
TSTH08 EXPLODED VIEW & PARTS LIST OPERATION MANUAL OPERATION MANUAL EXPLODED PARTS LIST EXPLODED PARTS LIST Motor Pulley Barrier Chip Hang Rod 5 Flat Washer X25 Gear Crank Connector Stopple Plate X36 5 Spring Washer X48 9 Retaining Ring Crank Knob Washer X19 M5×12 Screw X5...
