Summary of Contents for Tool Shed TSDBS

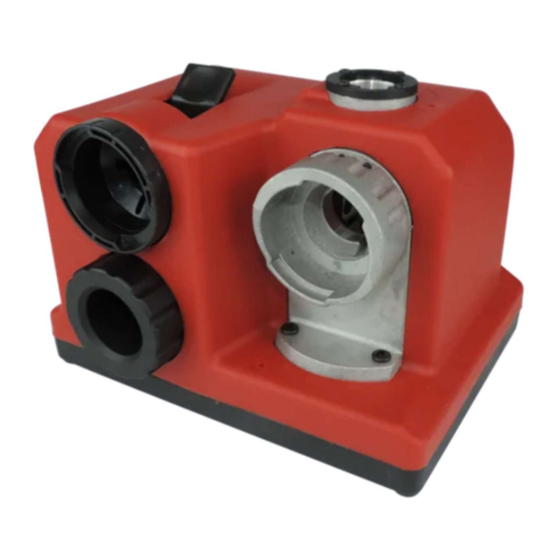

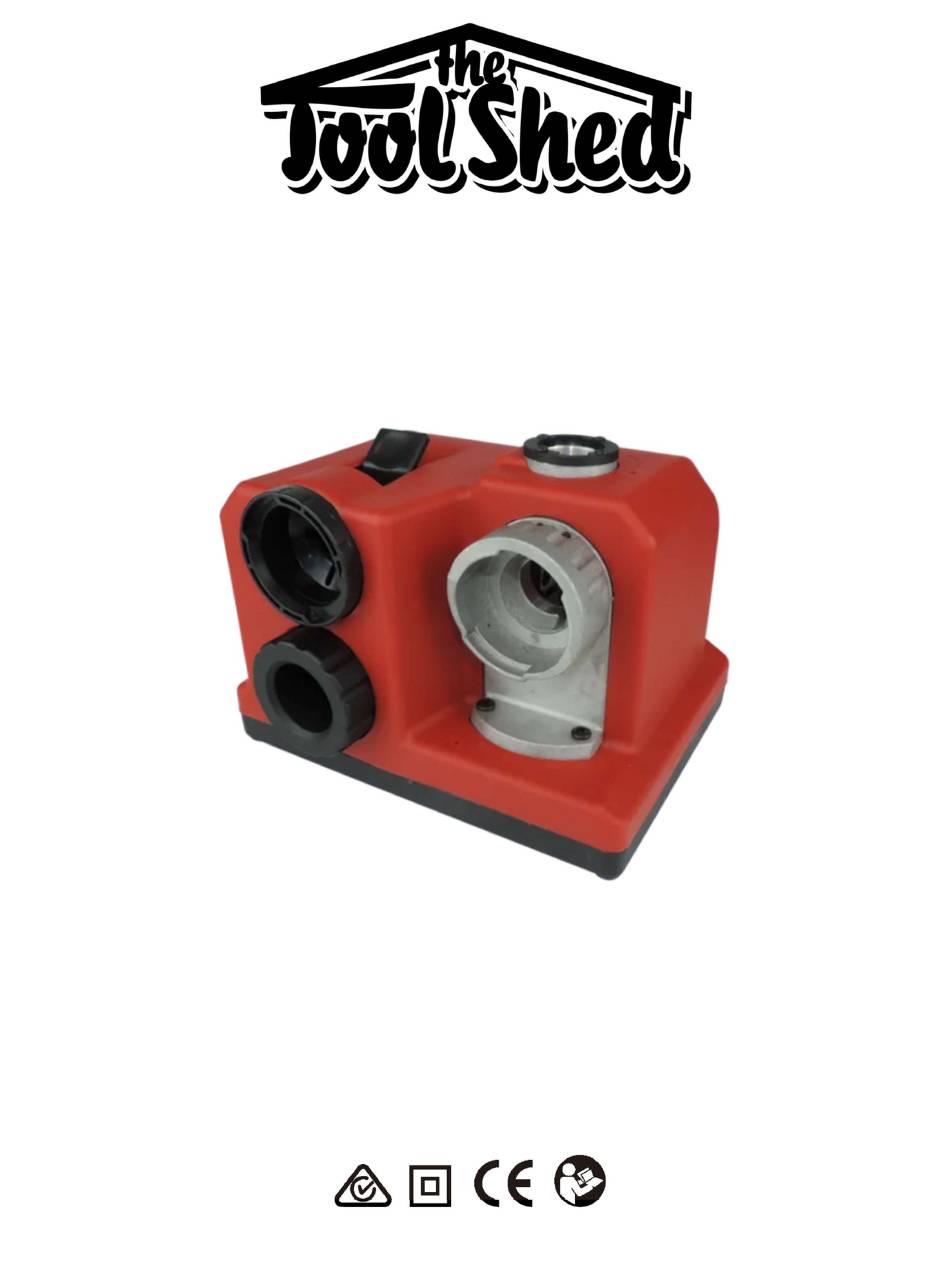

- Page 1 Electric Drill Bit Sharpener TSDBS www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT DETAILS PRODUCT Electric Drill Bit Sharpener MODEL NO. TSDBS ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. - Page 3 OPERATION MANUAL C O N T E N T S: Specifications ............................4 General Safety ............................. 5 Operation ............................7 Cleaning ............................. 10 Parts List ............................10 www.thetoolshed.co.nz...
-
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Voltage 230v / 50Hz Power Speed 4200RPM Stone 80 grit diamond Drill Sizes 3mm - 13mm Min. Length 85mm www.thetoolshed.co.nz... -
Page 5: General Safety Guidelines
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. - Page 6 OPERATION MANUAL Avoid body contact with grounded or earthed surfaces. Surfaces such as radiators, ranges, pipes, and refrigerators can increase risk of electric shock due to your body being earthed or grounded. POWER TOOL AND MACHINERY USE AND CARE Use the correct tool for the job. Forcing a tool to do a job it was not designed for increases the risk of accident or injury.
-
Page 7: Operation
OPERATION MANUAL OPERATION 1. Loosely insert your drill bit into the positioning sleeve. 2. Hold back the toggle and position the sleeve into the depth adjustment cylinder. Push the drill bit in as far as it will go. www.thetoolshed.co.nz... - Page 8 OPERATION MANUAL 3. Release the toggle while rotating the drill bit so that it grips the flutes of the drill bit firmly. 4. Tighten the rear of the sleeve to hold the bit in position 5. Turn the sharpener on and place the sleeve into the sharpening cylinder. www.thetoolshed.co.nz...
- Page 9 OPERATION MANUAL 6. Rotate the sleeve back and forth until there is minimal contact with the grinding wheel. 7. Remove the sleeve from the cylinder, rotate it 180°, put it back into the cylinder, and repeat the process. FOR SPLIT POINT SHARPENING 1.
-
Page 10: Parts List
OPERATION MANUAL CLEANING Make sure to keep the surface of your unit free of grit, dirt, and grease. Use soapy water or non-toxic solvents. Do not use petroleum-based solvents. Keep air vents free of foreign matter at all times. PARTS LIST www.thetoolshed.co.nz... - Page 11 OPERATION MANUAL Part No. Description Qty. Part No. Description Qty. Top Housing Cover Button Cushion Screw Base Spring Leaf Screw Screw Dust Cap Terminal Cord Fixing Shelf Connector Board Screw Clamp Spring Screw Grinding Wheel Bracket Connector Stand Socket Screw Positioner for Blade Screw Blade Holder...
