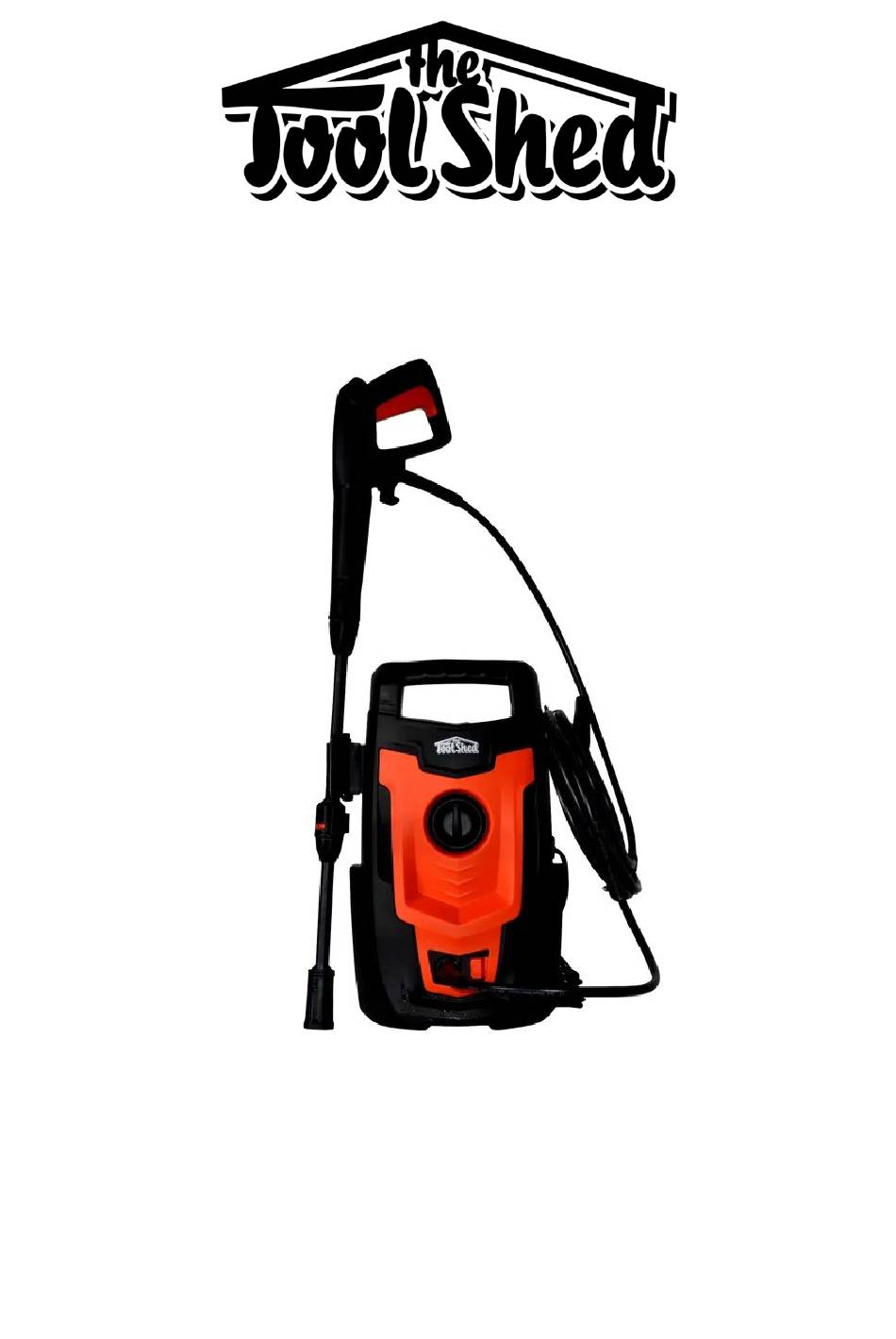

- Page 1 WATER BLASTER 1200PSI TSWB4 www.thetoolshed.co.nz...
-
Page 2: Product Details

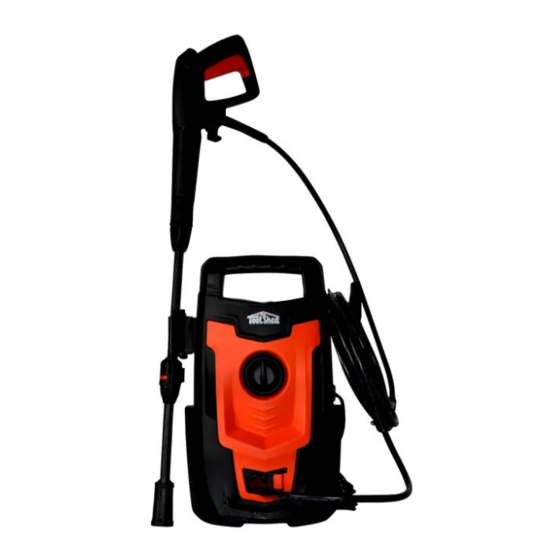

PRODUCT DETAILS PRODUCT ToolShed Water Blaster 1200PSI 5.5L/Min MODEL NO. TSWB4 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 3: Table Of Contents
OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................4 Safety Information ..........................5 Assembly ..............................7 Operation ..............................9 Cleaning & Storage ..........................11 Cleaning Tips ............................12 Troubleshooting ........................... 13 www.thetoolshed.co.nz... -
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Water Pressure 1200 PSI Litres Per Minute Weight 6.2kg Hose Length Dimensions 300 x 260 x 460mm IDENTIFICATION Power cord ON/OFF switch High-pressure hose Power cable hook Adjustable nozzle Gun & accessories holder Extension wand 10 Water inlet with filter 11 Cleaning pin Handle www.thetoolshed.co.nz... -
Page 5: Safety Information
OPERATION MANUAL IMPORTANT SAFETY INFORMATION NEVER point the high-pressure nozzle at people or animals. NEVER drink alcohol or use drugs while operating the pressure cleaner. NEVER operate the pressure cleaner while standing in water. NEVER touch the electrical plug with wet hands. NEVER let electrical connections rest in water. - Page 6 OPERATION MANUAL Do not leave the pressure cleaner unattended while the power switch is ON. Keep water spray away from electrical wiring or it may result in electric shock. PROPER USE OF THE PRESSURE CLEANER Operate the pressure cleaner at no more than the fluid pressure rated for the pressure cleaner.
-
Page 7: Assembly
OPERATION MANUAL ASSEMBLY 1. Insert the extension wand (C) into the gun (E). Push and turn the extension wand (C) clockwise onto the gun (E) until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the gun. - Page 8 OPERATION MANUAL 4. Attach the high-pressure hose (F) to gun (E). Insert and quick-connect it tightly to avoid leakage. When the pieces are joined properly, you cannot separate the two components by pulling straight out from the water outlet. 5. Insert the detergent nozzle (J) into the gun (E). Push and turn the detergent nozzle (J) clockwise onto the gun (E) until hand tight to lock it into place.
-
Page 9: Operation
OPERATION MANUAL OPERATION This unit is intended to be used with cold water only. Do not use hot water in this pressure cleaner. Starting Up After connecting the pressure cleaner to your cold-water supply, proceed as follows: 1. Open the water supply valve completely. 2. - Page 10 OPERATION MANUAL Adjustable Spray Nozzle The adjustable nozzle will allow you to use any variety of spray patterns from a full fan spray to a direct stream spray. When using the pressure washer to clean wood decks, siding, vehicles, etc., always start using the fan spray and begin spraying from a minimum 36”...
-
Page 11: Cleaning & Storage
OPERATION MANUAL CLEAN UP & STORAGE When finished using the pressure cleaner, follow these steps to shut down the unit: 1. Turn the pressure cleaner to the OFF position. 2. Turn off the water supply. 3. Before disconnecting the high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water. -
Page 12: Cleaning Tips
OPERATION MANUAL CLEANING TIPS WARNING: Always test the spray in an area free and clear of people and objects before you spray at the intended cleaning surface. Wood & Vinyl Decks Rinse the deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure. -
Page 13: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING Problem Probable Cause Solution When the switch is in the ‘I’ Electrical socket is faulty. Check plug, socket, and fuses. position, the machine will not Voltage is inadequate. Check voltage. start. Washer is not plugged in. Plug in the power cord. Water inlet filter is clogged.
