THICKNESSER / PLANER BENCH TOP
TSTH08
www.thetoolshed.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSTH08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tool Shed TSTH08

Summary of Contents for Tool Shed TSTH08

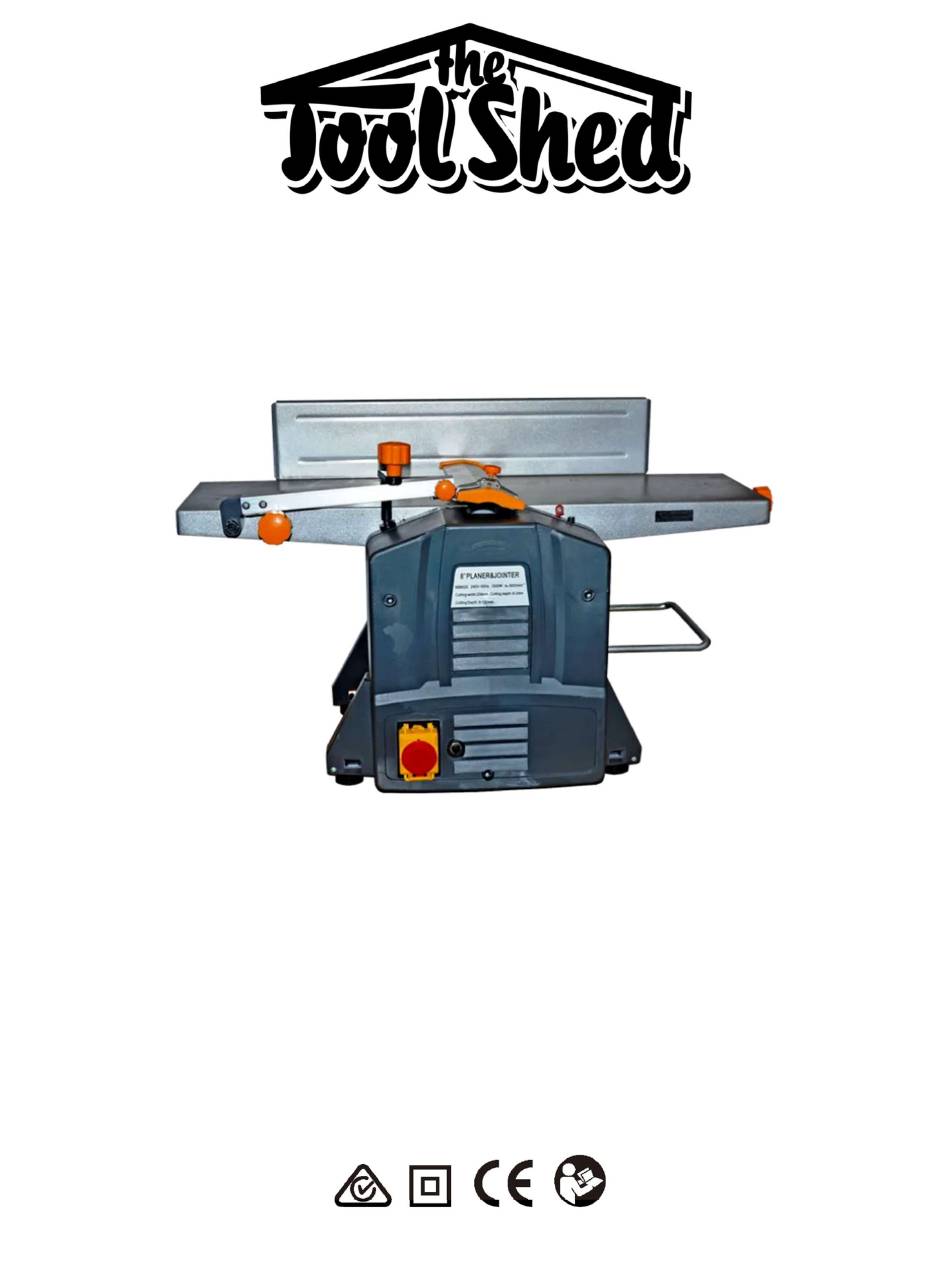

  • Page 1 THICKNESSER / PLANER BENCH TOP TSTH08 www.thetoolshed.co.nz...

  • Page 2: Product Details

    PRODUCT DETAILS PRODUCT Thicknesser / Planer Bench Top MODEL NO. TSTH08 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice.

  • Page 3: Table Of Contents

    OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Identification ............................5 Important Information ........................... 6 Additional Safety ............................ 7 Assembly ..............................8 Operation & Use ........................... 10 Maintenance ............................12 Troubleshooting ........................... 13 www.thetoolshed.co.nz...

  • Page 4: Specifications

    OPERATION MANUAL SPECIFICATIONS Planer Cutting depth 0 - 3mm Max. cutting width 204mm Table dimensions 740mm x 210mm Thicknesser Work piece thickness 5 – 120mm Cutting depth 0 – 2mm Max. cutting width 204mm Feed rate 8m per minute Motor size 1500w Dust extraction size 100mm...

  • Page 5: Identification

    OPERATION MANUAL IDENTIFICATION 1. Thicknesser feed port Hexagon key 2. Planing table 10. Workpiece paddles 3. Sliding/tilting fence 11. Blade setting tool 4. Height adjustable planer feed table 12. On / off switch 5. Table height adjustment knob 13. Thicknesser outlet port 6.

  • Page 6: Important Information

    OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean.

  • Page 7: Additional Safety

    OPERATION MANUAL Avoid body contact with grounded or earthed surfaces. Surfaces such as radiators, ranges, pipes, and refrigerators can increase risk of electric shock due to your body being earthed or grounded. MACHINERY USE AND CARE Use the correct tool for the job. Forcing a tool to do a job it was not designed for increases the risk of accident or injury.

  • Page 8: Assembly

    OPERATION MANUAL ASSEMBLY NOTE: Remove the plug from the socket before carrying out adjustment, servicing, or maintenance. WARNING: Due to the weight of this product, seek assistance when lifting/moving it. Never lift this product using the worktables. Feet (Fig.1) – Attach the rubber feet (A) using the four hex bolts provided.
  • Page 9 OPERATION MANUAL Once the extraction chute is fully seated on the bed, raise the bed to the highest point until it is completely nestled between the bed and the underside of the planing table. With the table at the highest point, screw on the nut and washer which was removed in Fig.4.

  • Page 10: Operation & Use

    OPERATION MANUAL OPERATION & USE NOTE: Remove the plug from the socket before carrying out adjustment servicing or maintenance. Any portion of the cutter block not being used must be guarded. PLANER (Fig.13&17) – Turn the planer height adjustment knob (Q) to select the desired height of the bed.
  • Page 11 OPERATION MANUAL Start the planer/thicknesser by pressing the green button marked “I” on the safety switch. NOTE: The switch has an emergency stop button. To activate press button (T) when cover (U) is closed. Feed the workpiece slowly into the thicknesser port, resting it on the thicknesser bed.

  • Page 12: Maintenance

    OPERATION MANUAL MAINTENANCE NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. BLADE REMOVAL, REPLACEMENT & SET UP Blade Removal Loosen blade and blade holder retaining bolts (AA). Slide out blade and clean bearings and blade holder using an oily cloth. Blade Alignment Place blade alignment tool over blade roller (AB).

  • Page 13: Troubleshooting

    OPERATION MANUAL TROUBLESHOOTING Trouble Probable Cause Remedy Machine will not start. 1. Machine not plugged in. 1. Plug in the machine. 2. Fuse blown. 2. Replace fuse. 3. Cable damaged. 3. Replace cable. 4. Incorrectly set up. 4. Double check micro- switch/selector switch positions.
