Summary of Contents for Tool Shed TSBC6

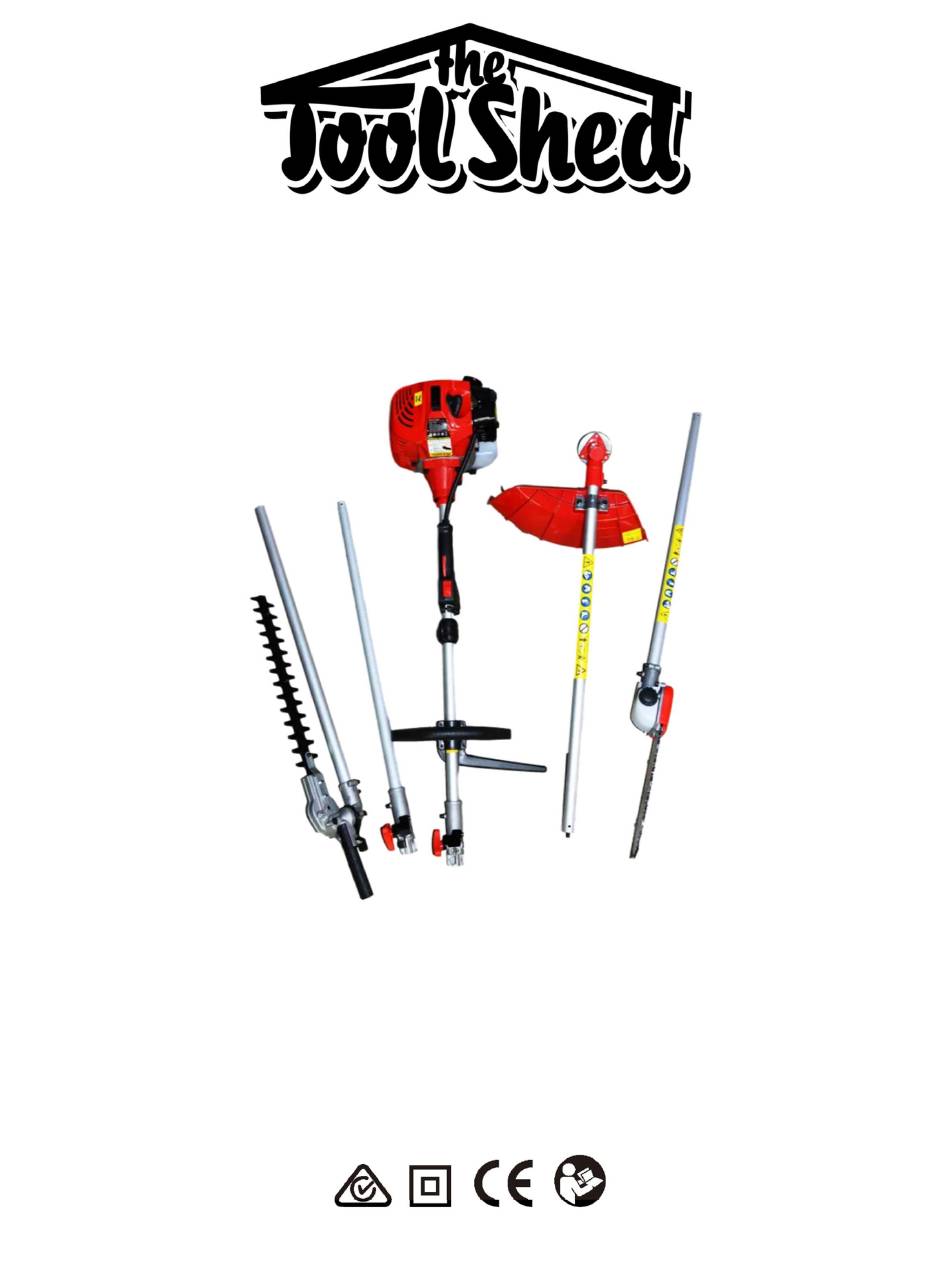

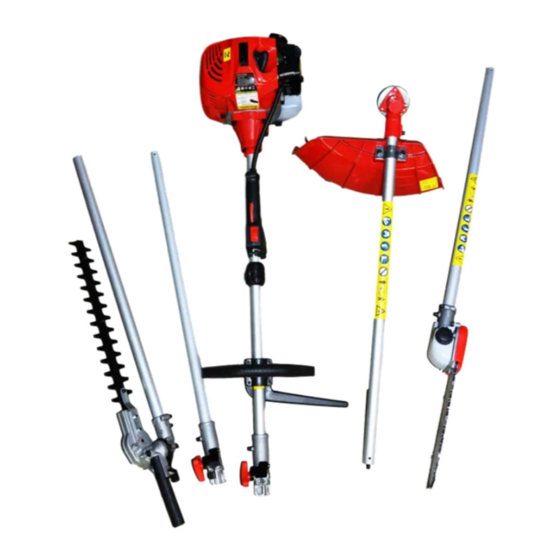

- Page 1 4-IN-1 PETROL POWERED GARDEN TOOL TSBC6 www.thetoolshed.co.nz...
- Page 2 PRODUCT DETAILS PRODUCT 4-in-1 Petrol Powered Garden Tool MODEL NO. TSBC6 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice.
-
Page 3: Table Of Contents
OPERATION MANUAL C O N T E N T S: Specifications ............................4 Identification ............................4 Safety Instructions..........................5 Assembly ..............................8 Operation .............................. 13 Maintenance ............................19 Troubleshooting ........................... 25 THIS 4-IN-1 PETROL POWERED GARDEN TOOL HAS A 2 STROKE PETROL ENGINE AND THE FUEL FOR THIS ENGINE NEEDS TO BE MIXED AT A RATIO OF 25-1. -
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS CC Rating 42.7 Power 1.1KW Fuel Mixture 25-1 Weight 6.6KG Fuel Capacity 1.2L IDENTIFICATION Engine unit 11 Air filter Saw chain Shoulder harness 12 Choke Cutting unit Handle 13 Spark plug cap Adjusting handle Extension tube 14 Switch Adjusting handle lock lever Hedge trimmer head... -
Page 5: Safety Instructions
OPERATION MANUAL IMPORTANT INFORMATION WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. GENERAL SAFETY GUIDELINES This machine can cause serious injury. Read the instructions carefully for the correct handling, preparations, maintenance, and starting and stopping of the machine. - Page 6 OPERATION MANUAL Check that the machine works properly and make sure that the chain rail or hedge trimmer sits tightly and properly. Ensure that the ON/OFF switch works properly. Do not operate the machine with a damaged or extensively worn cutting blade. The machine will vibrate during operation which may cause screws and parts to loosen.
- Page 7 OPERATION MANUAL TRANSPORT AND STORAGE When you finish cutting in one location and wish to continue work in another spot, turn off the engine, lift the unit, and carry it, paying attention to the blade. When transporting or storing the machine, always fit the cutting device guard or guide bar cover.
-
Page 8: Assembly
OPERATION MANUAL ASSEMBLY JOINT ATTACHMENT 1. Press the lock lever down. 2. Insert the attachment to the main shaft. Fix the lock lever into the hole. 3. Tighten the knob bolt securely. www.thetoolshed.co.nz... - Page 9 OPERATION MANUAL INSTALLING THE HANDLE 1. Insert the barrier handle to the top handle. 2. Fasten the four internal hexagon screws with a spanner. CHAIN TENSION SET UP WARNING: The saw chain has very sharp edges. Use protective gloves for safety. Always pay attention to the chain tension.
- Page 10 OPERATION MANUAL 2. Turn the adjusting screw until the chain fits but may be moved with ease. EXCHANGE THE BAR OR SAW CHAIN 1. Unscrew the fixing nut and remove the chain wheel guard. 2. Remove the saw chain and guide bar. www.thetoolshed.co.nz...
- Page 11 OPERATION MANUAL INSTALLING THE GUIDE BAR AND SAW CHAIN 1. Place the sawing chain onto the sawing rail. 2. Position the guide bar so that the chain tensioning studs projects into the guide bar. Ensure the saw chain runs in the correct direction. 3.
- Page 12 OPERATION MANUAL BRUSH CUTTER SET UP 1. Press the lock lever down. 2. Insert the attachment to the main shaft. Fix the lock lever into the hole. 3. Tighten the knob bolt securely. BRUSH CUTTER SET UP The process is the same as above. www.thetoolshed.co.nz...
-
Page 13: Operation
OPERATION MANUAL OPERATION BEFORE OPERATION CHECKS For your safety, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the engine to check its condition. Be sure to correct any problem you find before use. - Page 14 OPERATION MANUAL 4. Move the choke lever to the closed position. 5. Set the stop switch to the ‘START’ position. Press down the throttle lock. 6. While holding the unit firmly, pull out the starter rope quickly until the engine fires. 7.
- Page 15 OPERATION MANUAL STOPPING THE ENGINE 1. Release the throttle and run the engine for half a minute. 2. Shift the stop switch to the STOP position. WARNING: Except for an emergency avoid stopping the engine while pulling the throttle lever. When it doesn’t stop at the switch, move the choke lever to the closed position.
- Page 16 OPERATION MANUAL ADJUSTING OIL FLOW RATE Never fill the oil reservoir nor adjust the oiler with the engine running. An increase in bar oil flow rate will speed oil consumption, requiring more frequent checks on the oil reservoir. To ensure sufficient lubrication, it may be necessary to check the oil level more frequently than at fuel tank refills.
- Page 17 OPERATION MANUAL POLE HEDGE TRIMMER OPERATION DANGER: This product is equipped with extremely sharp blades, and when used improperly these blades can be extremely dangerous. Improper handling can cause accidents, which may in turn lead to a serious injury or death. For this reason, you should always be careful to follow the following instructions when using your trimmer.
- Page 18 OPERATION MANUAL OPERATION FOR BRUSH CUTTER Working on grass areas, hold the scythe at an angle of 30 degrees and make semicircle turns to the left and right. The best results are achieved with grass 15cm high. If it is higher, it is recommended to repeat mowing several times.
-
Page 19: Maintenance
OPERATION MANUAL MAINTENANCE Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations in this owner’s manual. WARNING: Make sure the engine has stopped and is cool before performing any service or maintenance on the machine. - Page 20 OPERATION MANUAL ENGINE MAINTENANCE AIR CLEANER If the air cleaner is clogged, it will reduce the performance of the engine. Check and clean the filter element in warm soapy water as required. Dry completely before installing. If it is broken or shrunk, then replace it with a new one.
- Page 21 OPERATION MANUAL HEDGE TRIMMER MAINTENANCE BLADE When refilling the tank or resting, it often a good idea to use the time to oil the cutting blades. If a gap exists between the upper and lower blades, follow the procedure below to adjust them so they fit closer together.
- Page 22 OPERATION MANUAL POLE CHAINSAW MAINTENANCE OILING PORT Dismount the guide bar and check the oiling port for clogging. GUIDE BAR Remove sawdust in the bar groove and the oiling port. The bar rail should always be a square. Check for wear of the bar rail. Apply a ruler to the bar and the outside of a cutter.
- Page 23 OPERATION MANUAL SAW CHAIN MAINTENANCE It is very important for smooth and safe operation to keep the cutters always sharp. Your cutters need to be sharpened when: Sawdust becomes powder-like You need extra force to saw The cut isn’t straight Vibration increases Fuel consumption increases BE SURE TO WEAR SAFETY GLOVES...
- Page 24 OPERATION MANUAL TRANSMISSION The reduction gears are lubricated by multipurpose, lithium-based grease in the transmission. Supply new grease every 25 hours or use more or often depending on the job condition. When adding lubricant, use a grease gun to insert lubricant into the three grease nipples located on the transmission.
-
Page 25: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING STARTING FAILURE Check Probable Causes Action Fuel Tank Incorrect fuel Drain it and use correct fuel Fuel Filter Fuel filter is clogged Clean Carburettor adjustment screw Out of normal range Adjust to normal range Sparking (no spark) Spark plug is fouled/wet Clean/Dry Plug gap is incorrect...
