Specification; Items Supplied; Proper Use - Sealey SBC1 Manual

Keep children and unauthorised persons away from the working area.
9
Ambient Temperature 20°C - 40°C.
9
DO NOT dis-assemble the charger for any reason. The charger must only be checked by qualified service personnel.
8
DO NOT try to charge a non-rechargeable battery.
8
DO NOT try to start engine when charger is connected to battery.
8
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow
‰
them to touch the battery terminals.
DO NOT allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
8
DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to negative.
8
DO NOT pull the cables or clamps from the battery terminals.
8
DO NOT use the charger outdoors, or in damp, or wet locations and DO NOT operate within the vicinity of flammable liquids or gases.
8
DO NOT use charger inside vehicle or inside engine compartment.
8
Ensure there is effective ventilation to prevent a build-up of explosive gases.
9
DO NOT use the charger for a task for which it is not designed.
8
WARNING! DO NOT simultaneously charge batteries of different capacities or discharge levels.
‰
WARNING! DO NOT charge a frozen battery.
‰
WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating. Use only Sealey genuine parts.
‰
When not in use, store the charger carefully in a safe, dry, childproof location.
9
NOTE: Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack
of experience and knowledge can use the appliance, if they have been given supervision or instruction concerning use of the
appliance in a safe way to understand the hazards involved.
WARNING! Children shall NOT play with the appliance.
‰
Cleaning and user maintenance on the appliance shall not be made by children without supervision.
9
The appliance shall be disconnected from its power source during service and when replacing parts.
9
During charging, the battery must be placed in a well-ventilated area.
9
The battery terminal not connected to the chassis has to be connected first. The other connection is to be made to the chassis, remote
9
from the battery and fuel line. The battery charger is then to be connected to the supply mains.
After charging, disconnect the battery charger from the supply mains. Then remove the chassis connection and then the battery
9
connection.
The number of batteries that can be charged at any one time is 1.
9
Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand
9
over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due
to a failure to follow these instructions and the safety instructions.
2. INTRODUCTION
Fully automatic 1A 6/12V 5-stage intelligent battery charger, designed for charging and maintaining a variety of batteries including
VRLA (Lead Acid), GEL, AGM/EFB and Leisure on 6/12V systems. Suitable for trickle charging a variety of batteries, the charger reacts
continuously to battery condition and delivers whatever charge rate is required. Microprocessors constantly regulate the voltage pattern
allowing the battery to be recharged fully and safely without fear of overcharging. Once fully charged 'float' mode is activated and the
charger enters a monitoring status. Supplied with SAE "quick" connectors on leads and battery terminal eyelets. Safety features include
reverse polarity, short circuit, over temperature, over voltage and overcharging protection. Easy-to-read LED indicator will illuminate
during the charging process.
3.

SPECIFICATION

MODEL NO.
Cable & Clamp Length:
Nett Weight:
Plug Type:
Output:
Zero Volt Charging:
Battery Support/DC Supply Mode:
Supply (Current):
Supply (Voltage):
Charger Type: Traditional (T) Intelligent (HF):
4.

ITEMS SUPPLIED

4.1. Open the packaging and take out the equipment with care.
4.1.1. Remove the packaging material and any packaging and/or
transportation braces (if available).
4.1.2. Check to see if all items are supplied. (See fig.1).
4.1.3. Inspect the equipment and accessories for transport damage.
4.1.4. If possible, please keep the packaging until the end of the
guarantee period.
▲ DANGER! The equipment and packaging material are not toys.
DO NOT let children play with plastic bags, foils or small parts.
8
There is a danger of swallowing or suffocating!
4.2.

PROPER USE

4.2.1. The charger is designed for charging non-maintenance-free or
maintenance-free 6V/12V lead acid batteries (wet / Ca/Ca / EFB
batteries) and for lead gel and AGM batteries which are used in
motor vehicles.
© Jack Sealey Limited
SBC1 Battery Range:
1.5m Max Size Battery in 12hrs from Discharged:
0.35kg Output Charge Peak:
3-Pin BS VRLA (Lead Acid):
6/12V GEL:
No AGM/EFB:
No Lithium:
13A Leisure (Deep Discharge):
230V IP Rating:
HF

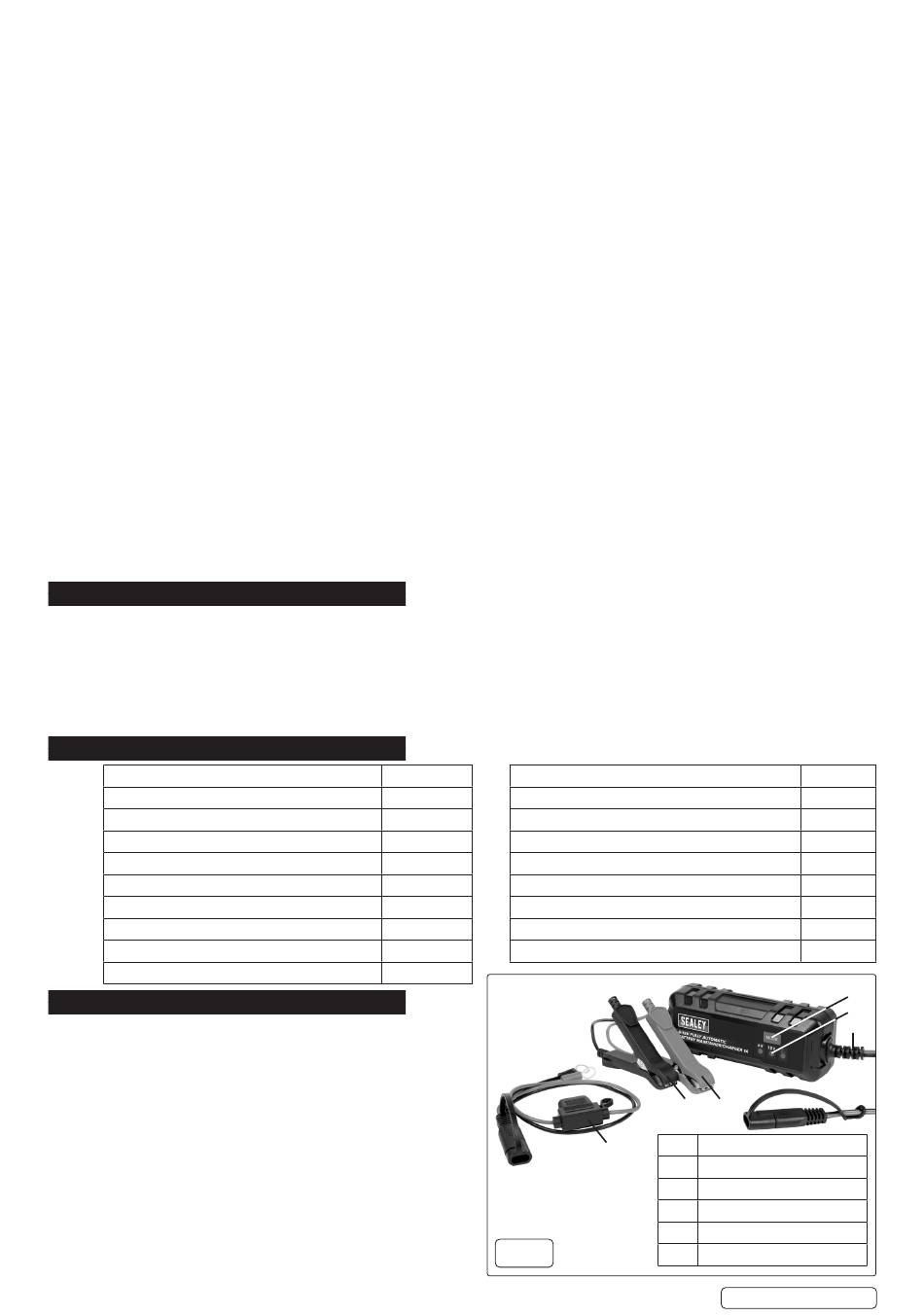

fig.1
Original Language Version
4
5
1 Mode
6
2 LED display
3 Mains power cable
4 Charging cable, red (+)
5 Charging cable, black (-)
6 O-ring with Fuse
SBC1 Issue 1 08/11/24
4-30Ah
20Ah
1A
Yes
Yes
Yes
No
Yes
IP65
1
2
3
