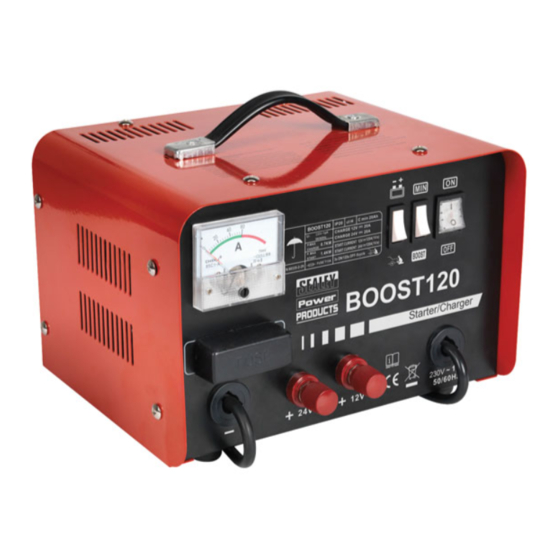

Sealey BOOST120 Instruction Manual

BOOST120 BOOST140 BOOST160 BOOST180
MoDEL no's
thank you for purchasing a sealey product. Manufactured to a high standard this item will give you years of trouble free performance if these instructions are
carefully followed and the product is correctly maintained.
IMPORTANT: PLEASE READ ThESE INSTRUcTIONS cAREFULLY. NOTE ThE SAFE OPERATIONAL REQUIREMENTS, WARNINgS AND cAUTIONS.
USE ThIS PRODUcT cORREcTLY AND WITh cARE FOR ThE PURPOSE FOR WhIch IT IS INTENDED. FAILURE TO DO SO MAY cAUSE DAMAgE
AND/OR PERSONAL INJURY AND WILL INVALIDATE ThE WARRANTY. PLEASE RETAIN ThESE INSTRUcTIONS FOR FUTURE USE.
1. SAFETY INSTRUcTIONS
1.1. IMPORTANT: small battery chargers are supplied with plugs fitted. Boost chargers and starter/chargers however can draw more than
13Amps from the mains supply whilst cranking large engines. for this reason, boost chargers are not supplied with plugs fitted. We
recommend that for maximum performance your boost charger is plugged into a 30Amp supply and we further recommend that you
consult an electrician in order to fit an appropriate plug.
the following Electrical safety section must also be read and understood when using this equipment.
1.2. Electrical Safety
WARNINg! It is the responsibility of the owner and the operator to read, understand and comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any
other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate
safety devices. A residual current circuit Breaker (rccB) should be incorporated in the main distribution board. We also recommend
that a residual current Device (rcD) is used. It is particularly important to use an rcD with portable products that are plugged into a
supply which is not protected by an rccB. If in any doubt consult a qualified electrician. You may obtain a residual current Device by
contacting your sealey dealer.
You must also read and understand the following instructions concerning electrical safety:
1.2.1. the Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a
qualified electrician, using a Portable Appliance tester (PAt), at least once a year.
1.2.2. the health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.2.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. see 1.2.1. and 1.2.2.
and use a Portable Appliance tester.
1.2.4. Ensure that cables are always protected against short circuit and overload.
1.2.5. regularly inspect power supply cables and plugs for wear or damage and check all connections
to ensure that none are loose.
1.2.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.2.7. DO NOT pull or carry the appliance by the power cable.
1.2.8. DO NOT pull the plug from the socket by the cable.
1.2.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a qualified electrician. When a Bs 1363/A uK 3 pin plug is damaged, cut
the cable just above the plug and dispose of the plug safely. fit a new plug according to the
following instructions (uK only) and see right.
subject to 1.1. above, the following details the fitting of a 13Amp plug since a 13Amp supply will be
adequate when charging and when starting small engines. no responsibility is accepted in the event
that the product is misused and/or used on a 13Amp supply when a 30Amp supply is required.
a) connect the gREEN/YELLOW earth wire to the earth terminal 'E'.
b) connect the BROWN live wire to the live terminal 'L'.
c) connect the BLUE neutral wire to the neutral terminal 'N'.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol
to rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.2.10. Products which require more than 13Amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket
with your electrician.
1.2.11. If an extension reel is used it should be fully unwound before connection. A reel with an rcD fitted is preferred since any appliance
plugged into it will be protected. the cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use
of 2.5mm² section cable.
1.3. general Safety
WARNING! Disconnect the charger from the mains power before servicing or performing any maintenance.

Disconnect the charger from the mains power before connecting to, or disconnecting from, the battery.

Maintain the charger in good condition (use an authorised service agent only).

WARNING! this starter/charger has components such as switches and relays which may cause sparks or arcs. When using this

machine in a garage or workshop, make sure it is in a safe location.
Keep the charger clean for best and safest performance.

WARNING! Ensure that there are no sources of flammable ignition near the work area i.e. naked flames, cigarettes, flame heaters,

etc., because the charging process produces explosive gases.
WARNING! Ensure that the work area is well ventilated as the gases produced are flammable.

Locate the starter/charger in a suitable work area and keep the area clean and tidy and free from unrelated materials. Ensure there is

adequate lighting.
Wear approved safety eye protection (standard spectacles are not adequate).

remove ill fitting clothing. remove ties, watches, rings and other loose jewellery and contain long hair.

InstructIon MAnuAL for:
STARTER/chARgERS
, are fitted with live (brown) and neutral (blue) wires only.
Original Language Version
FUSE RATINg 13AMP
Boost120, Boost140, Boost160, Boost200 Issue: 1 - 15/05/12
