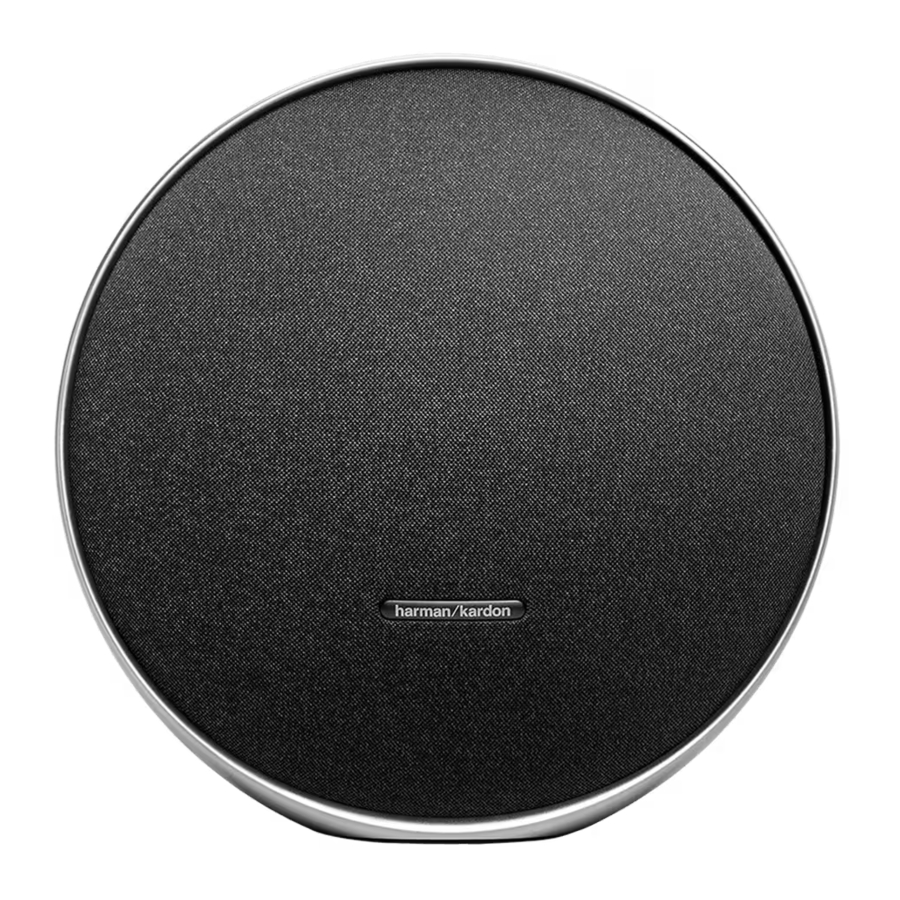

Harman Kardon ONYX STUDIO 9 Manual
WHAT'S IN THE BOX
* Power cord quantity and plug type vary by regions.
BLUETOOTH PAIRING
MUSIC STREAMING
To reboot, hold
for more than 10 seconds.
MULTI-POINT CONNECTION
* Maximum 2 devices
STEREO BOOST PAIRING
STEREO BOOST CONTROL
The stereo group will be interrupted when entering multi-speaker connection.
MULTI-SPEAKER CONNECTION
MUSIC PLAYBACK THROUGH AN AUDIO CABLE
To play music through the audio cable, disconnect Bluetooth.
CHARGING
If the speaker will not be used for a long period of time, please recharge the battery at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
POWERBANK
APP
Use the Harman Kardon One app for speaker configuration and software upgrade.
TECH SPEC
| Transducers: | Woofer 1 x 120 mm, Tweeter 3 x 20 mm |
| Rated output power: | 50 W RMS |
| Power supply: | 100 - 240 Vac, 50 Hz/60 Hz |
| Frequency response: | 50 Hz - 20 kHz (-6 dB) |
| Signal-to-noise ratio: | > 80 dB |
| Battery type: | Li-ion 17.15 Wh (equivalent to 3.63 V/4722 mAh) |
| Battery charge time: | 4 hours |
| Music play time: | Up to 8 hours (dependent on volume level and audio content) |
| Bluetooth® version: | 5.3 |
| Bluetooth® profile: | A2DP 1.4, AVRCP 1.6 |
| Bluetooth® transmitter frequency range: | 2400 MHz - 2483.5 MHz |
| Bluetooth® transmitter power: | ≤ 16 dBm (EIRP) |
| Bluetooth® transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| USB specification: | Audio playback is for US version only. For other versions, USB is for Service only. |
| USB port: | Type C |
| USB rating: | 5V/2.1A (maximum) |
| Supporting file formats: | mp3 |
| Dimensions (W x H x D): | 289.2 x 287.5 x 130 mm/11.39" x 11.32" x 5.12" |
| Weight: | 3.36 kg/7.42 lbs |
