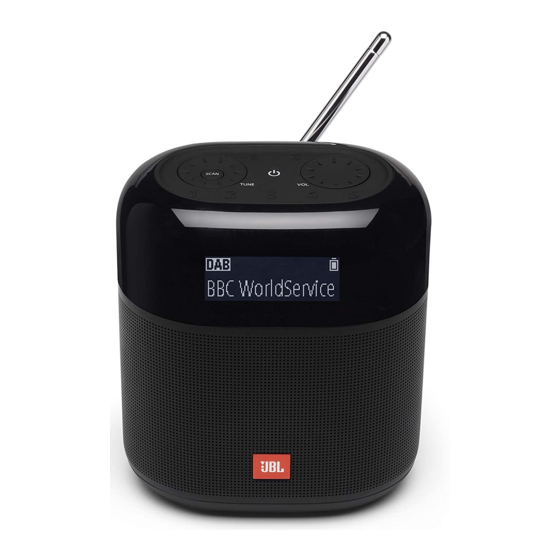

Do you have a question about the JBL TUNER XL and is the answer not in the manual?

Questions and answers

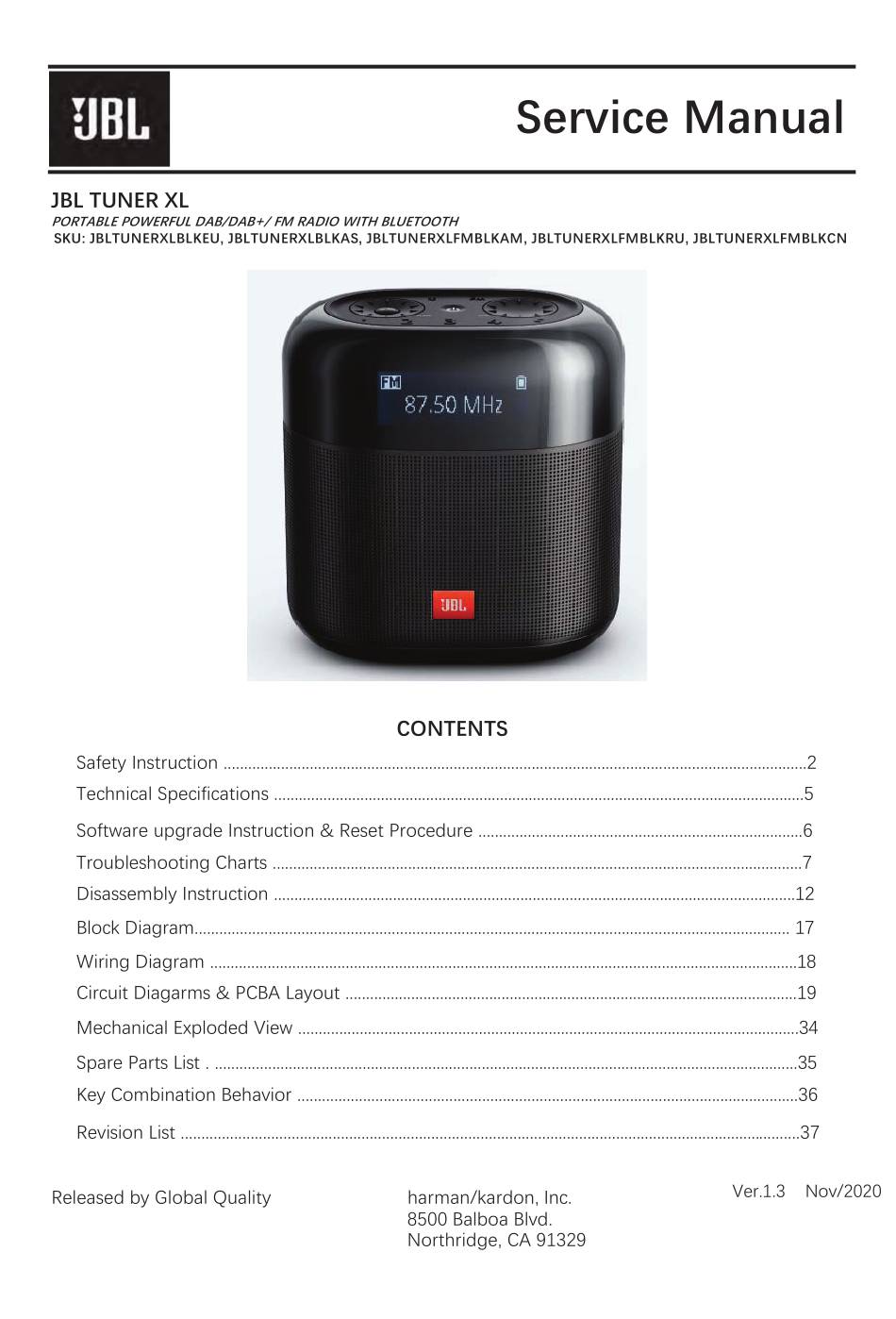

Summary of Contents for Harman Kardon JBL TUNER XL

  • Page 2 This device complies with Part 15 of the FCC Rules. Operation Cet appareil numérique de la classe B est conforme à la or repair, please contact your local Harman Kardon service is subject to the following two conditions: (1) This device norme NMB-003 du Canada.
  • Page 3 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).
  • Page 5: Technical Specifications

    >Dimensions (W x H x D ): 145 x 167 x 103 (mm) / 5.7” x 6.6” x 4.1” >Weight: 1.15 k g (2.54 lb) What’s in the box JBL Tuner XL 5V/1.2A Harman designed power adapter with fixed USB Type-C cable. (1.5m) including shielding core.
  • Page 6 1. Connect USB cable between PC and JBL TUNER XL. 2. Press the power button to power on JBL TUNER XL. 3. Long press Preset 5 & DAB (>10S), enter DAB upgrade mode. The screen will scroll “connect to PC or MAC then copy update file”.
  • Page 7 Software upgrade Instruction& Reset Procedure 6. Then you should unplug the USB and power cycle the speaker. Note: Don’t unplug USB or cut off power when burning.
  • Page 8: Troubleshooting Charts

    Troubleshooting Charts...
  • Page 9 Troubleshooting Charts Check if CN4 PIN7 Signal Source output whether OK...
  • Page 10 Troubleshooting Charts...
  • Page 11 Troubleshooting Charts...
  • Page 17 Issue Change Order Initial-Date Block Diagram Titel. JBL Tuner XL Sheet Description. Block.SchDoc Model NO A1.3 ISSUE DATE REV DATE 2019.12.26 Approver Checker Designer...
  • Page 18 PIN1 8P PH =2mm PIN1 PIN1 PIN1 PIN1 PIN1 PIN1 PIN1 PIN1 PIN1 PIN1...
  • Page 19: Boost Converter

    4.7uF/16V SPK_A_N-A 100nF/50V 10nF/50V 130K 120K GND1 GND1 GND2 GND1 BOOST_EN-A GND2 A_GND-A 600R@100MHz CHG-A NTC1-A Titel. JBL Tuner XL Sheet USB1_N-A USB1_P-A V_BAT1 USB_+5V-A Description. TUNER-XL AMP-PV201991213.SchDoc ESD05V88DULC Model NO USB1_N ESD05V88DULC FSMD110-16-R NTC2 6P PH=2.5mm 560R USB1_P ESD05V88DULC ISET A1.3...
  • Page 20 Layout Diagram View-AMP PCBA...
  • Page 21 Layout Diagram View-AMP PCBA...
  • Page 22: Audio Switch

    TP23 BT_TX GPIO13 GND4 IN1,2 BT_RX GPIO14 GND6 BT TO USB GPIO15 GND7 NC: TUNER HD1903 NO: AUX Titel. JBL Tuner XL Sheet Description. 2-BT&CHARGE-PV-20191213.SCHDOC R239 Model NO VCC_SYS IC204 FB207 AUDIO SWITCH 120K VOUT VCC_3.3V_BT 600R@100MHz A1.3 3V3 For BT...
  • Page 23 RCIN RTC3V VCC_3.3V_MCU R365 TP320 TP319 TP321 LINE_DET R366 33R TUNER- ROT1_B +3.3V R367 33R TUNER+ ROT1_A Titel. JBL Tuner XL Sheet R368 33R VOL- ROT0_B +1.2V R369 33R VOL+ ROT0_A Description. R370 USB_SW_OE HP_DET 3-DAB& LCD-PV20191213.schdoc 100nF/50V AUX_DET AUX_DET...
  • Page 24 Layout Diagram View-DAB PCBA...
  • Page 25 Layout Diagram View-DAB PCBA...
  • Page 26 V=1.65V BT400 CN402 3P PH=1.25mm VOL+ TACTSW4*4 DAB/FM400 VOL- DAB/FM EC110202P2B-HA 1-000 TACTSW4*4 POWER400 KEY PCB P_KEY1 TACTSW4*4 CN401 9P PH=1.0mm P_KEY2 Titel. JBL Tuner XL Sheet Description. KEY.SchDoc Model NO A1.3 ISSUE DATE REV DATE 2019.12.26 Approver Checker Designer...
  • Page 27 Layout Diagram View-VOL&KEY PCBA...
  • Page 28 Layout Diagram View-VOL&KEY PCBA...
  • Page 29 FB400 1K@100MHz CN03 FB401 1K@100MHz C403 2.2uF/10V 3P PH=2mm R407 5.1K FB402 1K@100MHz R408 5.1K JA4H131-22W5B-7H Titel. JBL Tuner XL Sheet A_GND R409 2.61K Description. TUNER-XL JACK.SchDoc FB403 1K@100MHz Model NO A_GND A_GND A1.3 ISSUE DATE REV DATE 2019.12.26 Approver...
  • Page 30 Layout Diagram View-AUX PCBA...
  • Page 31 Layout Diagram View-AUX PCBA...
  • Page 32 Layout Diagram View-VOL PCBA...
  • Page 33 Layout Diagram View-VOL PCBA...
  • Page 34: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW BPC200071-0001 TOP PANEL DAB/FM TUNERXL 5+16+21+ 22+24+36 ABE208490-0001 MAIN PCBA DAB TUNERXL ABE208490-0002 MAIN PCBA FM TUNERXL BPV210066-0001 ANTENNA CRADLE TUNERXL FBY202036-0002 LI-ION BATTERY TUNERXL ASDRD0000-0004 PASSIVE RADIATOR TUNERXL BPT200019-00AA MIDDLE HOUSING TUNERXL IVE290010-0001 WATERPROOF CLOTH TUNERXL ABN210193-00AA USB PCB HOLDER BLK TUNERXL ABE209170-0001...
  • Page 35 JBL TUNER XL SPARE PARTS LIST V1.4 Pos. No. Part Number Description Usage BPK208125-0001 SCAN KNOB TUNERXL BPK208124-0001 TUNE KNOB TUNERXL BPK218124-0001 VOLUME KNOB TUNERXL BPC200071-0001 TOP PANEL DAB/FM TUNERXL BPC200074-0001 TOP PANEL FM TUNERXL ABE208501-0001 KEY PCAB TUNERXL BPN200219-0001...
  • Page 36 Key Combination Behavior...
  • Page 37: Revision List

    Revision List Version 1.0 * Initial release for JBL Tuner XL. Mar. 2020 Version 1.1 * Divide Main Board into DAB and FM version, add Russia and China and APAC Retail Boxes, update descriptions for other Retail Boxes, add 2nd Rubber Foot due to silkscreen changed. May. 2020 Version 1.2...
