Summary of Contents for GTD GTD-LF300

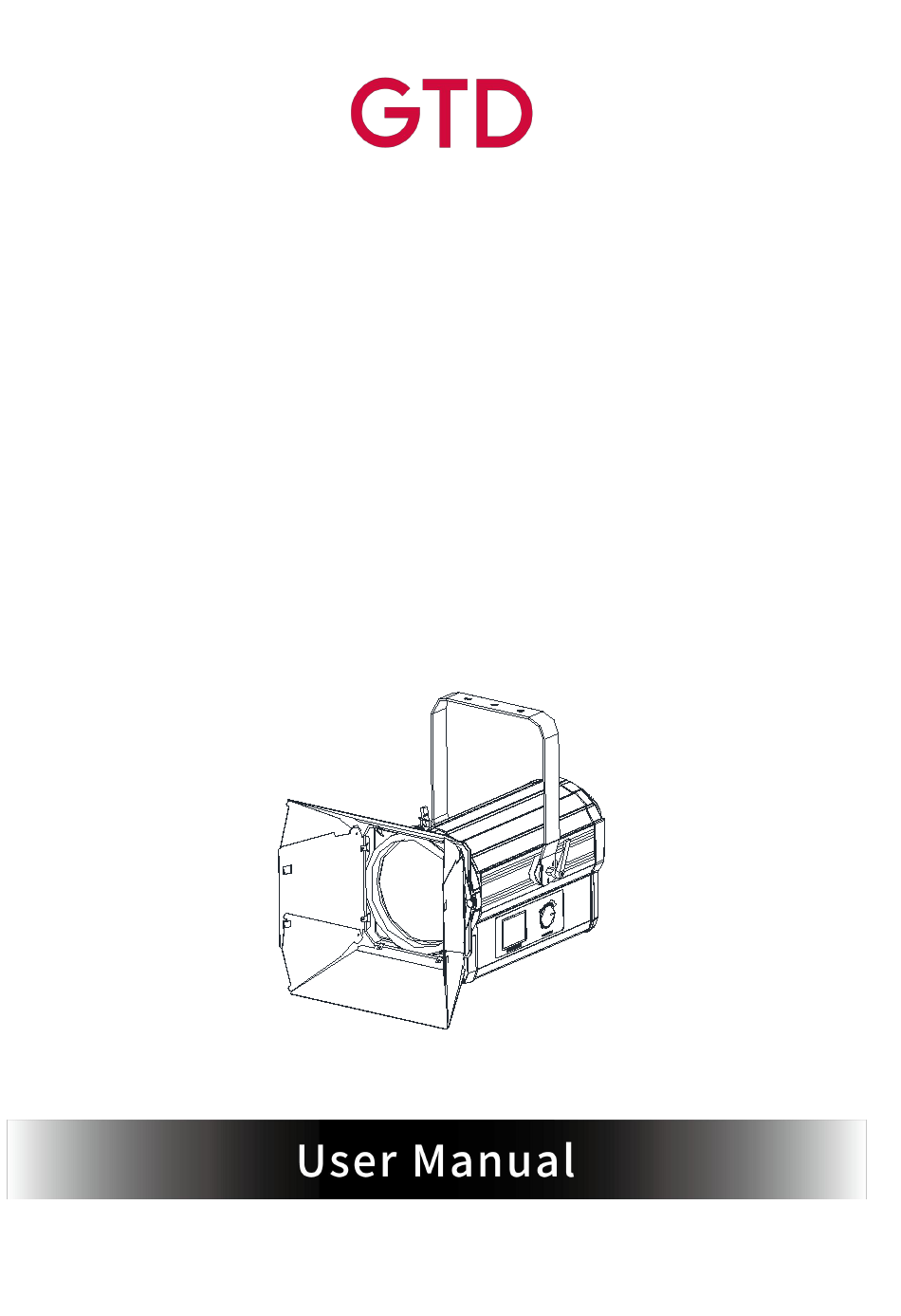

- Page 1 GTD-LF300...
- Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1Unpacking .................................5 3.2 Packing after use ..............................5 4. Installation ..................................5 4.1 Clamps installation .............................. -
Page 4: Safety Instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. - Page 5 To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts.
-
Page 6: Product Introductions
2. Production instructions 2.1 Dimensions... -
Page 7: Fixture Overview
2.2 Fixture overview Color piece Hanging bracket Light barrier Knob button Display screen Screw Screw Insurance Input Power Output Power line Power line 2.3 Accessories Item Unit Remark User Manual Clamps 117*80*24 ￠50*10KG Safety cable 5-pins signal line power line 1.5m 2.0 mm2... -
Page 8: Packing And Shipping
3. Packing and shipping 3.1 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. Photographic evidence of the damage must be provided. -
Page 9: Power/ Control Connection
Clamp Safe rope Safe rope 5. Power/ Control connection 5.1 Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually. -
Page 10: Testing
Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction GTD-LF300 Use knob-style button and display screen to set the address code and the function menu. ... -
Page 11: Technical Specification
7. Technical specification Optical Light source: LED 300W Expected average lifetime: 20000 h Color temperature correction: 5600K (CW)/3400K (WW) Lumens: 16500lm(CW) / 16000lm (WW) Zoom range： 12°- 55°（CW/WW） CRI：Ra＞95(CW/WW) Electrical Power input, nominal: AC 100-240V 50/60Hz Max. Power consumption: 349W, Max current: 3.48A, PF: ≧0.96 Power supply unit: narrow range electronic SMPS Main fuse: 6.3A Power input: Self-contained power cord... - Page 12 Other Features Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries. Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface ...
-
Page 13: Menu Structure
Celsius Temperature unit Fahrenheit Value Default Dimmer Dimmer =XXX The default value Zoom Zoom =XXX Exit Restore Default Restore to default value Yes/No Product Select GTD LF300 CW Select the model of the - Password- XXX(xx) device GTD LF300 WW... -
Page 14: Dmx Protocol
…… Exit Motor System Reset System reset Reset Zoom Reset Zoom reset Exit Channel Manual Mode Dimmer Dimmer Manual control channel Adjust =XXX value Zoom Zoom Exit =XXX Channel Mode Standard Mode Basic Mode Exit Exit Return to the previous menu 9. -
Page 15: System Wiring Diagram
10. System wiring diagram... -
Page 16: Maintenance And Troubleshooting
It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty. - Page 17 Problem Possible Cause Suggested Correction Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Channel Mode” of the fixture as required by the Mode”of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
- Page 18 Problem Possible Cause Suggested Correction can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
- Page 19 Problem Possible Cause Suggested Correction coating wearing off, damages or deformation rotating gobo wheel and color wheel Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color whee wheel.
