GTD -480 NBSW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-480 N BSW
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-480 NBSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-480 NBSW

Summary of Contents for GTD GTD-480 NBSW

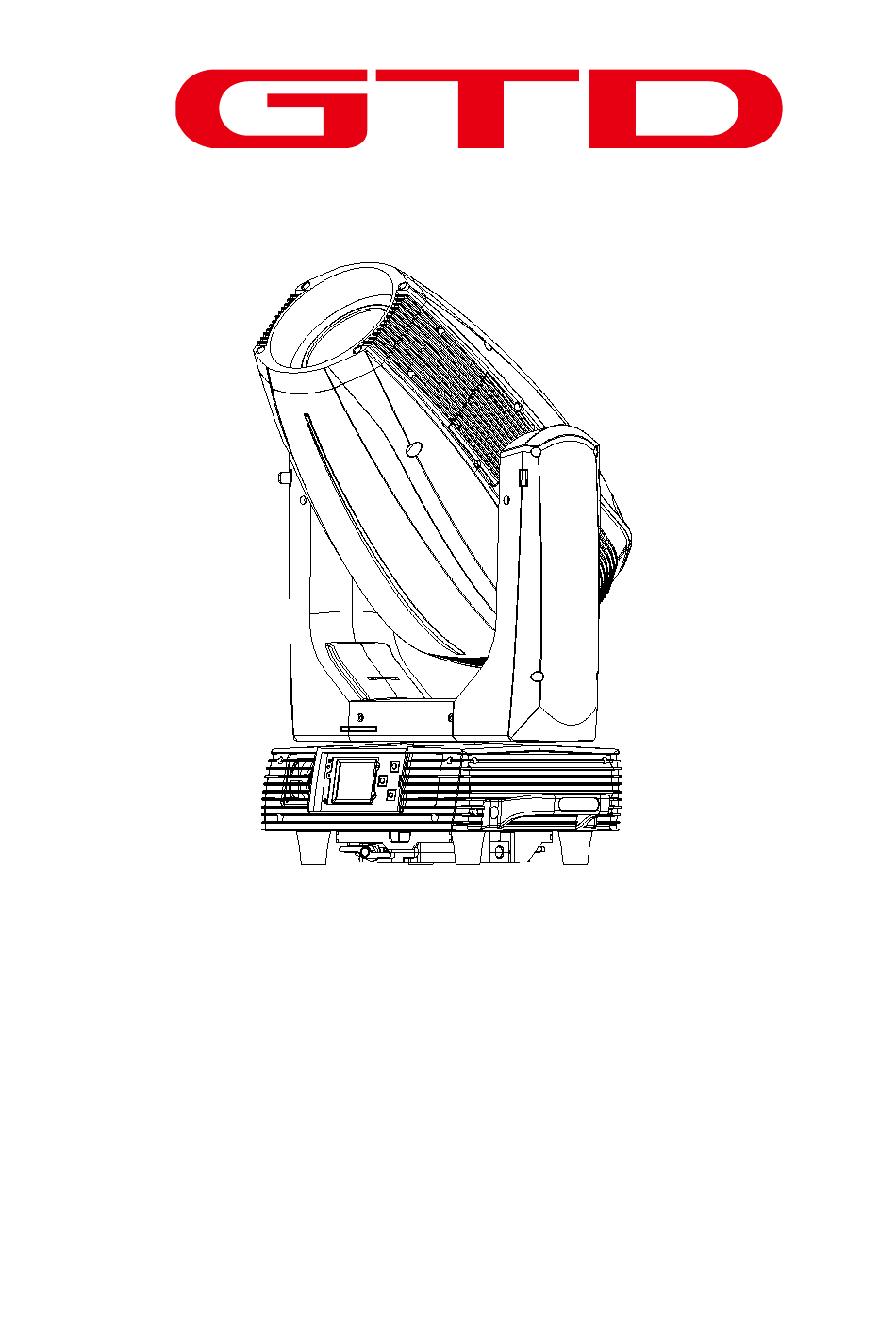

  • Page 1 GTD-480 N BSW User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions........................1 2. Product introductions......................... 3 2.1 Dimensions..........................3 2.2 Fixture overview........................4 2.3 Accessories..........................4 3. Packing and shipping........................5 3.1 Protection lock.........................5 3.2 Unpacking..........................5 3.3 Packing after use........................5 4. Installation........................... 6 4.1 Clamps installation........................6 4.2 Device installation........................6 4.3 Lamps installation........................

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by  certified technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD  manufactured parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimensions 427.7mm （16.84"） 492.5mm （19.39"） 294.3 （11.59"） 717mm 599.6mm （28.23"） （23.6"） 137.7mm （5.42"） 286.7 449.3mm （11.29"） （17.69"） 270° 270° 270°...

  • Page 7: Fixture Overview

    2.2 Fixture overview Objective lense Zoom lense Head module Focusing lens Prism module Frost module Rotating gobo wheel Gobos wheel Fixed & effecting gobo CMY moudle Colors Light source Lamp-holder Strobe moudle Uniformed glass Radiator Pan-Tilt scan Base moudle Integrated folding clamp 2.3 Accessories1 Item Unit...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The pan axis has 4 locking points and the tilt axis has 6 locking points. Tilt lock Pan lock 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Rotate and install foldable clamps which are equipped to the fixture, then the fixture can be placed on the stage or mounted on the truss which faces any direction.

  • Page 10: Lamps Installation

    4.3 Lamps installation 1. Disconnect the power, cool down the fixture, put the Tilt lock-catch in the horizontal position. 2. Dismounting the lamp: remove the rear cover with a cross screwdriver, loosen the screws of the press plate and remove the bulb. 3.

  • Page 11: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 12: Control Panel

    6. Control panel 6.1 Panel instruction 6.2 Panel operation The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address  code and functions menu. Press UP or DOWN to view or select the function menu. ...

  • Page 13: Technical Specification

    7. Technical specification Optical  Light source: MSD platinum 21R 470W Expected average lifetime: 1500 h Color temperature correction: 6700k—3200k Zoom range：BEAM: 0°～2.5°/ SPOT: 3°～ 40°/WASH: 5°～ 50° Focus: high precision glass lens, electronic linear high focus Prism: 1 eight-pointed prism, 1 eight-flat prism Frost: 1-independent frost effect,variable frost system for a soft and natural field Color ...
  • Page 14 Humidity: ≤85% Certification and Safety  EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012 Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008 Photometric  BEAM Illuminance（LUX） 108000 12000 6750 27000 ° 2.5 ° m/ft 20/65.62 40/131.23 60/196.85 80/262.47 Distance...

  • Page 15: Other Features

    WASH Illuminance（LUX） 5 ° 8120 4960 52400 16400 50 ° 2380 5 ° 50° Distance m/ t.) 0 5/16.40 10/32.81 15/49.21 20/65.62 10%Beam diameter(m/ft.) Φ0.44/1.44 Φ0.88/2.89 Φ1.32/4.33 Φ1.76/5.77 50 °) 10%Beam diameter(m/ft.) Φ4.66/15.29 Φ9.32/30.58 Φ13.98/45.87 Φ18.64/61.15 50%Beam diameter(m/ft.) 5 °) Φ0.22/0.72 Φ0.44/1.44 Φ0.66/2.17...

  • Page 16: Gobos And Colors

    8. Gobos and colors 8.1 Gobos specification All patterns are made in the Glass, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Glass gobo Φ14.4mm Φ9mm 1.1mm Note: Glass Gobo is made of high temperature resistant glass.

  • Page 17: Menu Structure

    9. Menu structure Level 1 Level 2 Level 3 Level 4 Info Address Setting Address:001~ XXX Setting the DMX address setting Value Display Pan …，All，Off Display the channel value Auto-Program Master /Slave Run auto program in master or slave Time Info Since power on XXXXXX Hour Since power on time...
  • Page 18 Temperature Unit Celsius Temperature unit Fahrenheit Value Default Pan…… Pan =XXX The default value Wireless Dev Wireless Off Wireless off Wireless On Wireless on Wireless Trans. Wireless transfer DMX data to another Wireless Reset Wireless reset Restore Default Yes/No Restore to default value Reset System Reset System reset...
  • Page 19 program 10 Scene Edit Scene Edit:001-250 Pan,……Pan=xxx Edit the channel DMX Scene Time=xxx Edit the scene time Input By Console scene form console Record Scene Scene XX->XX Record scene form console *Settings hightlighted in light grey are default values.

  • Page 20: Dmx Protocol

    10. DMX Protocol Standard Default mode Name DMX value Function (Standard percentage Value (27ch)) 0.0% 12.2% Closed 12.5% 24.7% Open Strobe/ 25.1% 49.8% Synchronous strobe from slow to fast Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 21 Default mode Name DMX value Function (Standard percentage Value (27ch)) 46.3% 49.8% Color 12 Color continous rotation CW from slow 50.2% 73.3% to fast Color 0(0%) wheel 73.7% 76.5% Stop Color continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 6.7% Open...
  • Page 22 Default mode Name DMX value Function (Standard percentage Value (27ch)) 12.9% 14.5% Gobo 6 14.9% 16.5% Gobo 7 16.9% 18.4% Gobo 8 18.8% 22.4% Gobo 1 shake 22.7% 26.3% Gobo 2 shake 26.7% 30.2% Gobo 3 shake 30.6% 34.1% Gobo 4 shake Rotating 34.5% 38.0%...
  • Page 23 Default mode Name DMX value Function (Standard percentage Value (27ch)) 0.0% 49.8% Prism1 rotation/positioning Prism1 continous rotation CW from 50.2% 73.3% Prism1 slow to fast 0(0%) rotation 73.7% 76.5% Stop Prism1 continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 12.2% 0(0%)
  • Page 24 Default mode Name DMX value Function (Standard percentage Value (27ch)) 51.0% 54.5% Built-in program 1 54.9% 58.4% Built-in program 2 58.8% 62.4% Built-in program 3 62.7% 66.3% Built-in program 4 66.7% 70.2% Built-in program 5 Special 0(0%) 70.6% 74.1% Built-in program 6 controls 74.5% 78.0%...
  • Page 25 Default mode Name DMX value Function (Basic percentage Value (24ch)) 0.0% 49.8% Open High color 0(0%) index 50.2% 100.0% High color index 0.0% 2.7% Open 3.1% 6.7% Color 1 7.1% 10.6% Color 2 Color 0(0%) wheel 11.0% 14.5% Color 3 14.9% 18.4% Color 4...
  • Page 26 Default mode Name DMX value Function (Basic percentage Value (24ch)) 38.8% 41.6% Gobo 5 shake 42.0% 44.7% Gobo 6 shake 45.1% 49.8% Open Gobo Gobo wheel continous rotation CW wheel 0(0%) 50.2% 73.3% from slow to fast (static) 73.7% 76.5% Stop Gobo wheel continous rotation CCW 76.9%...
  • Page 27 Default mode Name DMX value Function (Basic percentage Value (24ch)) 0.0% 49.8% Gobo rotation/positioning Gobo Gobo continous rotation CCW from 50.2% 73.3% rotating/ slow to fast positionin 0(0%) 73.7% 76.5% Stop gobo wheel 1 Gobo continous rotation CW from slow 76.9% 100.0% to fast...
  • Page 28 Default mode Name DMX value Function (Basic percentage Value (24ch)) 0.0% 3.5% No function 3.9% 7.5% Open light after 5 seconds 7.8% 11.4% Close light after 5 seconds 11.8% 15.3% Color wheel half color switch 15.7% 19.2% Color wheel random positioning 19.6% 23.1% Blade motor reset after 5 seconds...
  • Page 29 Default mode Name DMX value Function (Extended percentage Value (34ch)) 50.2% 62.4% Open Strobe/ 0(0%) 62.7% 87.5% Random strobe from slow to fast Shutte 87.8% 100.0% Open 0.0% 100.0% No light to Full light Intensity 0(0%) 65535 0.0% 100.0% Intensity fade, fine (LSB) 0.0% 100.0% White to Full cyan...
  • Page 30 Default mode Name DMX value Function (Extended percentage Value (34ch)) Color continous rotation CW from slow 50.2% 73.3% to fast Color 0(0%) 73.7% 76.5% Stop wheel Color continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 6.7% Open 7.1% 9.0% Gobo 1 9.4%...
  • Page 31 Default mode Name DMX value Function (Extended percentage Value (34ch)) 16.9% 18.4% Gobo 8 18.8% 22.4% Gobo 1 shake 22.7% 26.3% Gobo 2 shake 26.7% 30.2% Gobo 3 shake 30.6% 34.1% Gobo 4 shake 34.5% 38.0% Gobo 5 shake Rotating 38.4% 42.0% Gobo 6 shake...
  • Page 32 Default mode Name DMX value Function (Extended percentage Value (34ch)) 0.0% 49.8% Prism1 rotation/positioning Prism1 continous rotation CW from 50.2% 73.3% Prism1 slow to fast 0(0%) rotation 73.7% 76.5% Stop Prism1 continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 12.2% 0(0%)
  • Page 33 Default mode Name DMX value Function (Extended percentage Value (34ch)) 47.1% 50.6% Reserved 51.0% 54.5% Built-in program 1 54.9% 58.4% Built-in program 2 58.8% 62.4% Built-in program 3 62.7% 66.3% Built-in program 4 66.7% 70.2% Built-in program 5 Special 0(0%) controls 70.6% 74.1%...

  • Page 34: System Wiring Diagram

    11. System wiring diagram Context of socket...

  • Page 35: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 36 Problem Possible Cause Suggested Correction system the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Channel Mode” of the fixture as required by the Mode”of the fixture. user Malfunctioning of DMX cannon Troubleshooting the DMX XLR signal plate of the input/output connectors.
  • Page 37 Problem Possible Cause Suggested Correction temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.

  • Page 38: Spare Parts List

    Problem Possible Cause Suggested Correction gobo wheel or color wheel. to clean the rotating gobo wheel or color wheel. Rotating gobo wheel, color wheel with Replace the worn-off, damaged or deformed coating wearing off, damages or rotating gobo wheel and color wheel deformation Excessive dusts or smudges on the rotating Follow the instructions stated in this user manual...
  • Page 39 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808296 Fax：86-20-61812282 http://www.gtd-lighting.com...
