TP110
DIGITAL DRUM
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP110 and is the answer not in the manual?

Questions and answers

Related Manuals for Medeli TP110

Summary of Contents for Medeli TP110

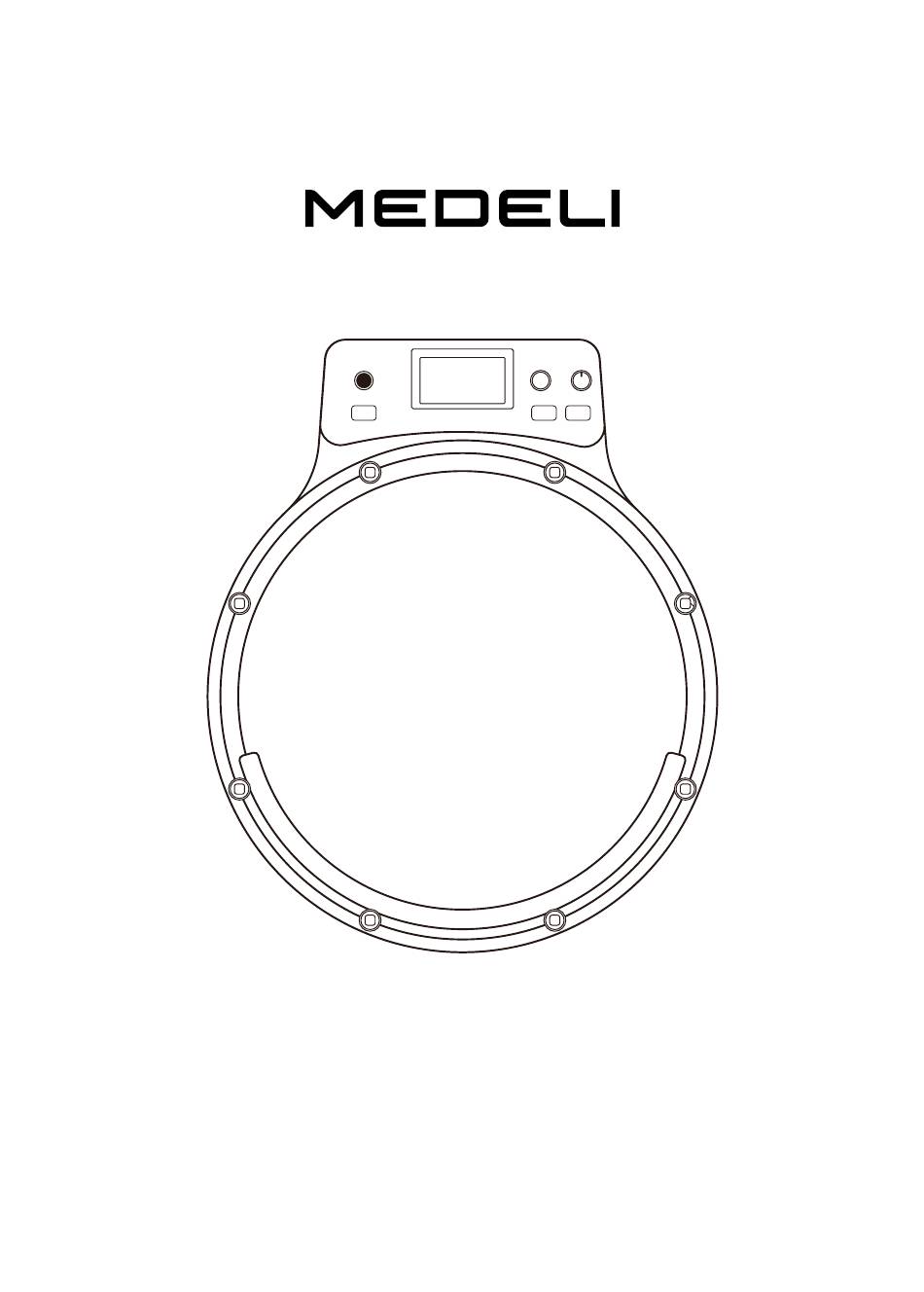

  • Page 1 TP110 DIGITAL DRUM OWNER’S MANUAL...

  • Page 2: Information For Your Safety

    INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with PLEASE READ CAREFULLY BEFORE PROCEEDING the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    Contents Main Features ................................4 Power Supply ................................5 Panel Description ................................6 ..................................6 Front Panel ..................................7 Rear Panel Adjust the Head Tension ............................8 Setup ....................................9 LCD Description .................................10 Getting Started ................................11 ................................11 Selecting a Mode Shortcut to Click and Coach Mode ........................12 .............................12 Using the Click (Metronome) Coach Mode...

  • Page 4: Main Features

    Easy Portability Lightweight and compact, the TP110 is easy to carry. It supports battery power as well as power banks, making practice possible anywhere anytime.

  • Page 5: Power Supply

    Power Supply While the TP110 can operate on batteries, we recommend using a USB-C cable for power supply as a more environmentally friendly option. Using USB-C Cable: USB-C Cable + Outlet: Connect the USB-C cable to an adapter and securely connect the output end to the drum’s USB-C port.

  • Page 6: Panel Description

    Panel Description Control Panel Tension Bolt Drum Head Front Panel 4. [VOLUME] Knob 1. [POWER] Button Adjust the overall output volume. Turn the power on or off. 5. [START/STOP] Button 2. LCD Display Start/stop the metronome and practices. Display current mode, status and function parameters.

  • Page 7: Rear Panel

    Panel Description Rear Panel Stereo 1/4’’ TRS male end that splits to two mono 1/4’’ cable male ends 1. [PHONE] Stereo Output 2. [TRIGGER] Expansion Port For connecting headphones (3.5mm) or external speakers. For connecting an external dual-zone trigger pad via a standard TRS cable (stereo 1/4”).

  • Page 8: Adjust The Head Tension

    Adjust the Head Tension Follow the order indicated in this image. Turn each key bolt around the head little by little to make the head tension even. Make fine adjustment to each bolt and strike the pad to check the head response. Notes: 1.

  • Page 9: Setup

    Setup Note: The drum does not include a drum stand. Please purchase it separately. Mounting the drum on a stand. Unfold the tripod. Make the legs spaced at least 30cm apart so the tripod stands stably. Wing nut ① Remove the wing nut ① and washer from the drum holder. Then put Washer wing nut ①...

  • Page 10: Lcd Description

    LCD Description Click and Coach Mode: Shows the current Click and Coach Mode. Power Status: Displays the current battery power status. Bluetooth Icon: Indicates Bluetooth connection status (the icon will not be displayed if not connected). MENU: Press [MENU] knob to enters Mode Menu when it is selected.

  • Page 11: Getting Started

    Getting Started In the main display, turn the [MENU] knob to highlight an item that you wish to adjust. If you want to go to Mode Menu, turn the [MENU] knob till the MENU is highlighted, then press the [MENU] knob. MENU Selecting a Mode Turn the [MENU] knob to select a mode and press the [MENU] knob to...

  • Page 12: Shortcut To Click And Coach Mode

    Shortcut to Click and Coach Mode When the drum is turned on, the main display will directly go to the Click and Coach mode for quick access to the practice session. Changing the mode: when the mode name in the upper left corner is highlighted, use the [+] and [-] buttons to change the mode.

  • Page 13: Coach Mode

    Coach Mode Selecting a Practice Type Select “Coach” from the Mode menu and press the [MENU] button to enter Coach mode. Turn the [MENU] knob to select the desired type of practice, then press the knob again to access practice settings. To return to the previous page, simply choose [EXIT] and press the [MENU] knob.

  • Page 14: Quiet Count

    Coach Mode Parameter Range / Options Description BEAT TYPE Select the beat type. TEMPO 20 ~ 300 Adjust the tempo. BEAT GUIDE ON/OFF Turn the beat guide on or off. Beat Guide On: Click plays the beat type in the display. Beat Guide Off: Click does not play the beat type in the display.

  • Page 15: Gradual Up/Down

    Coach Mode Gradual Up/Down Build your speed by playing a continuous rhythm (such as Paradiddles: RLRR LRLRR...) and keep in time as the click gets faster and focus on your articulation as the click slows down. In Coach mode, select “Gradual Up/Down” and press the knob to access practice settings.

  • Page 16: Change Up

    Coach Mode Change Up Learn to play the various beat subdivision rhythms as they cascade from one to another. In Coach Mode, select “Change Up” and press the knob to access practice settings. Turn the [MENU] knob to select a parameter. Use the [+] and [-] buttons to adjust the parameter.

  • Page 17: Sound & Trigger

    Sound & Trigger Sound Settings Select “SOUND” from the Mode menu and press the knob to access Sound settings. Turn the [MENU] knob to select a sound parameter. Use the [+] and [-] buttons to adjust the parameter. Notes: 1. You can use a standard TRS cable (1/4”) to connect to an external 2-zone trigger via the [TRIGGER] input on the rear panel.

  • Page 18: Setup Menu

    Setup Menu Setup Menu In the Mode menu, select “Setup” and press the knob to enter the setup menu. Turn the [MENU] knob to select a parameter.. Use the [+] and [-] buttons to adjust the parameter. Setup Parameter Range Description AUTO POWER OFF OFF/15 Min/60 Min...

  • Page 19: Sound List

    Sound List Sound name Triangle Vel Switched SNARE Bongo H Marching Snare Bongo L Field Snare Timbale H Concert Snare Timbale L Drum set Wood H Conga H Drum Set Wood L Conga L Drum set Metal H Shaker Drum Set Metal L Clave Drum set Piccolo H Hand Claps...
  • Page 20 TP110_OM11EN...
