Giada AF208 User Manual

Semi-industrial computer intel alder lake-n inside support 4k display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

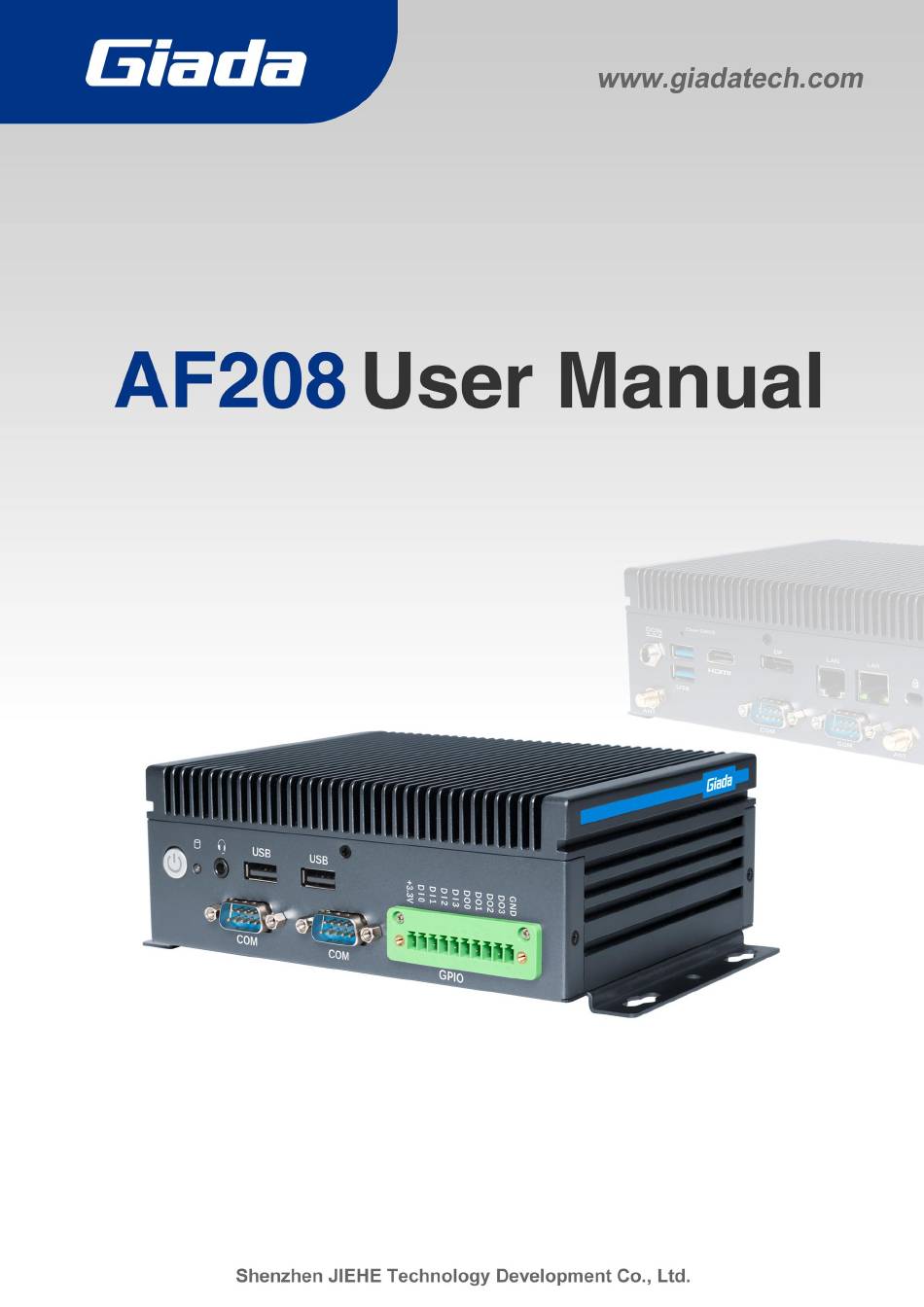

- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AF208 and is the answer not in the manual?

Questions and answers

Related Manuals for Giada AF208

Summary of Contents for Giada AF208

  • Page 1 - 1 -...

  • Page 2: Safety Notice

    The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................5 2. Interface Description and Hardware Specifications ........5 2.1 Interface Description ..................5 2.2 Hardware Specifications ................6 3. Accessories Installation Steps ................8 3.1 WIFI(M.2) Installation ................... 8 3.2 SSD(M.2) Installation ..................9 4.
  • Page 4 4.5 Save & Exit ....................27 5. JAHC Introduction ..................28 5.1 Auto Power on ..................... 28 5.2 JAHC Software ................... 29 5.2.1 JAHC Software Functions ..............29 5.2.2 JAHC Software Installation Guide ............ 29 5.2.3 Startup and Shutdown Time Setup ............. 33 5.3 Watchdog API and Instruction ..............

  • Page 5: Product Introduction

    1. Product Introduction Based on Intel Alder Lake-N, Giada AF208 is a rugged and fanless model featuring up to 16GB ® onboard DDR5-4800MHz memory. Equipped with HDMI 2.0 and DP1.2 display outputs, the player delivers stunning 4K visual quality. Built to withstand demanding environments, this semi-industrial PC supports a wide temperature range (-20℃...

  • Page 6: Rear I/O Port

    Rear I/O Port 2.2 Hardware Specifications AF208 Intel Processor N97 ® Intel Atom X7211E Processor ® Frequency 3.60 GHz / 3.20 GHz Processor Chipset Processing Units 4 Cores / 2 Cores 12 W / 6 W Type Onboard LPDDR5-4800 MHz, Single-channel...
  • Page 7 2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 Serial Port 2 x RS232, 2 x RS485 Audio 1 x 2-in-1 headset (MIC-IN & AUDIO-OUT) I/O Interface Button 1 x Power on, 1 x CLR-CMOS GPIO 10pin GPIO (4 x GPI, 4 x GPO) Antenna 2 x Connector for Wi-Fi/BT Storage...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover Unscrew the four screws and open the top case. (1 x M-Key M.2 (2280) for SSD, 1 x E-Key M.2 (2230) for Wi-Fi/BT are on top side).

  • Page 9: Ssd(M.2) Installation

    3.2 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. - 9 -...

  • Page 10: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only when the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 11 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 12 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 13: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 13 -...

  • Page 14: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 14 -...
  • Page 15 ACPI Options Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend. S3 (Suspend to RAM): Enable S3(Suspend to RAM)  State After G3 means after restore power supply. ...

  • Page 16: Cpu Configuration

    4.2.2 CPU Configuration - 16 -...
  • Page 17 The menu Description CPU Configuration Max Non-Turbo Performance: the best performance.  Boot performance mode Max Battery.  Turbo performance.  Intel Virtualization Technology is enabled by default. User can Intel (VMX) Virtualization Technology enable and disable the Intel Virtualization Technology function. Intel （...

  • Page 18: Wake Computing

    4.2.3 Wake Configuration - 18 -...

  • Page 19: Trusted Computing

    WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On RLT LAN Disabled: The WOL is disabled by default.  Enabled.  Wake up By USB KB/MS Enabled/Disabled Wake Up by USB KB/Mouse from S3 Status.  Disabled: By default, the functions is disabled.
  • Page 20 TPM20 Device Found Description Firmware Version TPM FW version is 600.18  Vendor The vendor is INTC  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is Enabled by default  SHA256 PCR Bank Enabled.

  • Page 21: It8786 Super Io Configuration

    Device Select You can select TPM1.2 or TPM2.0 or Auto. Auto is set up by default.  4.2.5 IT8786 Super IO Configuration Pc Health Menu Description Pc Health Status is NA (AF208 is fanless design by default.) - 21 -...

  • Page 22: System Devices Configuration

    4.2.6 System Devices Configuration - 22 -...
  • Page 23 Menu Description The SATA controller is enabled by default. SATA Controller(s) Enabled  Disabled.  SATA Mode Selection Determines how SATA controller(s) operate.  The USB driver Boot is enabled by default.  USB Driver Boot Enabled  Disabled  The LVDS option is disabled by default.

  • Page 24: Security Setup

    4.3 Security Setup (set the administrator/user password) If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password.

  • Page 25: Boot Menu

    Security Item Description System Mode Configuration Secure Boot feature is Active if Secure Boot is Enabled.Platform key (PK) Secure Boot is enrolled and the System is in user mode.The mode change requires platform reset. Secure Boot Mode options includes Standard and Custom mode. Secure Boot Mode In Custom mode,Secure Boot Policy variables can be configured by a physically present user without full authentication.
  • Page 26 Boot Item Description Options are OFF and ON. In other words, this item can be used to set the Boot up Num Lock State state of Num Lock after entering the system. It can be set according to user's needs and doesn’t affect the performance of the computer. If this item is set as Enabled, the system can be started within five Quiet Boot seconds and some detection items will be ignored.

  • Page 27: Save&Exit

    4.5 Save&Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 27 -...

  • Page 28: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 29 c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 29 -...

  • Page 30: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada DVD, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 31 Select [Create a desktop shortcut] and click [Next] button. d. Click [Install] button to continue the installation. - 31 -...
  • Page 32 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. - 32 -...

  • Page 33: Startup And Shutdown Time Setup

    Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day.
  • Page 34 After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status. Click [X] button to hide the menu.

  • Page 35: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 35 -...
  • Page 36 - 36 -...
