Penn Elcom PDU16-UN32 User Manual

PRODUCT DATASHEET & USER GUIDE

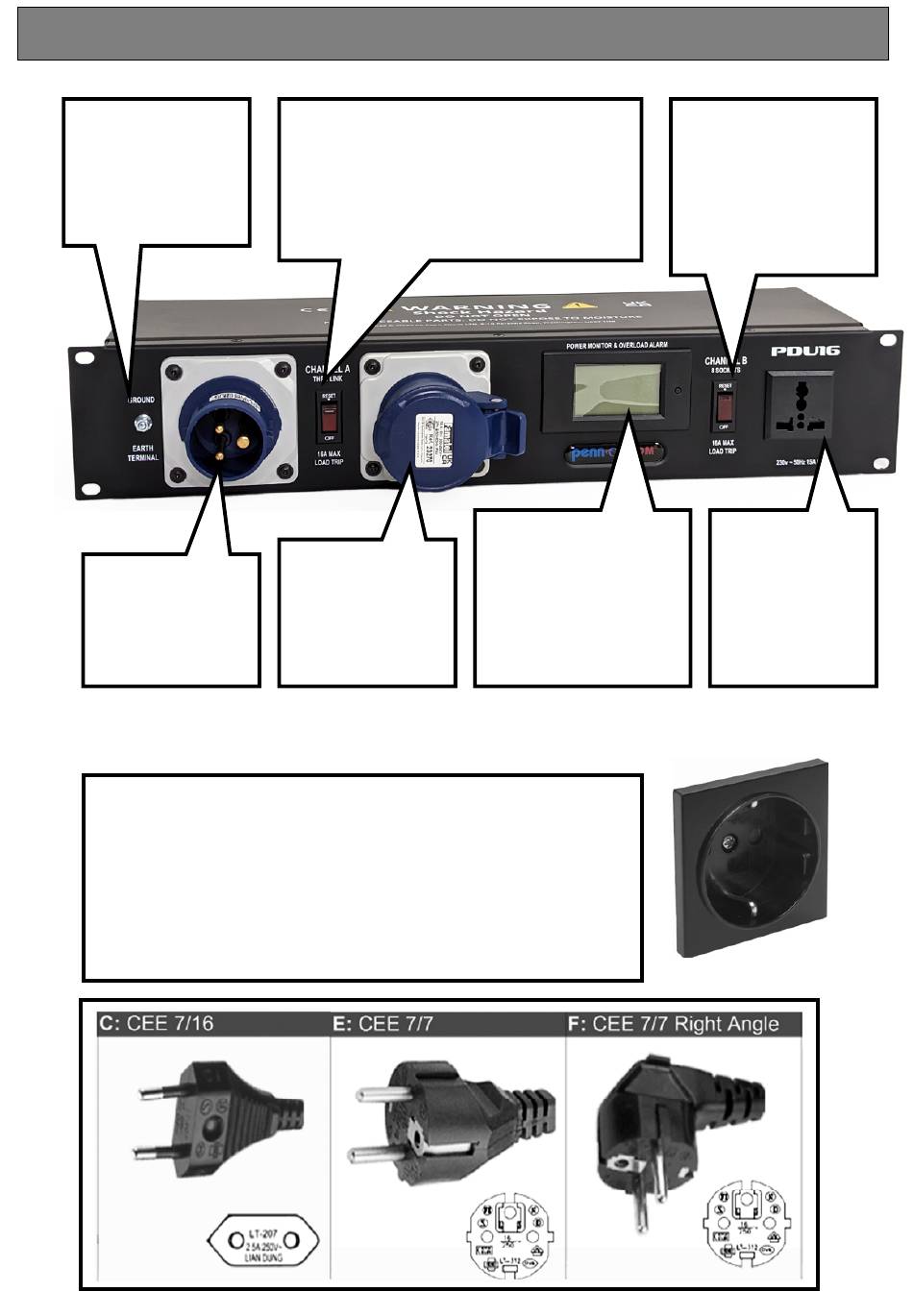

Earth Strap
Point
For attachment
to the rack unit
This Unit Must
Be Earthed
Main
AC~Input Blue
C-FORM 240V
32A IP44 Input
Socket
Channel B on the PDU16-EU model has 8 Sch uko style sockets
compatible with plug types below:
Type C Commonly used in Europe, South America & Asia
Type E Primarily used in France, Belgium, Poland, Slovakia &
the Czech Republic
Type F Also used almost everywhere in Europe & Russia.
RED Neon Indicators
on the trip switches will show
there is AC power in the unit.
Should these be Not Lit then -
1st check the power is connected
& none of the outputs are overloaded
Channel A
AC~Output
Blue C-FORM
240V 16A IP44
Output Socket
Via 16A Trip
EURO PLUG FITTING GUIDE
PDU16-UN32 & PC32
POWER DISTRIBUTION RANGE
Power Monitor
This panel displays
Overall Voltage -
Current - Power
& Energy Level
of Channel B
Output Sockets
16A Trip
Switches for
Channels A & B
In the event of
overload these will
cut power to the
8 output sockets
AC~Outputs
8 sockets
1 Front & 7 on
the back panel
with max
combined load
of 16A
