PRODUCT DATA & USER GUIDE

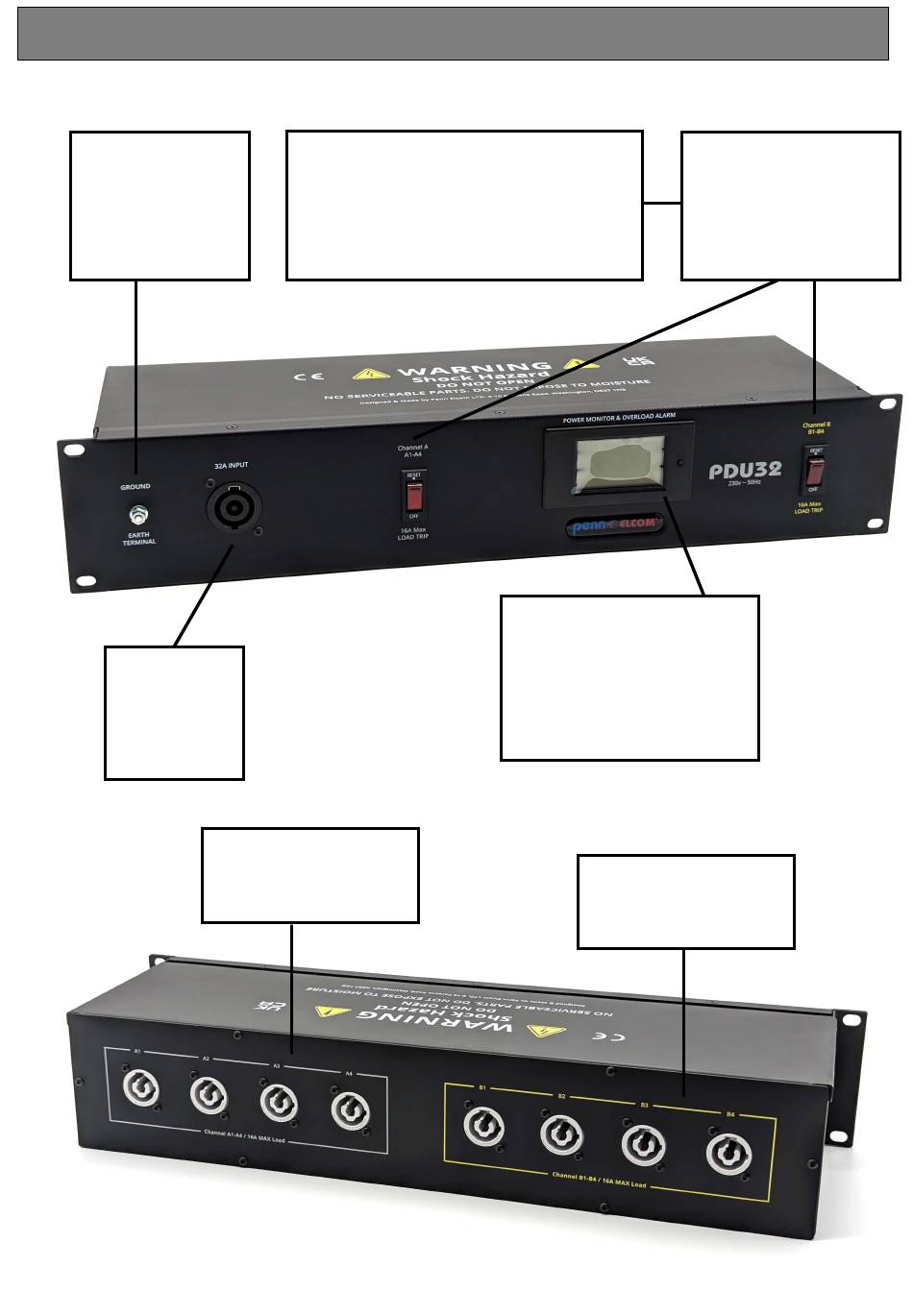

Earth Strap
Point
For attachment
to the rack unit
This Unit Must
Be Earthed
Main
AC~Input
PowerCon
240V 32A
IP20 mated
RED Neon Indicators
on the trip switches will show
there is AC power in the unit.
Should these be Not Lit then -
1st check the power is connected
& none of the outputs are overloaded
Channels A1-A4 16
Amp combined load
across 4 outputs
PDU32
POWER DISTRIBUTION RANGE
16A Trip Switches
for Channels A1-A4 &
B1-B4. In the event of
overload these will cut
power to the channel's
Power Monitor This
panel displays Overall
Voltage - Current -
Power & Energy Level
of Channels A & B
Output Sockets
Channels B1-B4 16
Amp combined load
across 4 outputs
4 output sockets
