PRODUCT DATASHEET & USER GUIDE

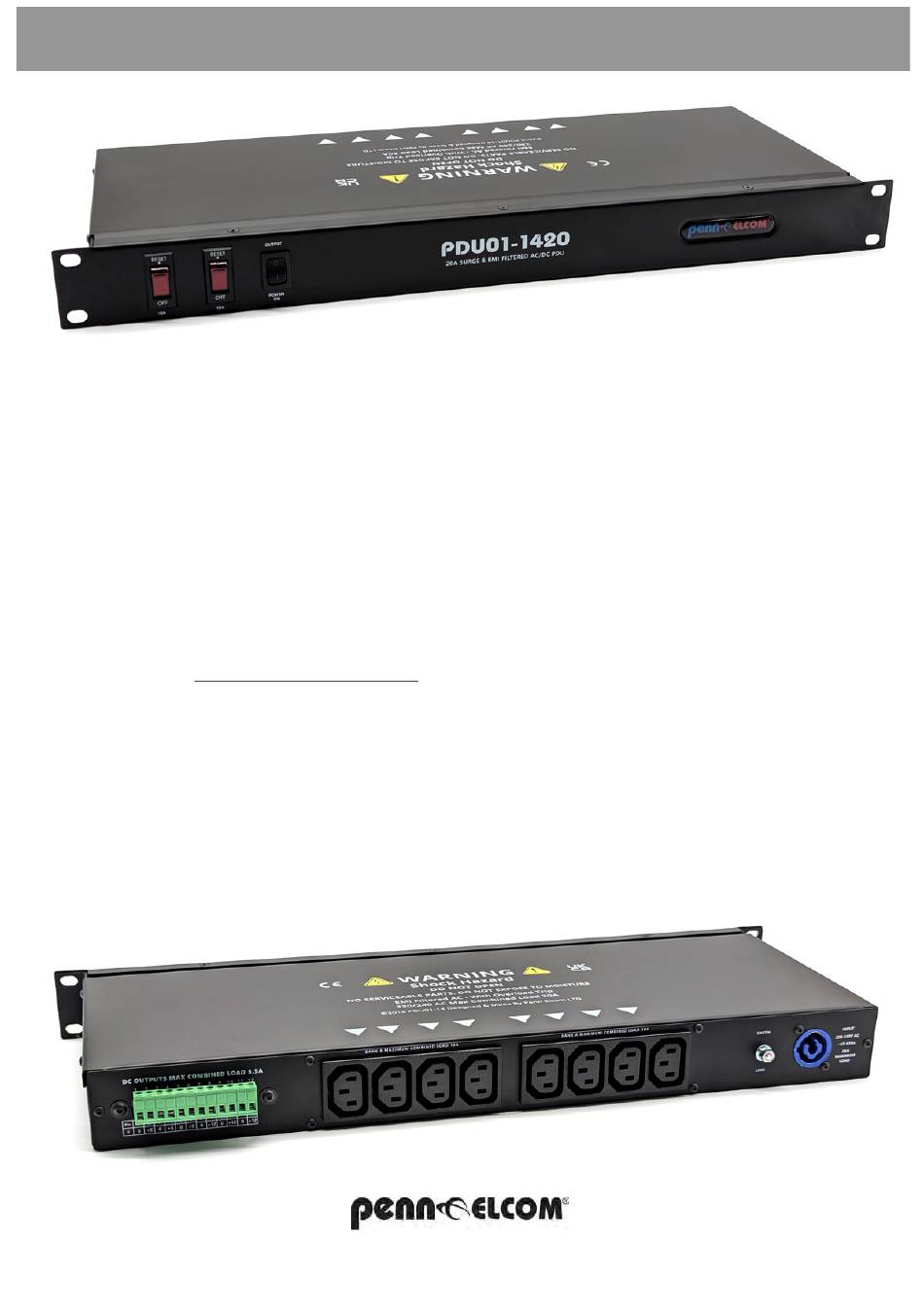

1U Rack Mounting PDU with Surge Protection & EMI Filter
1U high Horizontal Mounting Unit is designed to provide a versatile hook-up for the distribution
of AC & DC power within multimedia racking applications.
Input
Power Con EMI filtered input with protection against Lightning Strike & Local Power Surge.
20A T inline internal fuse.
Output AC~
8 x IEC320 C13 in 2 banks of 4 with a Maximum Combined Load 20A
Protection
2 x 10 AMP Circuit Breaker Switches
DC PSU
Switchable Isolated Universal DC supply fully protected
(AC input range 88V~264V)
Output DC-
12 Way Pluggable Screw Terminal Socket
3 x 5V dc
3 x 12V dc
With a Max Combined Load of 65W
Earth Link
Thumb Screw Terminal for Rack Grounding
Usage
Nominal Voltage:
Usable Voltages
Frequency:
Max. A/C Output:
Case Size:
Weight:
Compliance
All components used in this conform to current RoHS, CE & UL certification
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
9-10 Parsons Road, Parsons Industrial Estate, Washington Tyne & Wear, NE37 1HB, UK
2 30V
200V~ 240V full range
50/60HZ full range
Current 20A
45 x 140 x 430mm (O.A.483mm)
2Kg
Designed & Made in the UK by Penn Elcom Ltd
0191 416 1717 or www.penn-elcom.com
PDU01-1420
20A SURGE & EMI FILTERED AC/DC PDU
