Summary of Contents for Levenhuk MAGUS METAL D630 BD LCD

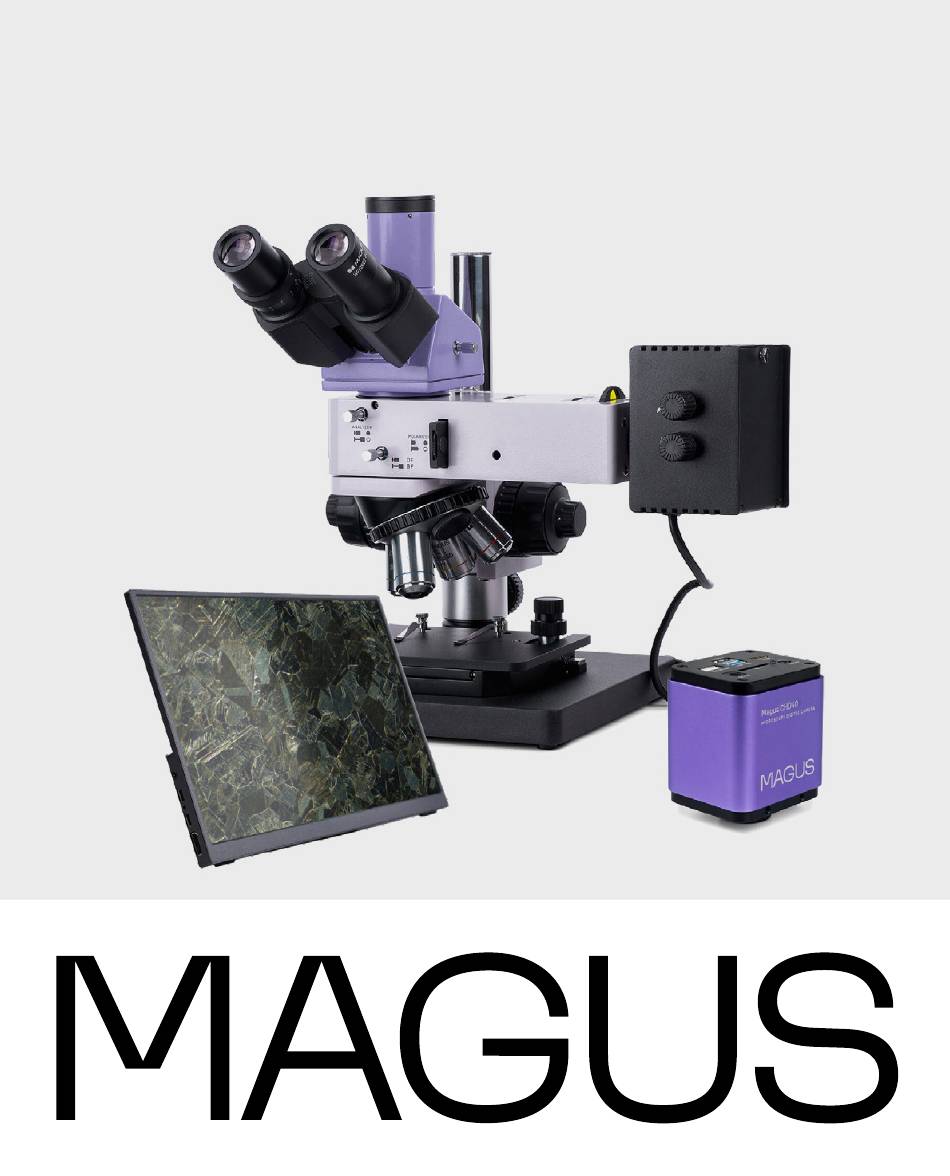

  • Page 1 M AG U S M ETA L D 6 3 0 B D LC D ME TA LLU RG ICA L D IG I TA L M I C RO S CO P E U S E R M A N U A L...
  • Page 2 928 E 124th Ave. Ste D, Tampa, FL 33612, USA +1 813 468-3001 contact_us@levenhuk.com Levenhuk Optics s.r.o. (Europe) V Chotejně 700/7, 102 00 Prague 102, Czech Republic +420 737 004-919 sales-info@levenhuk.cz Magus® is a registered trademark of Levenhuk, Inc. © 2006–2024 Levenhuk, Inc. All rights reserved. www.levenhuk.com 20241126...
  • Page 3: Safety Precautions

    Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures.
  • Page 4 11. Bulb installation: – Do not touch the glass surface of the bulb with your bare hands. When installing the bulb, wear gloves or wrap the bulb with a cotton cloth. – Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb.
  • Page 5: Table Of Contents

    CONTENTS 1 DESCRIPTION Purpose Specifications Microscope kit 2 COMPONENTS Microscope body Focusing mechanism Microscope head Eyepieces Revolving nosepiece Objectives Reflected light illuminator Stage Lamphouse Polarizer/analyzer set Color filters Camera Monitor 3 UNPACKING AND ASSEMBLING 4 BRIGHTFIELD OBSERVATION PROCEDURE Switching on the illumination Using the beam splitter lever Placing the specimen Focusing on the specimen...
  • Page 6: Description

    MAGUS Metal D630 BD LCD Metallurgical Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation.
  • Page 7 Camera Number of megapixels Sensor SONY Exmor/Starvis CMOS Color/monochrome Color Maximum resolution, pix 3840x2160 Sensor size 1/1.2" (11.14x6.26mm) Pixel size, µm 2.9x2.9 Signal/noise ratio 0.13mV with 1/30s Light sensitivity 1028mV with 1/30s Exposure 0.14ms–1000ms Video recording 30@3840х2160 (HDMI), 30@1920х1080 (Wi-Fi), 30@3840х2160 (USB Frame rate, fps at resolution, pix 3.0) Image format...
  • Page 8: Microscope Kit

    M ICROS COPE K IT The microscope kit includes the following main components: – stand with base and stage – microscope body with focusing mechanism and revolving nosepiece – reflected light illuminator – trinocular head – lamphouse – set of objectives and eyepieces –...
  • Page 9 19. Darkfield switch knob 24. ON/OFF switch 14. Stage 20. Analyzer 25. Brightness adjustment knob 15. Microscope base 21. Polarizer 26. Digital camera 16. X/Y stage control knob 22. Lamphouse 27. Monitor Fig. 1. MAGUS Metal D630 BD LCD Microscope...
  • Page 10: Components

    COMPONENTS MI CRO SCOPE B ODY The microscope body 9 (Fig. 1) is mounted on the stand 6 (Fig. 1) that is secured on the base 15 (Fig. 1). There is a focusing mechanism inside the microscope body. There is a mount on the front of the microscope body to install the revolving nosepiece 17 (Fig. 1) and the reflected light illuminator 3 (Fig.
  • Page 11: Objectives

    The revolving nosepiece rotates clockwise and counter-clockwise. The revolving nosepiece is mounted on the front panel of the microscope body. The objectives are screwed clockwise into the revolving nosepiece in order of increasing magnification. For convenience, the objectives are turned "away from the observer".
  • Page 12: Color Filters

    C OLOR FILTER S The microscope kit includes a round slider with color filters 4 (Fig. 1). The slider has 5 positions: yellow, green, blue, frosted glass filters, and a free slot. Color filters help to properly adjust color reproduction depending on the specimen, improve color balance, and enhance image contrast and brightness.
  • Page 13: Brightfield Observation Procedure

    2. Take out the stand with the base and body of the microscope 1 and place it on a stable work table, remove packaging and the dust cover. Prior to work, adjust the microscope body to the desired height. To do this, loosen the knob 2 of the locking support collar 1 (Fig.
  • Page 14: Placing The Specimen

    PL AC IN G THE SP EC IM E N Place the specimen 3 on the stage 4. Adjust the image by moving the knobs 1 and 2 so that the observed section of the specimen is directly under the objective. The stage features an XY control system.
  • Page 15: Setting Up Köhler Illumination

    2. Remove one of the objectives from the revolving nosepiece and place the free slot (a slot without an objective) into the optical path, as shown in Fig. 9b. 3. Open the field and aperture diaphragms. A brightly illuminated spot will appear on the paper showing the filament, as shown in Fig.
  • Page 16: Using The Color Filters

    The aperture diaphragm 3 is pre-centered at the factory and requires no additional centering. When using low- magnification objectives, increase the aperture diaphragm opening; when using high-magnification objectives, reduce the aperture diaphragm opening. US IN G T H E C OLOR F I LT E R S A round slider with color filters is installed on the top of the reflected light illuminator.
  • Page 17: Using The Camera

    USI N G THE CA ME RA The camera is equipped with an 8MP sensor and it produces a realistic image in 4K resolution (3840x2160 pixels) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image resolution is Full HD (1920x1080 pixels). The microscope is designed to observe a specimen through the eyepieces and to photograph the specimen.
  • Page 18: Using The Monitor

    U SING THE MO N I TO R The IPS matrix delivers a bright image with large viewing angles, which allows you to look at the display even at an angle with no color distortion. To display the image on the screen: –...
  • Page 19: Using Optional Equipment

    Fig. 16. Darkfield observations 6 USING OPTIONAL EQUIPMENT E Y EPIECE W ITH A SCA LE The eyepiece with a scale or reticle can be used to make comparative analysis of the linear dimensions of the individual components of an object. The scale is installed in the plane of the field diaphragm of the 10x eyepiece.
  • Page 20: Calibration Slide With A Camera

    We recommend entering the obtained data in a size chart: Objective magnification Eyepiece division value Using these data to determine the actual linear size of the specimen, you just need to count the number of divisions of the eyepiece scale aligned with the area of the specimen being measured, and multiply this number by the scale division value specified in this table.
  • Page 21: Troubleshooting

    7 TROUBLESHOOTING Potential problems and remedies (Table 4): Problem Cause Remedy ELECTRI CAL C OMPONENTS The ON/OFF switch is off Switch on the ON/OFF switch The halogen bulb is damaged Replace the halogen bulb The fuse has blown Replace the fuse No illumination in the field Poor electrical contact Check all the connectors.
  • Page 22: Scope Of Delivery

    8 SCOPE OF DELIVERY The scope of delivery (Table 5). Component Note MI CRO SCOPE MAIN COMPONENTS Stand with base and stage Microscope body Reflected light illuminator Lamphouse Trinocular microscope head Revolving nosepiece Power supply unit Polarizer/analyzer set Color filter slider REPLACEABLE PARTS Infinity plan achromatic objective: PL L 5х/0.12 BD WD 9.7mm Infinity plan achromatic objective: PL L 10х/0.25 BD WD 9.3mm...
  • Page 23: Care And Maintenance

    32GB SD memory card Wi-Fi USB-adapter EU-plug 12V/1A AC power adapter Flash drive with drivers and software Fasteners (mounting plate and screws) User manual M ONITO R Monitor HDMI cable AC power adapter DC/DC Type-C adapter Fasteners (Allen wrench and screws) CARE AND MAINTENANCE RE PLACING T HE B ULB A N D TH E FU SE Before replacing the bulb or fuse, turn the ON/OFF switch 1 to "0"...
  • Page 24: Maintenance

    MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product.
  • Page 26 www.magusmicro.com...
