Installing The Sas Mezzanine Card - Dell PowerEdge C6100 Hardware Owner's Manual

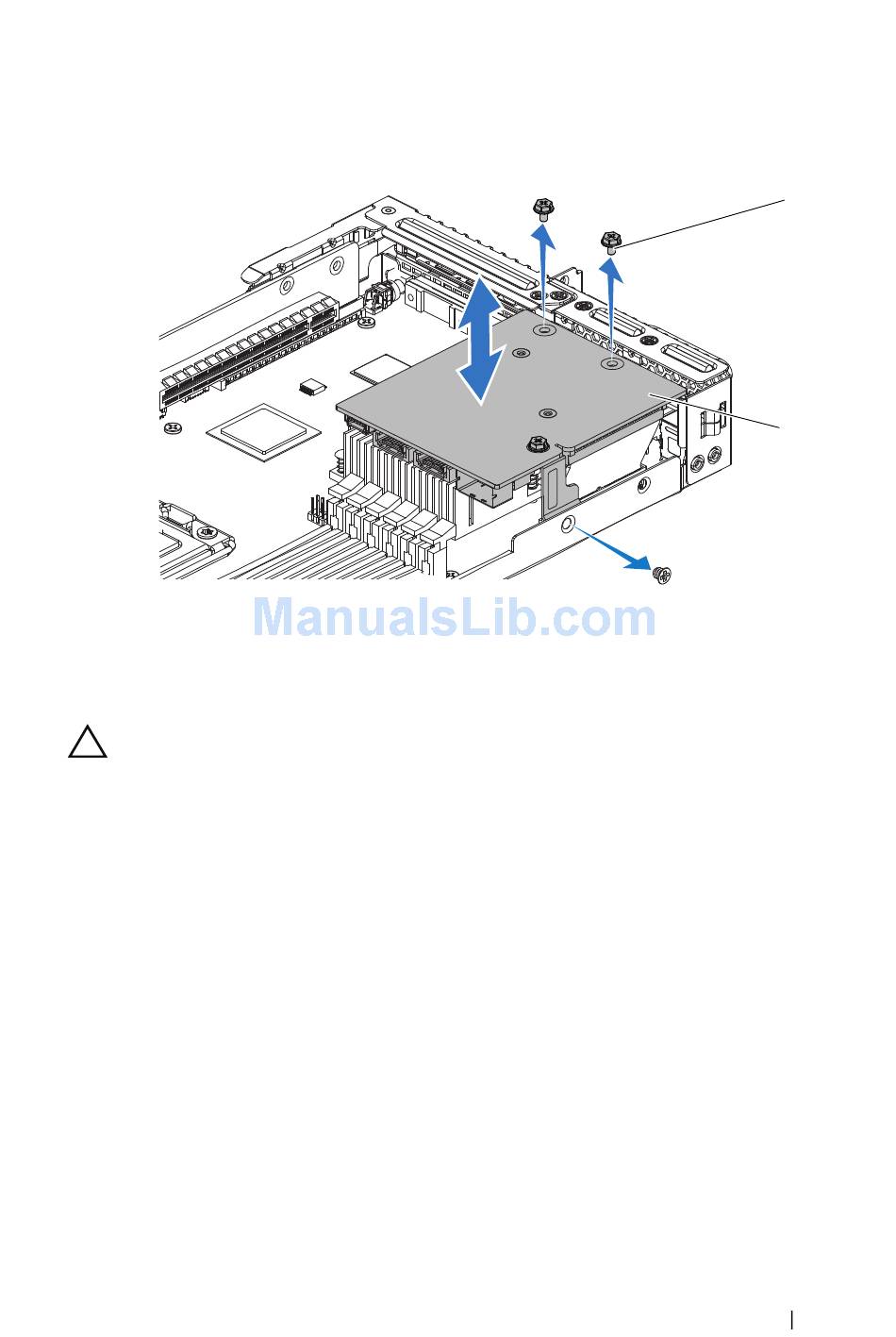

Figure 3-13. Removing and Installing the SAS Mezzanine Card
1 screw (3)

Installing the SAS Mezzanine Card

CAUTION:
Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Place the mezzanine card on the system-board assembly. See Figure 3-13
and Figure 5-11.
2 Replace the three screws that secure the mezzanine card. See Figure 3-13.
3 Reconnect all the cables to the mezzanine card.
4 Replace the system-board assembly. See "Installing a System-Board
Assembly" on page 62.
5 Reconnect the system to its electrical outlet and turn on the system,
including any attached peripherals.
