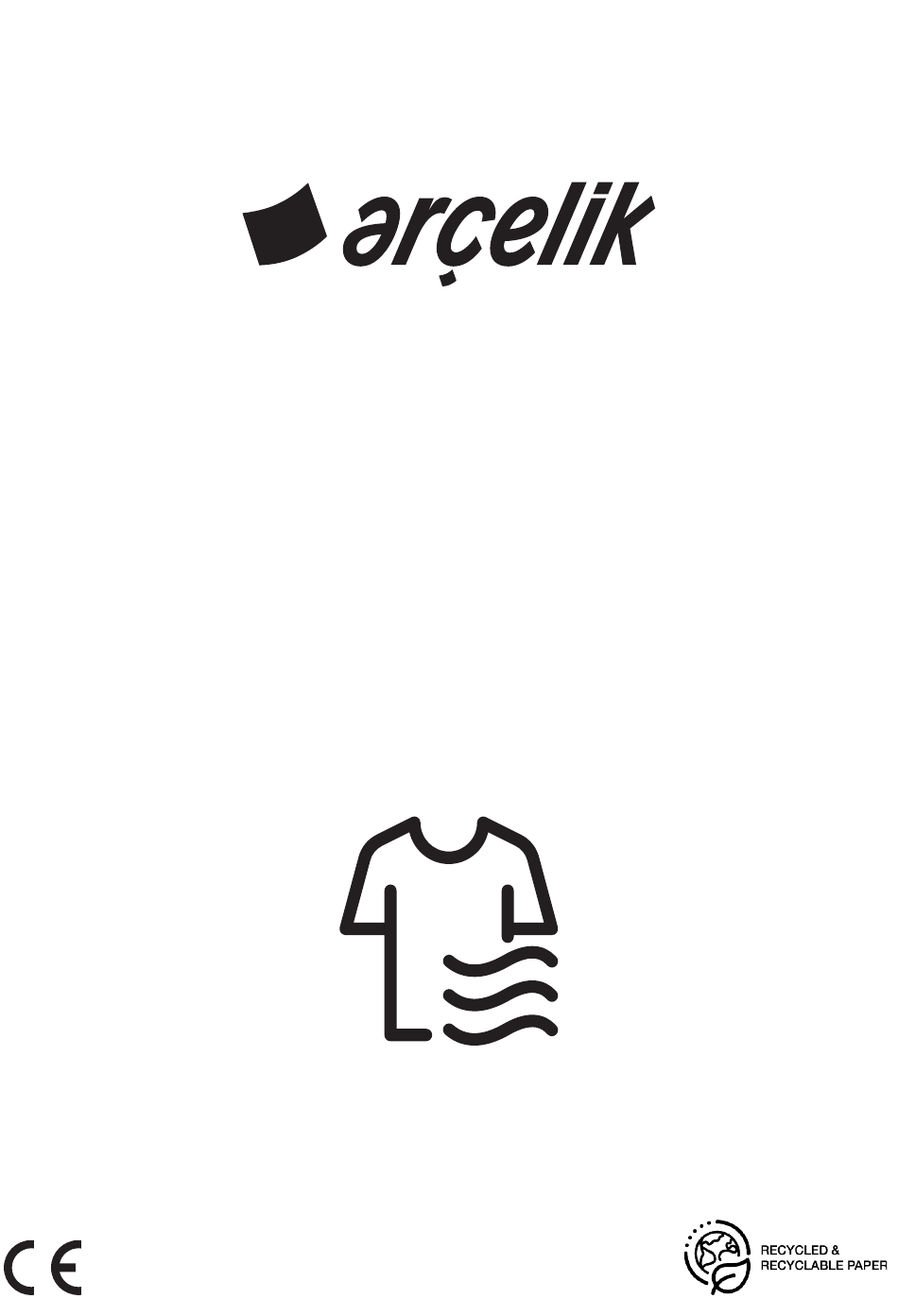

- Page 1 Dryer User Manual 900 KMP I 2960314219_EN/ 20-02-25.(16:58)
- Page 2 Dear Customer, Please read this guide prior to use this product! Thank you for choosing Arçelik product. We would like you to achieve the optimal efficiency from this high quality product which been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.
-
Page 3: Table Of Contents
Table Of Contents 1 Safety Instructions ................5 1.1 Intended use .....................5 1.2 Safety of children, vulnerable persons and pets ..........5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................7 1.5 Installing safety ....................7 1.6 Usage safety .....................9 1.7 Maintenance and cleaning safety ..............11 1.8 Lighting safety ....................11 2 Environmental instructions.............. - Page 4 6 Running the product ................19 6.1 Control Panel ....................19 6.2 Symbols ......................19 6.3. Preparation of drying machine ................20 6.4 Program selection and consumption chart ............21 6.5 Auxiliary functions ....................23 6.6 Warning indicators ...................23 6.7 Starting the program ..................24 6.8 Child Lock .......................24 6.9 Changing the program after it is started ............24 6.10 Cancelling the program ..................25 6.11 End of program .....................25...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. • Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. •... -
Page 7: Transporting Safety
1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. • This product is heavy, do not handle it by yourself. • Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. - Page 8 • The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door’s hinges. • Install the product where periodic maintenance and cleaning can be done with ease.
-
Page 9: Usage Safety
• Washing machine cannot be placed on top of the drying machine. Installation Table for Washing Machine and Tumble Dryer Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine) Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM>45cm Plastic - 46cm w or w/o belt 46cm TD -->... - Page 10 • Laundry softeners or similar products shall be used in align with the laundry softener instructions. • Do not use the drying machine without the fibre filter. • Do not allow fibre accumulation around the drying machine. • To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue).
-
Page 11: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 12: Environmental Instructions
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. -
Page 13: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,7 cm Capacity (max.) 9 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 14: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter basket user 1. -
Page 15: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After Read the “Safety Instructions” first! placing the drying machine, ensure that the back wall does not come in contact Before consulting the nearest Authorized with any extrusion (a water tap, electrical Service for installing the drying machine, see outlet etc.). -
Page 16: Connection Of Water Drain Hose On Products With Vapour Feature
4.3 Connection of water 4.4 Adjusting the stands drain hose on products with vapour feature Until the drying You can directly drain accumulated water machine stands level through the water drain hose supplied with and sturdy, adjust the product instead of periodically draining the the stands by turning water collected in the water tank them left and right. -
Page 17: Preparation
5.3 Preparing the 5 Preparation laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product. -
Page 18: Correct Load Capacity
• The Eco program is the most energy- The weights below are provided as examples. efficient program for drying wet cotton Approx. Approx. laundry and is used to assess compliance Laundry weight Laundry weight with environmentally conscious design (g)* (g)* regulations. -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 6. Audible warning and child lock selection button. 2. Start / Stand-by button. 7. Wrinkle prevention selection button / Drum 3. End time selection button. light button. 4. Steam sellection button. 8. -
Page 20: Preparation Of Drying Machine
6.3. Preparation of drying machine • Plug the drying machine. • Open the loading door. • Remove any foreign material inside it. • Place the laundry to the drying machine without jamming them. • Push and close the loading door. NOTICE Ensure that no laundry is jammed to... -
Page 21: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Table of steam functioned cycles Programmes Programme Description Is a cycle aimed to reduce the wrinkle level on 1,5 (6 shirts and t-shirts using a steam function. This cycle pieces) usually eliminates the need for ironing for casual 1 (3 shirts after drying. - Page 22 Use it to dry your clothes made of synthetics, cotton Outdoor/Sports or mixed fabrics or waterproof products such as 1000 (Goretex) functional jacket, raincoat etc. Turn them inside out prior to drying. You may select from time programmes between 10 and 160 minutes to achieve the desired drying Time Programmes level at low temperature.
-
Page 23: Auxiliary Functions
End time Allergy UK is the trademark of the British Allergy Foundation. You can delay the end time of the program up The Seal of Approval has been to 24 hours with end time function. created to guide people 1. Open the loading door and place the requesting an advice that the laundry. -
Page 24: Water Tank
Water tank When the drying machine is operated and the child lock is If the water tank fills up while the program active, if the program selection continues, the warning indicator starts flashing button is turned, a double beeping and the machine goes into stand-by. In this noise will be heard. -
Page 25: Cancelling The Program
If the Wrinkle Prevention mode is active and the laundry is not Adding laundry after the drying removed after the program is operation starts may cause the completed, the wrinkle prevention dried laundry inside the drying function activates for 2 hours to machine to mix with wet laundry prevent the laundry inside the and leave the laundry damp at the... - Page 26 How to activate the steam cycle: When you turn on the machine and the rotate the cycle navigator to the ‘Ready to Wear’ or ‘Steam Refresh’ cycles, the indicator shown on the image below will turn on. This symbol indicates that you can run the drying cycle with a maximum load of 1.5 kg (6 pieces).
-
Page 27: Maintenance And Cleaning
• Remove the second part (outer filter) by 7 Maintenance and cleaning pulling it upwards. Read the “Safety Instructions” first! 7.1 Lint filters (internal and external filters) / Cleaning of the Interior Surface Ensure that hair, fibre and cotton of the Loading Door balls do not fall into the slot where The hair and fibres that are separated from the filters are installed. -
Page 28: Cleaning The Sensor
7.2 Cleaning the sensor • Insert the lint filters on one another and place it back in its place. The drying machine has humidity sensors that detect whether the laundry is dry. To clean the sensors: Open the drying machine loading door. If the machine is hot due to drying operation, wait until it cools. -
Page 29: Cleaning The Condenser
If you do not empty the water tank, during the next drying sessions the machine will stop Pull the brush to the operating due to the water tank being full and a left to remove it. You Water Tank warning icon will blink. In this case can use the cleaning empty the water tank and to continue drying brush to clean... - Page 30 You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues. When the air deflector cover is removed, it is normal to have water at the plastic section in front of the...
-
Page 31: Troubleshooting
8 Troubleshooting The drying takes too long. Lint filter (interior and exterior filters) pores may be clogged. >>> Can be cleaned with vacuum cleaner. The front side of the condenser may be clogged. >>> Clean the front of the condenser. The ventilation grills in front of the machine might be closed. - Page 32 Fiber filter cleaning icon is lit Lint filters (interior and exterior filters) may be unclean. >>> Can be cleaned with vacuum cleaner. A layer may be formed in the lint filter pores, leading to clogging. >>> Can be cleaned with vacuum cleaner.
- Page 33 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 ARÇELİK Supplier name or trademark 900 KMP I Model name 7188270130 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 258,6 Annual Energy Consumption (kWh) Automatic Type of Control...
