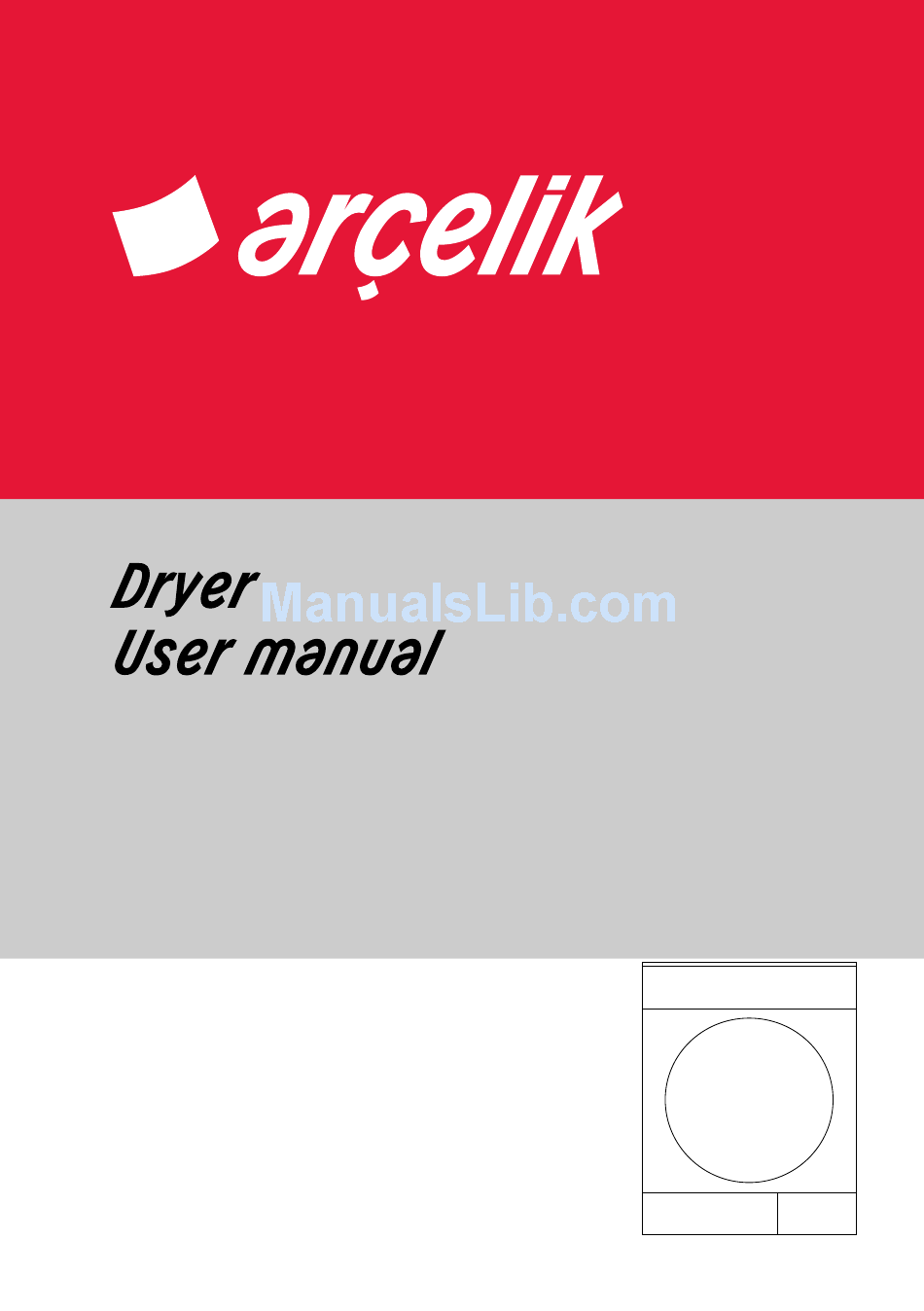

- Page 1 3890 KT 2960311420_KM/ 01-11-16.(10:51)
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Arçelik product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 4: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. • Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. -
Page 5: Product Safety
Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer. -
Page 6: Mounting Over A Washing Machine
Important instructions for safety and environment Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers. -
Page 7: Intended Use
Important instructions for safety and environment Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine. Installation Table for Washing Machine and Dryer Washing Machine Depth Dryer Depth 62 cm 60 cm 54 cm 50 cm... -
Page 8: Compliance With Rohs Directive
Important instructions for safety and environment This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 9: Your Dryer
Your Dryer 2.1 Overview 1. Top panel 2. Control panel 3. Loading door 4. Kick plate opening button 5. Ventilation grids 6. Adjustable legs 7. Kick plate 8. Type label 9. Lint filter 10. Water tank drawer 11. Power cord 9 / EN Dryer / User Manual... - Page 10 Your Dryer 2.2 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. 10 / EN Dryer / User Manual...
-
Page 11: Appropriate Installation Location
Installation 3.2 Removing the transportation Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation safety assembly and water drain is appropriate referring to the user's (See 3.3 Connecting to the drain manual. Remove the transportation safety 3.5 Electrical connection) assembly before using the dryer for the... -
Page 12: Electrical Connection
Installation 3.6 Transportation of the dryer • Unplug the dryer before transporting it. • Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections. We recommend carrying the dryer in upright position. -
Page 13: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer • Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 14: Correct Load Capacity
Preparation • Clean the filter periodically when there is visible air Following weights are given as examples. collection on it or when the symbol lights up, if Approximate weights Laundry there is a filter drawer cleaning warning symbol « (g)* »... -
Page 15: Control Panel
Program selection and operating your machine 5.1 Control Panel 1. On/Off/Cancel button 2. Program number indicator 3. Display 4. Start/standby button Sound warning level button/child lock 5. Time delay selection button 6. Sound warning level button/child lock 7. Timing / Steam program selection button 8. -
Page 16: Operating The Product
Operating the product Preparing the Machine 5.5 Main programs 1. Plug the machine“ The following main programs are available depending on fabric type. 2. Place laundry into the machine. • Cotton 3. Press On/Off/Cancel button for 1 second Dry durable laundry with this program. It dried under (long). - Page 17 Operating the product • Delicate You can dry your delicate clothes suitable for drying or clothes that are recommended for hand wash (silk blouses, thin underwear etc.) under low temperatures. It is recommended to dry your delicates in a laundry bag to prevent wrinkles and damage.
-
Page 18: Program Selection And Consumption Chart
Operating the product 5.7 Program selection and consumption chart Capacity Spin speed in washing Approximate amount of Drying Time Programs (kg) machine (rpm) remaining humidity (Minutes) Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Jeans... - Page 19 Operating the product 5.8 General Description of Steam Programs Monitoring Programs Program Definition Capacity Duration 28 min. 1.5 kg or 5-6 pieces of shirts This program can be used for cotton clothes (shirts, jackets, pants etc). This program will Official ensure that unwanted odours are removed from 22 minutes 1 kg or 3-4 pieces of shirts...
- Page 20 Operating the product 5.9 Steamy programs Filling steam tank: The steam programs you will use will allow you to 1. Turn on the machine, and move the program reduce odour in laundry and minimize wrinkles. key onto one of steam programs. Laundry should be separated with respect to its type and size.
-
Page 21: Auxiliary Functions
Operating the product 5.10 Auxiliary functions 6. The symbol on the display shall illuminate continuously when required amount of water Audible warning is added. In this case, at least one circulation Machine makes an audible warning when the steam program can be used. You may fill program is completed. -
Page 22: Changing The Program After It Is Started
Operating the product Cleaning the filter drawer 5.12 Starting the program Press the Start/Stand-by button to start the program. Warning symbol flashes periodically to remind that filter drawer must be cleaned. Indicating start of the program, Start symbol turns on, “:” separator in the middle of remaining time keeps flashing. -
Page 23: Cancelling The Program
Operating the product 5.15 Cancelling the program Adding and removing clothes during stand-by If you want to add or remove clothes to/from the If you want to cancel the program and terminate the machine after the drying program starts: drying operation for any reason after the machine starts 1. - Page 24 Operating the product 5.18 Drying Basket 24 / EN Dryer / User Manual...
- Page 25 Operating the product General Appearance of the Basket 25 / EN Dryer / User Manual...
- Page 26 Operating the product Placing the Basket in the Basket: Recommended Loads and Drying Durations: Wool Program in the Basket: The provided rates are guidance rates. If required, initiate additional drying. Wool Program in Basket allows you to dry your pants, skirts, wool sweaters and sneakers without spinning in the drum thanks to a racked basket that is placed in the Load Type...
-
Page 27: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently • A layer can build up on the filter pores that can cause experienced problems will be reduced if it is cleaned at clogging of the filter after using the dryer for a while. regular intervals. -
Page 28: Cleaning The Sensor
Maintenance and cleaning 6.2 Cleaning the sensor 6.3 Draining the water tank There are dampness sensors in the dryer that detect Dampness of the laundry is removed and condensed whether the laundry is dry or not. during drying process and the water that arise accumulates in the water tank. -
Page 29: Cleaning The Filter Drawer
Maintenance and cleaning 6.4 Cleaning the filter drawer • Take out the filter drawer sponge. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder. -
Page 30: Cleaning The Evaporator
Maintenance and cleaning 6.6 Steam cleaning of equipment • Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it Clean the filling port when it is dirty or blocked. Remove securely. -
Page 31: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. •... - Page 32 Wrinkles are not removed within wrinkle removing program. • Excess amount of laundry may have been placed => Place specified amount of laundry. • Steam application time may be selected in low level => Choose a program with high amount of steam. •...
