Dryer
User Manual
3881 KTS
Döküman Numarası
2960311873_EN/
281119.1157

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3881 KTS and is the answer not in the manual?

Questions and answers

Related Manuals for arcelik 3881 KTS

Summary of Contents for arcelik 3881 KTS

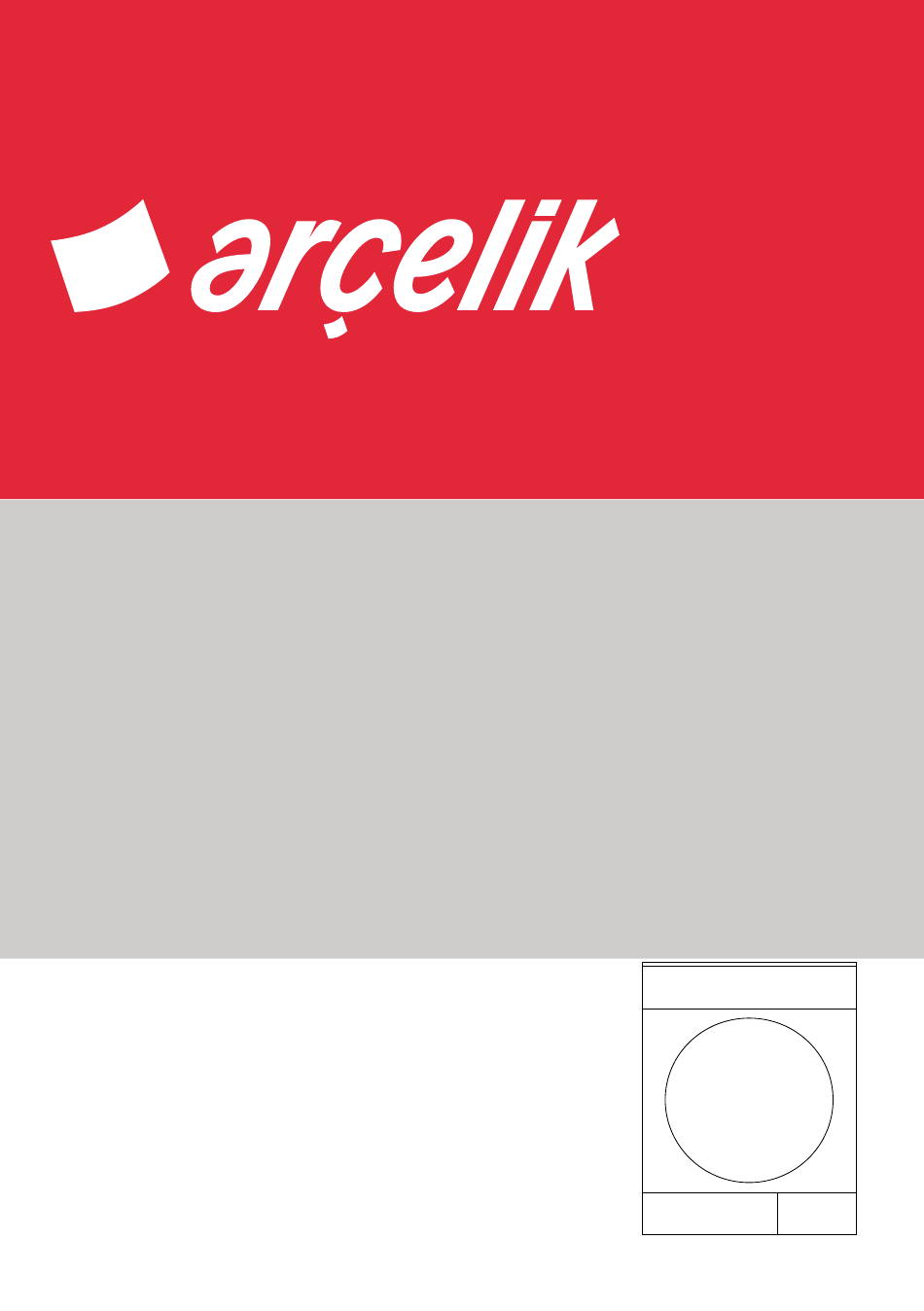

  • Page 1 Dryer User Manual 3881 KTS Döküman Numarası 2960311873_EN/ 281119.1157...

  • Page 2: Please Read This User Manual First

    Please read this user manual first! Dear Customer, WARNING! Thank you for prefering a Arçelik product. We hope that your product which has been • Warning against scalding hazard. manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other NOTE accompanying documentation carefully...

  • Page 3: Important Instructions For Safety And Environment

    1 Important instructions for safety and environment WARNING! NOTE Always have the installation and • This section contains safety repairing procedures carried instructions that will help protect out by the Authorized Service. from risk of personal injury or Manufacturer shall not be held property damage.

  • Page 4: Electrical Safety

    1.1.1 Electrical safety DANGER! DANGER! • Do not use extension cords, multi- • Electrical safety instructions plugs or adaptors to connect the should be followed while electrical dryer to power supply in order to connection is made during the decrease the risk of fire and electric installation.
  • Page 5 DANGER! DANGER! Points to be taken into • Never stop your dryer before the programme completes. If you must consideration for fire hazard: do this, remove all laundry quickly Below specified laundry or items and lay them out to dissipate the must not be dried in the dryer heat.

  • Page 6: Mounting Over A Washing Machine

    1.2 Mounting over a washing machine WARNING! • A fixing device should be used between the two machines when installing the • Never attempt to repair the dryer dryer above a washing machine. The by yourself. Do not perform any fitting device must be installed by the repair or replacement procedures authorized service agent.

  • Page 7: Child Safety

    1.4 Child safety 1.7 Package information • Packaging materials are dangerous for Packaging materials of the product are the children. Keep packaging materials manufactured from recyclable materials away from children. in accordance with our National Environment Regulations. Do not • Electrical products are dangerous for the dispose of the packaging materials together children.

  • Page 8: Your Dryer

    2 Your Dryer 3 Installation 2.1 Overview Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s manual If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

  • Page 9: Removing The Transportation Safety Assembly

    3.3 Connecting to the drain • The rear surface of the tumble dryer shall be placed against a wall. You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the DANGER! water collected in the water tank.

  • Page 10: Transportation Of The Dryer

    3.5 Transportation of the dryer Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections. WARNING! • We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from...

  • Page 11: Laundry Not Suitable For Drying In The Dryer

    4 Preparation • For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly. . 4.1 Laundry suitable for drying in the dryer • Clean the filter periodically.Read the Maintenance and cleaning of filters for Always obey the instructions given on the detalied information.

  • Page 12: Operating The Product

    5. Operating the product 5.1 Control panel On/Off/Cancel button Programme number indicator Display Start / Pause button End time setting selection button Audio warning level / Child lock button Timer programmes selection button Programme selection knob 5.2 Display Symbols Remaining time indicator* Filter Drawer Cleaning warning symbol Filter cleaning warning symbol Audio warning Symbol...
  • Page 13 5.3 Preparing the machine Plug in the machine. Place the laundry in the machine. On/off/cancel Press the button for 1 second (long). When your machine is operated for the first time, it starts with the default programme (wardrobe dryness for cottons).

  • Page 14: Programme Selection And Consumption Table

    5.4 Programme selection and consumption table Programmes Programme Description You may dry your cotton laundry to be ironed Cottons Iron Dry in this program to have them slightly damp for 1000 ease of ironing. (Shirt, T-shirt, tablecloth, etc.) You may dry all your cotton laundry in this program.
  • Page 15 It dries the shirts in a more sensitive manner, Gentle Care / Shirts 1200 and causes less creasing and easier ironing. It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is Hygiene (BabyProtect+) provided with high temperature.

  • Page 16: Start / Pause

    5.6 Warning symbols End Time Setting Press selection End Time button to set the desired Warning symbols may differ Setting according to the model of your symbol lights up on the machine. display.(When the button is pressed End Time and hold, proceeds Lint filter cleaning uninterruptedly).
  • Page 17 Adding / removing laundry in panel are deactivated when the Child Lock is active. Pause mode In order to activate the Child Lock, press Audio In order to add or take out laundry after the Warning, Child Lock button for 3 seconds. drying programme has started: To start a new programme after the current Press Start/Pause button to switch the...

  • Page 18: End Of Programme

    CAUTION: As the inside of the machine will be excessively hot when you cancel the programme while the machine is running, activate the ventilation programme to cool it down. 5.11 End of programme Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator when the programme comes to an end.

  • Page 19: Maintenance And Cleaning

    6 Maintenance and cleaning • Clean both filters under water running in reverse direction of fibre accumulation or with a soft brush. Dry the filter before 6.1 Loading Door Inner Surface placing it back. The hair and fibres that are separated from the laundry during drying process is collected by the Fibre Filter.

  • Page 20: Draining The Water Tank

    NOTE NOTE • Clean metal surfaces of the sensors 4 • If the direct water draining is used as an times a year. option, there is no need to empty the water tank. • Do not use metal tools when cleaning 6.4 Cleaning the evaporator metal surfaces of the sensors.
  • Page 21 WARNING! • You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands. • Cleaning by left to right movements may damage the evaporator fins. This may lead to drying issues.

  • Page 22: Troubleshooting

    7 Troubleshooting Loading door might be closed completely. >>> Push the loading door until the closing sound is heard. Water tank warning symbol is on/flashing. Drying operation takes too long. Water tank may be full. >>> Empty the water tank. Fibre filter (interior and exterior filter) pores may be clogged.
  • Page 23 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 ARÇELİK Supplier name or trademark 3881 KTS Model name Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 234,7 Automatic Type of Control...
