- Page 1 3870 KT Döküman Numarası 2960311393_EN/ 05-09-16.(17:31)
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Arçelik product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 4: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. - Page 5 Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.
- Page 6 Important instructions for safety and environment Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers.
-
Page 7: Mounting Over A Washing Machine
Important instructions for safety and environment 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. •... -
Page 8: Intended Use
Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • Use the dryer only for drying laundry that are marked accordingly. •... -
Page 9: Compliance With The Weee Regulation And Disposing Of The Waste Product
Important instructions for safety and environment 1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 10: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,5 cm Depth 53 cm Capacity (max.) 7 kg** Net weight (plastic front door usage) 46,5 kg Net weight (glass front door usage) 48,5 kg Voltage Rated power input... -

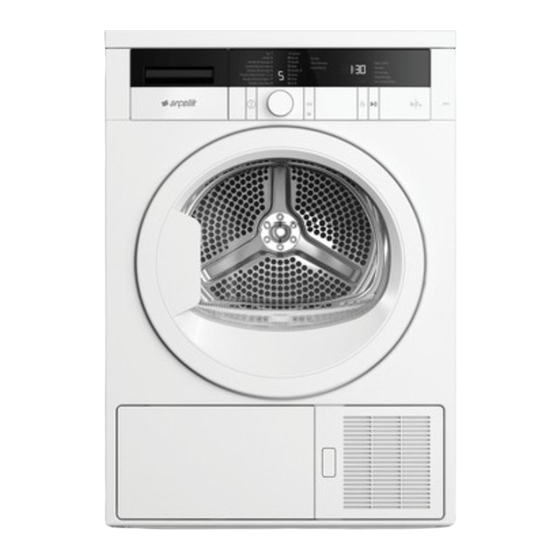

Page 11: Your Dryer
Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 11 / EN... -
Page 12: Removing The Transportation Safety Assembly
Installation 3.2 Removing the transportation Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for safety assembly use, make sure that the electricity and water drainage systems are appropriate by reading the information/ CAUTION: Remove the transportation instructions given in the user manual before calling safety assembly before using the product... -
Page 13: Electrical Connection
Installation 3.4 Connecting to the drain 3.5 Adjusting the feet In products equipped with condenser unit, water In order to ensure that the product operates more accumulates in the water tank during the drying cycle. silently and vibration-free, it must stand level and You should drain accumulated water after each drying balanced on its feet. -
Page 14: Warnings About Sounds
Installation 3.8 Warnings about sounds 3.9 Changing the illumination lamp In case an illumination lamp is used in your laundry It is normal to hear a metallic noise dryer from the compressor sometimes during To change the Bulb/LED used for illumination of your operation. -
Page 15: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 16: Correct Load Capacity
Preparation • Clean the filter periodically when there is visible Following weights are given as examples. air collection on it or when the symbol lights up, Approximate weights Laundry if there is a filter drawer cleaning warning symbol (g)* » available. (See 6. 4 Cleaning the filter «... - Page 17 Operating the Product 5.1 Control Panel 1. On/Off/Cancel button 2. Program button 3. Program number indicator 4. Sound warning level button/child lock 5. Remaining time indicator 6. Delayed operation setting LED 7. Start/Stand-by button 8. Time delay selection button Dryer / User Manual 17 / EN...
-
Page 18: Program Selection
Operating the Product 5.2 Preparing the Machine 5.5 Additional programs 1. Plug the machine“ The following additional programs are available in the 2. Place laundry into the machine. machine for special situations. On/Off/Cancel 3. Press button for 1 second (long). Additional programs may vary depending 4. -
Page 19: Operating The Product
Operating the Product • Refresh Ventilates for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothes that have been enclosed for a long time with this program to remove their odour. • Timer programs You can select the 30 mins or 45 mins timer program to achieve the desired final drying level under low temperature. - Page 20 Operating the Product Program selection and consumption chart Capacity Spin speed in washing Approximate amount of Drying time Programs (kg) machine (rpm) remaining humidity (minutes) Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Shirt...
- Page 21 Operating the Product 5.6 Auxiliary functions Changing the time delay duration Audible warning If you want to change the duration during the countdown: Machine makes an audible warning when the On/Off/Cancel 1. Press the button for 3 seconds to program is completed. To adjust the sound level, use the cancel the program.
-
Page 22: Cancelling The Program
Operating the Product 5.9 Changing the program after it is 5.10 Cancelling the program started If you want to cancel the program and terminate the drying operation for any reason after the machine starts You can change the program you selected to dry your On/Off/Cancel running, keep the button pressed for... -
Page 23: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently • A layer can build up on the filter pores that can experienced problems will be reduced if it is cleaned at cause clogging of the filter after using the dryer regular intervals. -
Page 24: Draining The Water Tank
Maintenance and cleaning 6.2 Cleaning the sensor 6.3 Draining the water tank There are dampness sensors in the dryer that detect Dampness of the laundry is removed and condensed whether the laundry is dry or not. during drying process and the water that arise To clean the sensors: accumulates in the water tank. - Page 25 Maintenance and cleaning 6.4 Cleaning the filter drawer • Take out the filter drawer sponge. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder.
-
Page 26: Cleaning The Evaporator
Maintenance and cleaning 6.5 Cleaning the evaporator • Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close Clean the lint accumulated on the fins of the evaporator it securely. located behind the filter drawer with a vacuum cleaner. •... -
Page 27: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. •... -
Page 28: Sorun Giderme
Sorun giderme Lint Filter Cleaning symbol is flashing. • Filter housing is clogged with lints. >>> Clean the lint filter housing. • A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.
