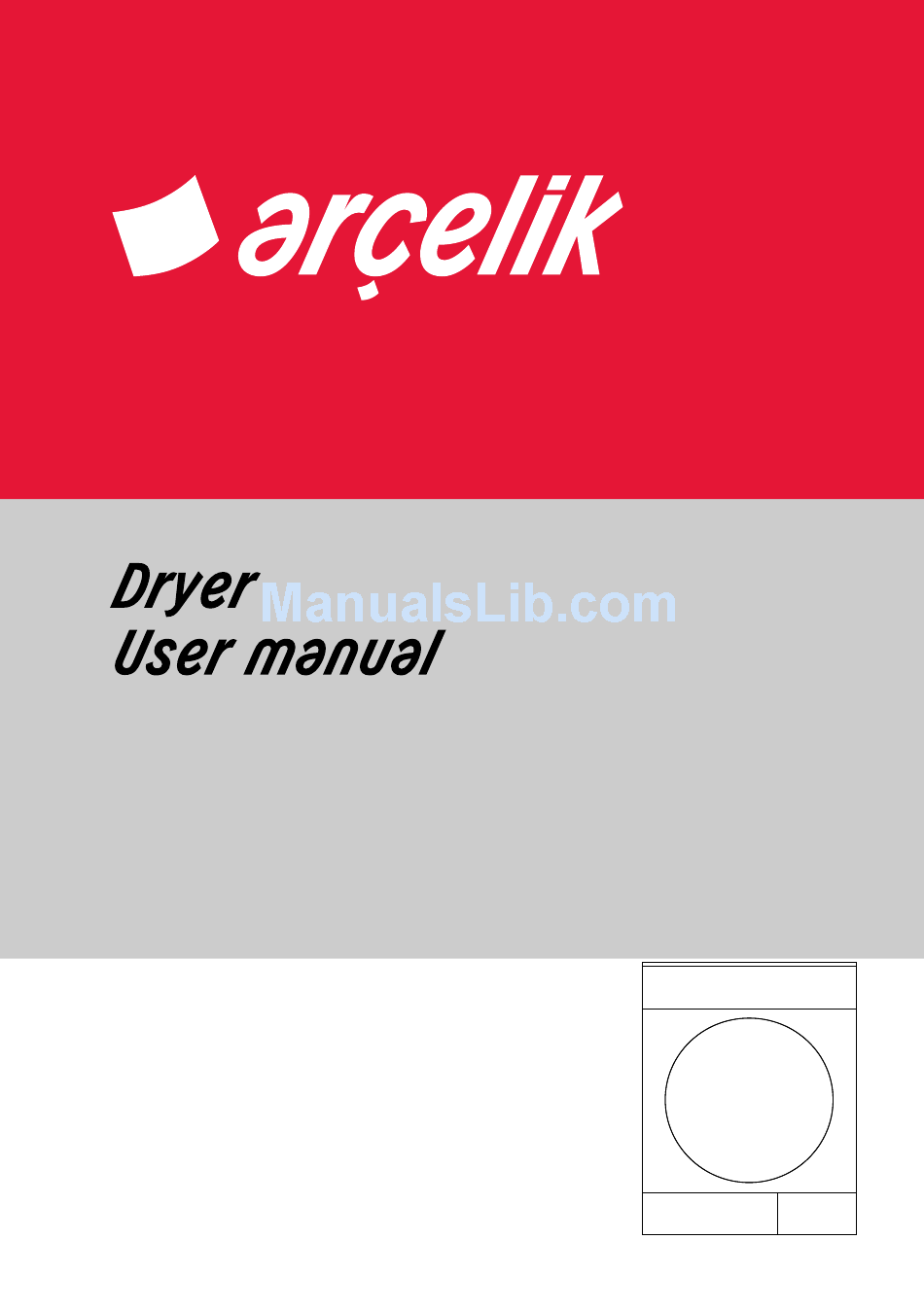

- Page 1 3886 KT 3886 KTS 3886 KTR Döküman Numarası 2960310394_EN/ 05-09-16.(17:17)
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Arçelik product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. - Page 3 1 Önemli güvenlik ve çevre talimatları 4 5 Program seçimi ve kurutma makinesinin çalıştırılması 1.1 Genel güvenlik ..... . .4 5.1 Kontrol paneli .
-
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 5: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. - Page 6 Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.
- Page 7 Important instructions for safety and environment Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers.
-
Page 8: Mounting Over A Washing Machine
Important instructions for safety and environment 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. •... -
Page 9: Intended Use
Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • Use the dryer only for drying laundry that are marked accordingly. •... -
Page 10: Compliance With The Weee Regulation And Disposing Of The Waste Product
Important instructions for safety and environment 1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 11: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,5 cm Depth 59,8 cm Capacity (max.) 8 kg ** Net weight (plastic front door usage) 50,5 kg Net weight (glass front door usage) 52,5 kg Voltage Rated power input... -
Page 12: Your Dryer
Your Dryer 2.1 Overview 1. Top panel 2. Control panel 3. Loading door 4. Kick plate opening button 5. Ventilation grids 6. Adjustable legs 7. Kick plate 8. Type label 9. Lint filter 10. Water tank drawer 11. Power cord 12 / EN Dryer / User Manual... -
Page 13: Package Contents
Your Dryer 2.2 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 13 / EN... -
Page 14: Appropriate Installation Location
Installation Refer to the nearest Authorized Service Agent for CAUTION: Do not place the product on installation of the product. To make the product ready for top of the power cord. use, make sure that the electricity and water drainage systems are appropriate by reading the information/ 3.2 Removing the transportation instructions given in the user manual before calling... -
Page 15: Electrical Connection
Installation 3.4 Connecting to the drain 3.5 Adjusting the feet In products equipped with condenser unit, water In order to ensure that the product operates more accumulates in the water tank during the drying cycle. silently and vibration-free, it must stand level and You should drain accumulated water after each drying balanced on its feet. -
Page 16: Changing The Illumination Lamp
Installation Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process. 3.9 Changing the illumination lamp In case an illumination lamp is used in your laundry dryer To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service. -
Page 17: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 18: Correct Load Capacity
Preparation • Clean the filter periodically when there is visible Following weights are given as examples. air collection on it or when the symbol lights up, if Approximate weights Laundry there is a filter drawer cleaning warning symbol « (g)* »... -
Page 19: Control Panel
Program selection and operating the drying machine 5.1 Control Panel Zaman Programları Günlük Hassas Sentetik Ütü Kuruluğu Yünlü Kurutma Sentetik Dolap Kuruluğu Moda Kurutma Pamuklu Ütü Kuruluğu Sessiz Pamuklu Dolap Kuruluğu Tazeleme Ütü Kuruluğu Pamuklu Dolap Kuruluğu Yorgan Dolap Kuruluğu Pamuklu Ekstra Kuru Gömlek Son / Kırışık Önleme... -
Page 20: Program Selection
Operating the Product 5.3. Preparation of drying machine 5.4 Program selection Plug the drying machine. There are 16 programs on your drying machine. Open the loading door. Place the laundry to the drying machine without jamming them. Push and close the loading door. Ensure that no laundry is jammed to the loading door. - Page 21 Operating the Product 5.5 Program selection and consumption chart Programs used in the drying machine are explained in the following table in detail. Capacity Spin Speed in Washing Drying Programs Program Description (kg) Machine (rpm) Time (min) You may dry all your cotton laundry in this program. (T-shirt, pants, Cotton Cupboard pyjamas, baby clothes, underwear, linen, etc.) You can put your 1000...
- Page 22 Operating the Product • Quilt Drying Instructions: Dry fibre quilts with a label that indicates it can be dried in drying machine. Remove the quilt cover before loading the quilt to the drying machine. Load the quilt to the machine after folding it in two. Ensure that you have loaded the quilt correctly to prevent damage to the machine and the quilt.
-
Page 23: Warning Symbols
Operating the Product 5.6 Auxiliary functions Changing the Time Delay duration If you want to change the duration during the Time Delay countdown: • Time delay deactivates when the dryer is turned off You can delay the end of the program for up to 24 hours and on by the On/Off/Cancel button. -
Page 24: Child Lock
Operating the Product 5.9 Child Lock Fibre filter cleaning When the program is completed, the continuous warning The drying machine has a child lock which prevents the symbol for filter cleaning turns on. program flow from being interrupted when the buttons are pressed during a program. -
Page 25: Cancelling The Program
Operating the Product 5.10 Changing the program after it is 5.11 Cancelling the program started To cancel the program after the drying machine starts running: • You can change the program you selected Press the Start/Stand-by button 1 second to •... -
Page 26: Maintenance And Cleaning
Maintenance and cleaning • A layer can build up on the filter pores that Service life of product extends and frequently experienced problems will be reduced if it is cleaned at can cause clogging of the filter after using regular intervals. the dryer for a while. -
Page 27: Draining The Water Tank
Maintenance and cleaning 6.2 Cleaning the sensor 6.3 Draining the water tank There are dampness sensors in the dryer that detect Dampness of the laundry is removed and condensed whether the laundry is dry or not. during drying process and the water that arise To clean the sensors: accumulates in the water tank. -
Page 28: Cleaning The Filter Drawer
Maintenance and cleaning 6.4 Cleaning the filter drawer • Take out the filter drawer sponge. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 3 drying cycles as a reminder. -
Page 29: Cleaning The Evaporator
Maintenance and cleaning 6.5 Cleaning the evaporator • Close the filter drawer as to lock the red button. Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner. • Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely. -
Page 30: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. •... -
Page 31: Sorun Giderme
Sorun giderme CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised Service Agent. Never try to repair a nonfunctional product yourself. Dryer / User Manual 31 / EN...
