Page 1

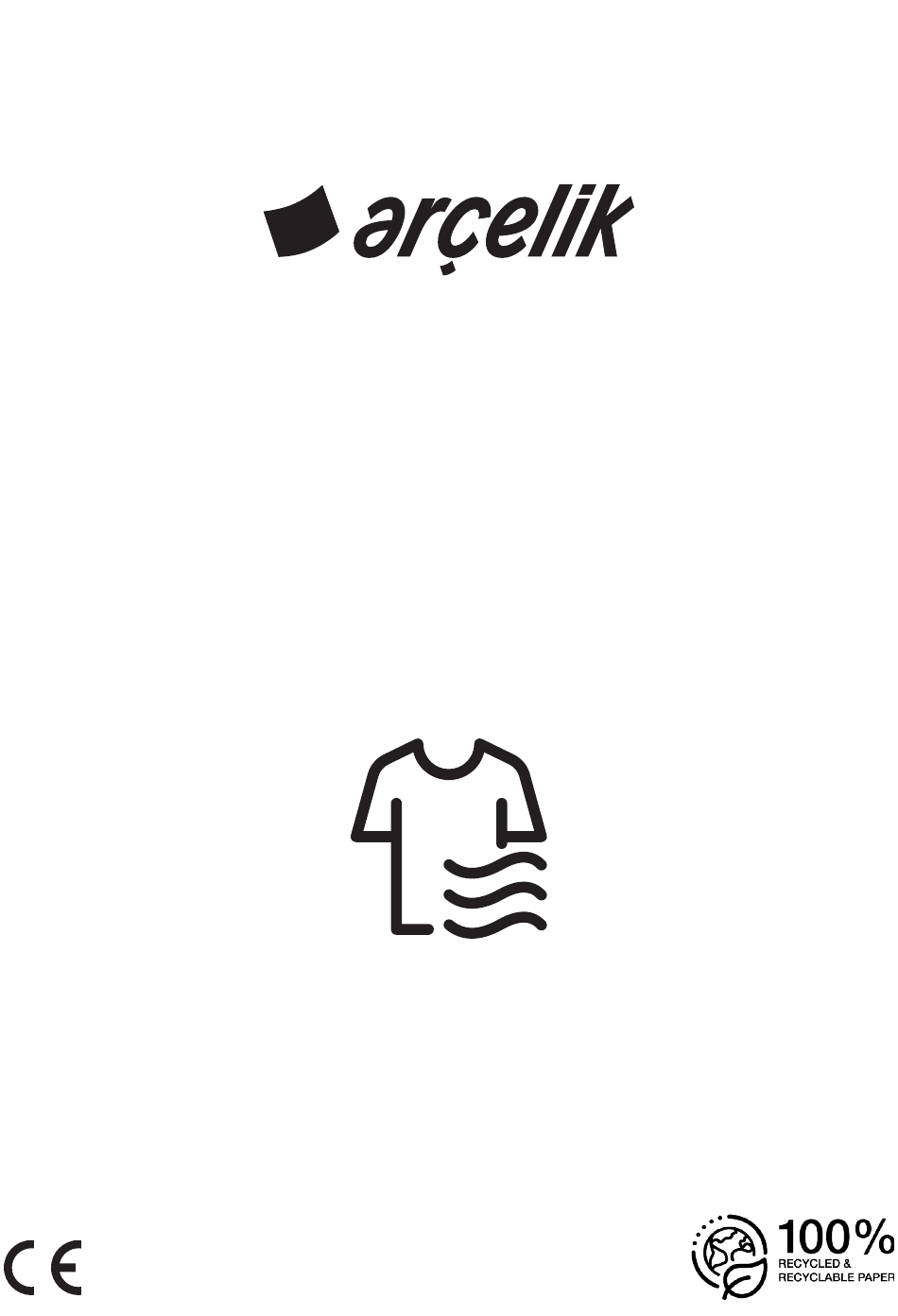

Dryer User Manual KM 810 KMG 810 2960313343_EN/010422.1357...
Page 2
Dear Customer, Please read this guide prior to use this product! Thank you for choosing Arçelik product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.
Page 4
6 Running the product ................18 6.1 Control Panel ......................18 6.2 Symbols ......................18 6.3. Preparation of drying machine ................18 6.4 Program selection and consumption chart ............19 6.5 Auxiliary functions ....................21 6.6 Warning indicators ....................21 6.7 Starting the program ...................22 6.8 Child Lock ......................22 6.9 Changing the program after it is started ..............22 6.10 Cancelling the program ..................23 6.11 End of program ....................23...
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service.
• Keep the packaging materials away from children. Risk of injury and suffocation. • Keep all additives used with the product away from children. • Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety •...
Page 7
user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary. These operations shall be undertaken by the customer. • Check for any damage on the product before installing it. Do not have the product installed if it is damaged.
• The new hose sets supplied with the product shall be used. Do not re-use the old hose sets. Do not make attachments to the hoses. • Place the power cord and hoses not cause a risk of tripping over. •...
Page 9
• The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items. • Laundry softeners or similar products shall be used in align with the laundry softener instructions.
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •...
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations.
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,7 cm Capacity (max.) 8 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min.
4 Installation • Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact Read the “Safety Instructions” first! with any extrusion (a water tap, electrical outlet etc.).
4.4 Adjusting the stands Do not leave an accessory or any parts of the shipping safety group NOTICE inside the drum. Until the drying machine stands level 4.3 Water connection and sturdy, adjust Instead of periodically draining the water the stands by turning accumulated in the water tank, you can them left and right.
5 Preparation 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product.
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not...
6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the Cottons 1000 thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the most Cottons Eco 1000...
Page 20
You can use this programme for your dry clothes and laundry that you want to provide with hygiene without Hygienic Refresh washing them. It provides high hygiene for your dry textiles via heat effect. Energy consumption values Programmes Capacity (kg) Cottons Eco * 1000 1,98...
6.5 Auxiliary functions You can add or remove laundry Dryness level within end time. Displayed time is Dryness level button is used for adjusting to the sum of normal drying time and desired dryness. Program time may change end time. End Time LED turns off at depending on the selection.
Cleaning of filter drawer/ • Press the Start/Stand-by button to start the program. heat exchanger Warning symbol flashes periodically to remind Adding and removing clothes that filter drawer must be cleaned. during stand-by If you want to add or remove clothes to/from 6.7 Starting the program the drying machine after the drying program Press the Start/Stand-by button to start the...
6.10 Cancelling the program If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, Pause the program and turn the On/Off/Program Selection button; the program terminates. The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing...
7 Maintenance and cleaning • Open both of the lint filters (outer and inner) and remove the fibres with your hands or with the brush on the air deflector. You can clean the hair in the filters with a vacuum Read the “Safety Instructions”...
• Insert the lint filters on one another and place it back in its place. Clean the metal surfaces of the sensor 4 times a year. Do not use metal tools to clean the sensors’ metal surfaces. Due to fire and explosion hazard, do not use solutions, cleaning materials •...
Drain the water in the tank. Pull the brush to the left to remove it. You can use the cleaning brush to clean filter, condensing metal surface and accumulated fibre on If fibre is accumulated in the funnel on the the door.
Page 27
You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues. When the air deflector cover is removed, it is normal to have water at the plastic section in front of the...
8 Troubleshooting Drying operation takes too long. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed.
Page 29
Wrinkle prevention icon or light is lit. Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry Fibre filter cleaning icon is lit. Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry.. A layer may be formed on the fibre filter pores that leads to clogging.
Page 30
PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 ARÇELİK Supplier name or trademark 810KM / 7188310130 Model name 810KMG / 7188260120 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 236,0 Automatic Type of Control Non-automatic...
