GUIDA ALL'INSTALLAZIONE
T-SIDE
IT - Istruzioni originali

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-SIDE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for tau T-SIDE

Summary of Contents for tau T-SIDE

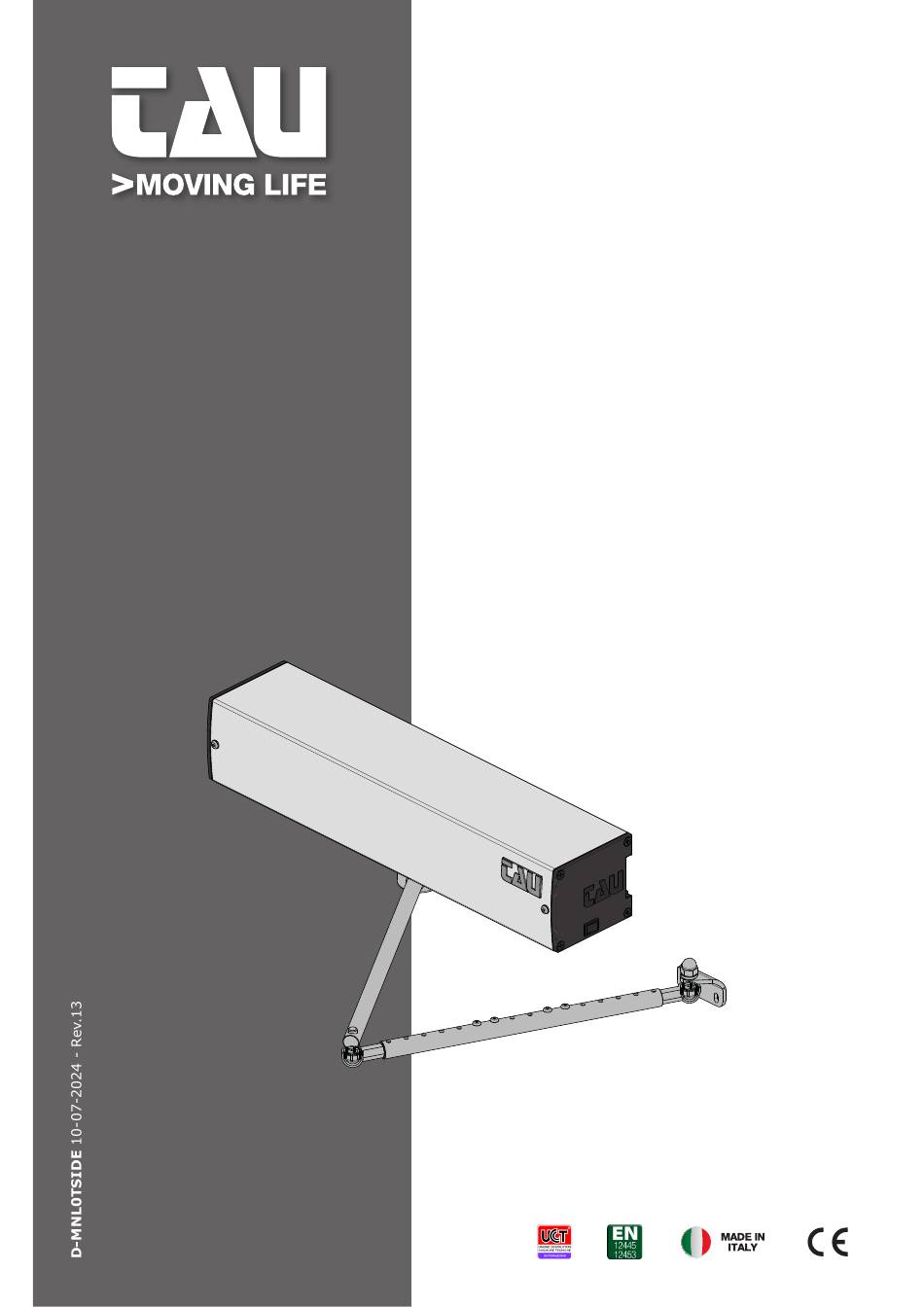

  • Page 1 GUIDA ALL’INSTALLAZIONE T-SIDE IT - Istruzioni originali...

  • Page 2: Mechanical Section

    The data described in this handbook are purely a guide. TAU reserves the right to change them in any moment. The manufacturer reserves the right to modify or improve products without prior notice. Any inaccuracies or errors found in this handbook will be corrected in the next edition.

  • Page 3: General Safety Warnings

    The T-SIDE series operator can be adjusted in order to satisfy the Low energy requirements (movement force and speed control), as indica- ted by standard EN16005; however, if the door will be used by the elderly, children or disabled individuals, protective devices (sensors) that comply with standard EN12978 must be installed.

  • Page 4: Model Description

    MODEL DESCRIPTION The T-SIDE series operator has an electro-mechanical motor for opening the pedestrian swing doors. Depending on the type of operator, reclosure is performed with a spring or a motor. The electronic control equipment is located inside the operator.
  • Page 5 3.0 COMPONENTS OF THE T-SIDE OPERATOR AND THEIR SIZES STANDARD OPERATOR T-SIDE-G T-SIDEL / T-SIDEL-S LEGEND: 1) Control unit T-SIDE DC 18 M 6) Spring for reclosing the leaf 11) Spring preload locking screw (only for T-SIDE-LS) (only for T-SIDE-LS)

  • Page 6: Preliminary Checks

    PRELIMINARY CHECKS Before assembling the automation, make sure the following requirements have been met: • The operator support structure must be solid and must not show any significant deformations. • The leaf structure must be rigid and robust. • The leaf pivots must be suitable and in a good condition. •...
  • Page 7 TAPERED PINS Use the tapered pin if a larger distance is required between the operator and the arm in comparison to the standard tapered pin. For the assembly dimensions follow the technical drawings in par. 7. For the assembly, follow the steps shown in the following figures: insert the M8 X 90 screw in the tapered pin (A), insert the arm in the closed shell (B), insert the tapered pin in the arm and tighten the two M6 X 20 screws (C).

  • Page 8: Technical Drawings

    TECHNICAL DRAWINGS The following illustrations represent the assembling with the hinge on the left side. To assemble with the right hinge, read the note below. ASSEMBLING WITH RIGHT SIDE DOOR HINGE. To assemble the operator with the hinge on the right side of the door, follow the instructions below: - Flip the automation by 180°...
  • Page 9 INSTALLATION MEASURES FOR PUSH SLIDING ARM P-10T-SIDEBST: 19.5 138.5 138.5 0 - 200 0 - 100 DIREZIONE DI APERTURA Fig. 7.1 C P-10T-SIDEBST SLIDE PULL ARM (FIG. 7.1D) a) Insert the M8 x 70 screw (2) in the tapered pin (1) Fig.
  • Page 10 7.2 ASSEMBLING OF THE OPERATOR SEEN FROM THE INSIDE WITH ELBOW SLIDING ARM P-10T-SIDEBSG150/ P-10T-SIDEBSG250 INSTALLATION MEASURES FOR ELBOW PULL SLIDING ARM P-10T-SIDEBSG150/ P-10T-SIDEBSG250: 138.5 138.5 19.5 19.5 0-200 DIREZIONE DI APERTURA Z max. BSG 150 Fig. 7.2 A BSG 250 Fig.
  • Page 11 7.3 ASSEMBLING OF THE OPERATOR SEEN FROM INSIDE - ARTICULATED ARM P-10T-SIDEBSS INSTALLATION MEASURES FOR PUSH ARTICULATED ARM P-10T-SIDEBSS: 19.5 138.5 138.5 DA 0 A 250 DIREZIONE DI APERTURA Fig. 7.3 A INSTALLATION MEASURES FOR ARTICULATED PULL ARM P-10T-SIDEBSS MOUNTED ON THE LEAF: 59.5 138.5 138.5...

  • Page 12: Required Tools

    Remove the aluminium cover from its seat, pulling it firmly upwards and without applying pressure on the sides, if possible. The T-SIDE series operator foresees the possibility of connecting the arm on both sides of the mechanical body and therefore makes it possi- ble to select the opening movement direction.
  • Page 13 To fix the devices use the screws and anchors suitable for the type of support. After fixing the operator and arm, follow the next steps for connecting the arm pin to the shaft output of the T-SIDE operator. 8.4 Selecting the spring load (only for T-SIDE-LS operators) The closing spring is pre-loaded in the factory to a standard value, indicated by the red line on the spring holder.
  • Page 14 T-SIDE-LS 8.7 Installation of the anti-derailment bearing Install the anti-derailment bearing close to the belt while maintaining a minimum clearance T-SIDE-L / T-SIDE-LS 9. REMOVING THE ARM (only for T-SIDELS operator Carefully follow the steps described below to remove the arm. In particular, unscrew the screw fixing the tapered pin only after the spring has been locked.
  • Page 15 Centrale elettronica di controllo Modello: T-SIDE Tipo:T-SIDE-G / T-SIDE-L / T-SIDE-LS Numero di serie: VEDI ETICHETTA ARGENTATA Denominazione commerciale: PORTA AUTOMATICA BATTENTE È realizzato per essere incorporato su una chiusura (porta battente pedonale) o per essere assemblato con altri dispositivi al fine di movimentare una tale chiusura per costituire una macchine ai sensi della Direttiva Macchine 2006/42/CE.
  • Page 16 Via Enrico Fermi, 43 - 36066 Sandrigo (VI) - Italy Tel +39 0444 750190 - Fax +39 0444 750376 info@tauitalia.com - www.tauitalia.com Foglietto illustrativo CARTA - Raccolta differenziata. Segui le indicazioni del tuo comune. (N.B.: togliere i punti metallici) Instruction leaflet PAPER - Waste separation.

This manual is also suitable for:

P-10t-side-gP-10t-side-lP-10t-side-ls
