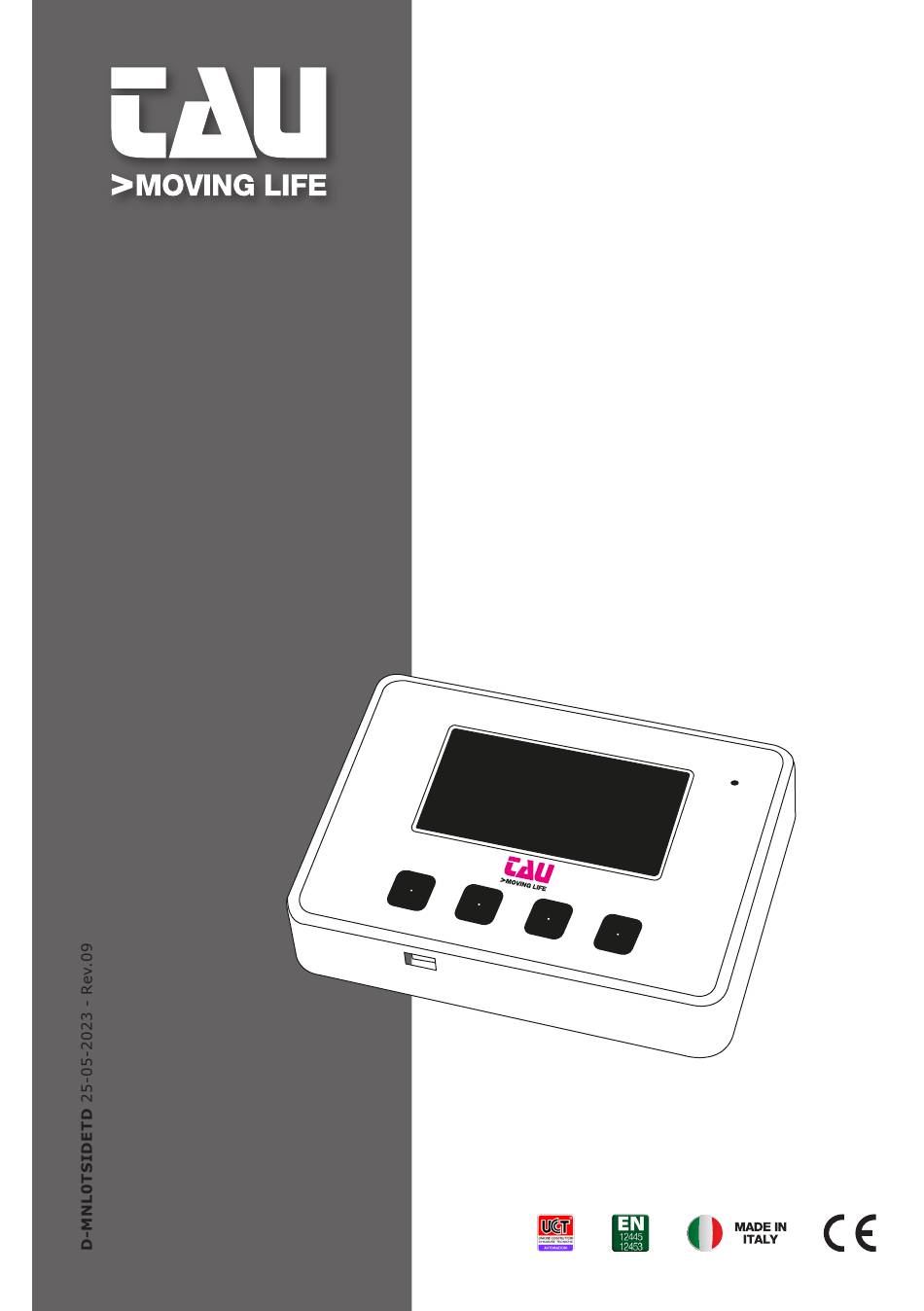

  • Page 1 INSTALLATION GUIDE GUIDA ALL’INSTALLAZIONE T-SIDETD IT - Istruzioni originali...

  • Page 2: Installation

    This product may only be installed and serviced by qualified personnel in compliance with current, laws, regulations and directives. When designing its products, TAU observes all applicable standards (please see the at- tached decla- ration of conformity) but it is of paramount importance that installers strictly observe the same stand- ards when installing the system.

  • Page 3: Digital Keyboard

    DIGITAL KEYBOARD Here below is the legend of symbols and the description of the various menus that can be selected on the keyboard: LIST OF SYMBOLS Symbols in the main menu Symbols shown in the “inputs diagnostic” screen (push P1 + P2 Symbol Description Symbol...
  • Page 4 MAIN MENU, WORK PROGRAMMES OF THE AUTOMATIC DOOR The active functions on the board are modified through the main menu. Pressing the 1st key on the left, P1, the various work programmes of the automatic door can be selected: BOTH DIRECTIONS: traffic in both directions ONLY OUT: traffic only out ALWAYS CLOSED: closed locked door MANUAL: the door opens and closes by operating it manually...

  • Page 5: Parameter Adjustment

    PARAMETER ADJUSTMENT Vmax.OP (Trimmer TM1) adjusts the maximum speed when opening Vmin.OP adjusts the minimum opening speed Vmax.CL (Trimmer TM2) adjusts the maximum Power.OP speed when closing Power.CL Vmin.CL Braking.OP adjusts the minimum closing speed Braking.CL Power.OP adjusts the force when opening Power.CL adjusts the force when closing Vmax.OP...
  • Page 6 DIP-SW Function Description Enables opening with always closed program. EMERGENCY OFF Disables opening with always closed program. Enables the disabled access function (activates the semi-au- tomatic opening mode) The opening of the door is activated only by the START command (term.

  • Page 7: Options Menu

    Enables/Disables the use of the password Level 0 to access the BASE PARAMETERS SETTING Use Password L0 On = password enabled Require password Every time you access when the T-SIDETD is in stand-by, a password to change programs consisting of 5 numbers will be requested. Off= password disabled Free access to the menu.
  • Page 8 Enables/Disables the use of the password Level 1 to access the ADVANCED PARAMETERS SET- TING On = password enabled Use Password L1 Every time you access when the T-SIDETD is in stand-by, a password Require password consisting of 5 numbers will be requested. to change programs...
  • Page 9 Display brightness 37 % Display contrast Options Menu information Displays the firmware versions of the T-SIDETD Digital Keyboard and the DC18 card to which it is connected. Sline TD rev: 6.2.0 (ID: AA.02) - Resource:2.11 DC18 rev:8.2 - type 1 (ID: 18.01)
  • Page 10 T_Elock adjusts the activation time of the electric lock. T_WElok It adjusts the leaf opening delay time when an electric lock is activated in conti- nuous mode. Impostazioni Technical parameters Call TAU technical service to modify these parameters.
  • Page 11 Motion profile Timings Technical parameters Update procedure Adjustments Stroke update It allows the user to perform the automation setup procedure (otherwise possible by pres- sing the key on the DC18 board, see the control unit manual). Motion profile Performs the update Timings of motion profile Technical parameters...

  • Page 12: Troubleshooting

    R2 Obstacle detected R2 Obstacle detected Obstacle is detected check sliding doors Example of “Error notification” R2 Obstacle present. DIAGNOSTICA INGRESSIINPUTS DIAGNOSTIC Push P1 + P2 buttons at the same time to check the status of all sensors installed on the automatic door.
  • Page 13 G1 Encoder fault Encoder fault check Make sure that the motor is moving, that the motor 1 connections encoder connector is correctly inserted and that its cable is not damaged. G2 Motor 1 fault Check motor Make sure that the operator is moving, that connections its connector is correctly inserted and that its cable is not damaged.
  • Page 16 Via Enrico Fermi, 43 - 36066 Sandrigo (VI) - Italy Tel +39 0444 750190 - Fax +39 0444 750376 info@tauitalia.com - www.tauitalia.com Foglietto illustrativo CARTA - Raccolta differenziata. Segui le indicazioni del tuo comune. (N.B.: togliere i punti metallici) Instruction leaflet PAPER - Waste separation.
