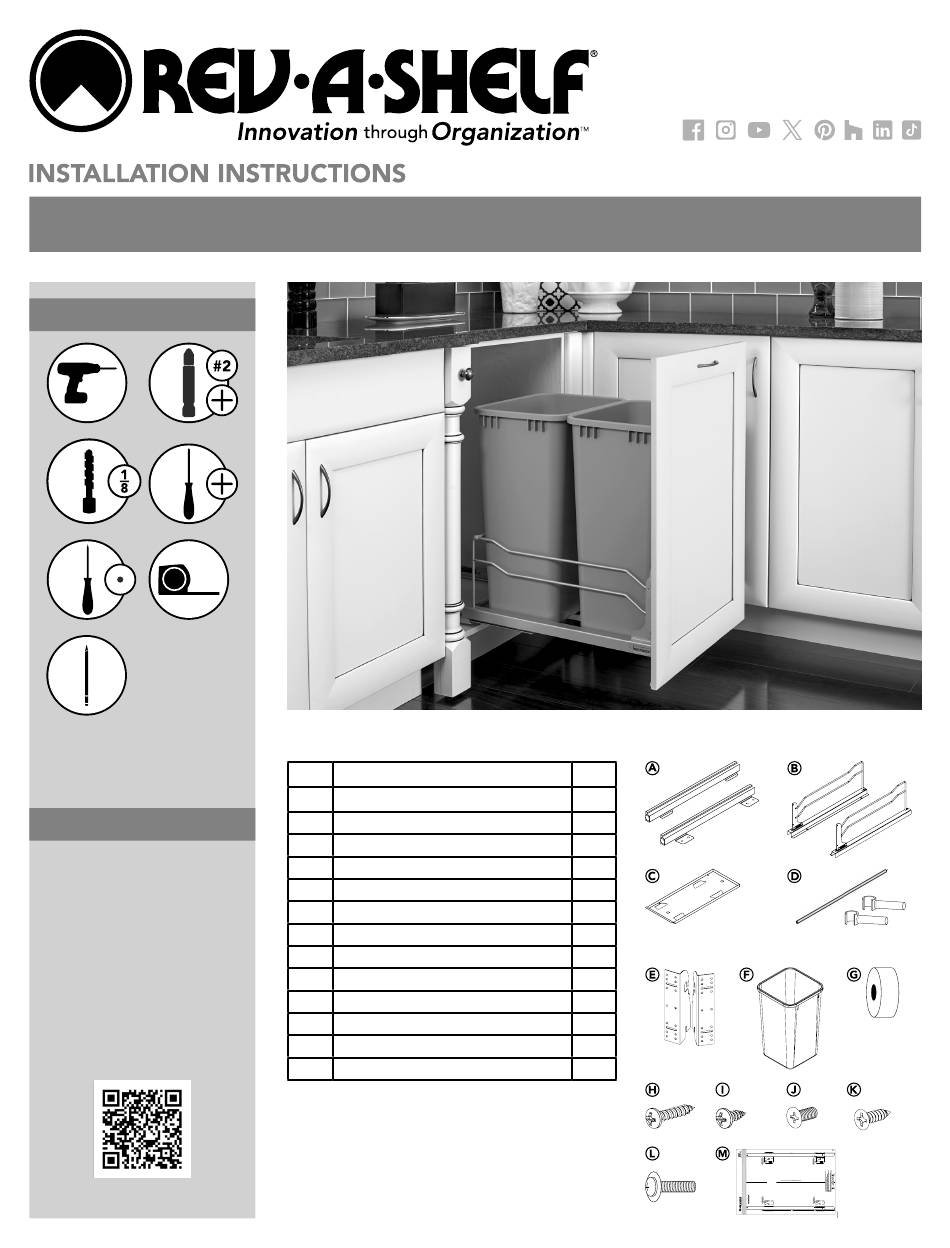

53WC SERIES PULLOUT WASTE CONTAINER
TOOLS REQUIRED:
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
PARTS LIST
No.
Description
A
Slides
B
Wall Sides
C
Chassis Bottom
D
Connecting Rod (w/ Arm)
E
Door-Mount Bracket
F
Waste Container
G
Door-Mount Bracket Spacer
H
#8 X 3/4" Deep Thread Screws
I
#6 x 3/8" Pan Head Screws
J
M4 x 10mm Flat Head Screws
K
#6 x 1/2" Flat Head Screws
L
1/4-20 x 1-1/4" Phillips Bolt (w/ Washer)
M
Frame Template
* Dependent on unit purchased
INSTALLATION INSTRUCTIONS: 53WC SERIES PULLOUT WASTE CONTAINER
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Qty.
2
2
1
2
2
1 or 2
*
4
8
2
4
6
4
1
YK
10 dicembre, 2024 5:42 PM 1F 0IST00033 NEW 640x450I MP 12-2024 VOLTURA pag. 1
I-53WC-0225
Advertisement
Related Manuals for Rev-A-Shelf 53WC Series
Summary of Contents for Rev-A-Shelf 53WC Series
- Page 1 1/4-20 x 1-1/4” Phillips Bolt (w/ Washer) PRODUCTS BEING INSTALLED Frame Template * Dependent on unit purchased 10 dicembre, 2024 5:42 PM 1F 0IST00033 NEW 640x450I MP 12-2024 VOLTURA pag. 1 WWW.REV-A-SHELF.COM/VIDEOS INSTALLATION INSTRUCTIONS: 53WC SERIES PULLOUT WASTE CONTAINER I-53WC-0225...
- Page 2 Use the Frame Template (M) to mark and pre-drill the screw locations. then attach to the rear of the unit as shown. NOTE: If installing into a inset application, the template must be set back to accommodate for the door thickness. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 ADD the door overlay to the HARDWARE HOLE DIMENSIONS If the door is smaller than the HARDWARE DOOR SCREW HOLE OVERLAY LOCATIONS opening SUBTRACT the inset LOCATION gap from the HARDWARE HOLE DIMENSIONS. INSTALLATION INSTRUCTIONS: 53WC SERIES PULLOUT WASTE CONTAINER...
- Page 4 On the units with a single bin, a Connecting Rod (D) is provided to secure the waste container in place and create a storage area in the back of the unit. 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 SERIES 53 WC PARA CONTENEDORES DE BASURA DESPLEGABLES POUBELLE COULISSANTE DE LA SÉRIE 53WC Herramientas requeridas: Outils Requis: LISTA DE PIEZAS / LISTE DES PIÈCES Descripción / La description Qty.
- Page 6 Utilisez le modèle de cadre (M) pour marquer et pré-perforer les emplacements des vis. REMARQUE : En cas d’installation dans un lieu encastré, le modèle doit être remis en place pour tenir compte de l’épaisseur de la porte. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 7 Instale el marco ensamblado en el gabinete y asegúrelo con (8) tornillos de Instale los soportes de puerta (E) en el marco ensamblado con el perno Phillips (4) 1/4-20 x 1-1/4” (con arandela) (L). Los soportes deben alinearse con la parte rosca profunda de #8 x 3/4”...
- Page 8 Votre ou vos contenants à déchets (F) sont maintenant prêts à être insérés. Sur les unités dotées d’un seul bac, une tige de raccordement (D) est prévue pour fixer le contenant à déchets en place et créer un espace d’entreposage à l’arrière de l’unité. 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 Customer Service: 800-626-1126 | rev-a-shelf.com...
