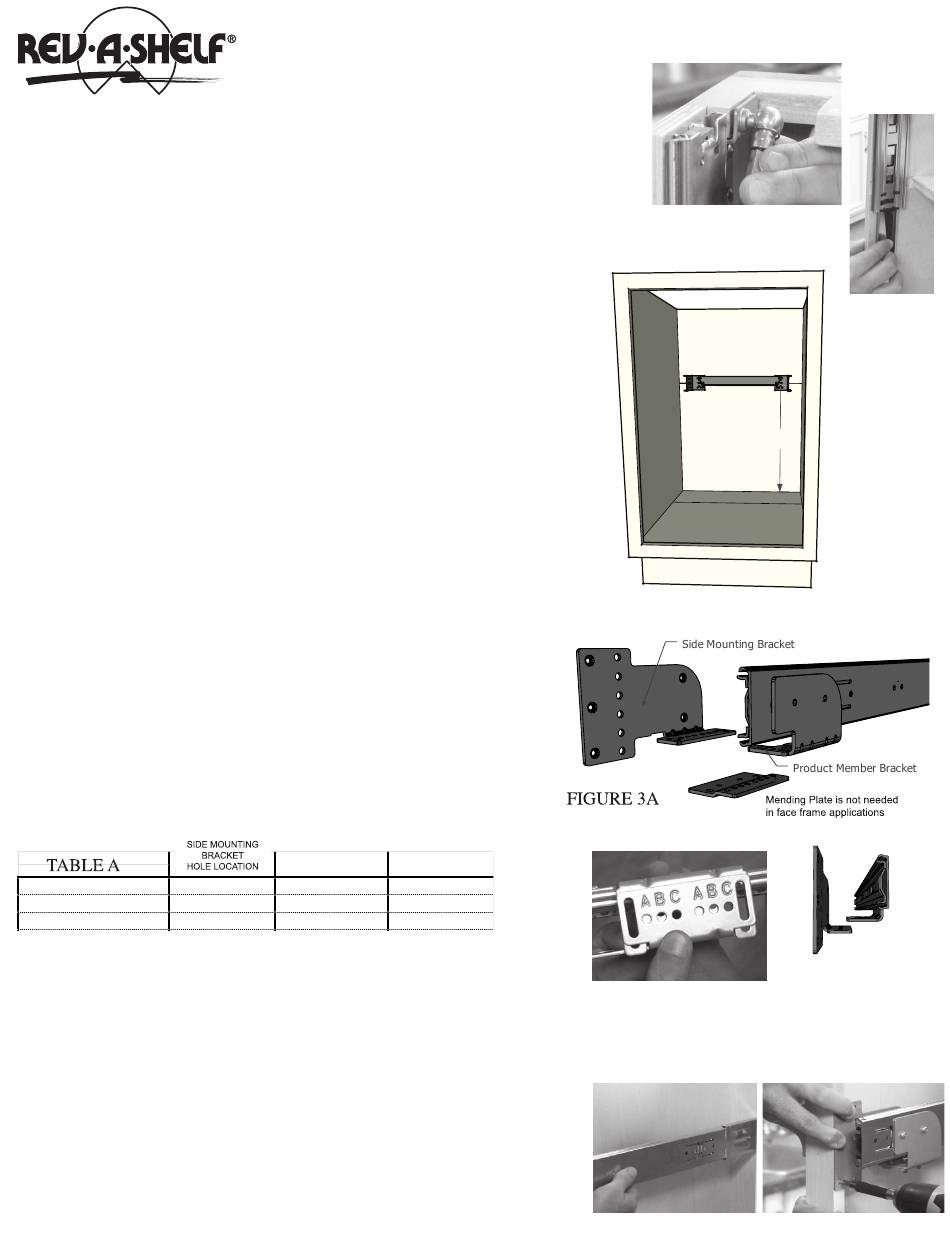

Rev-A-Shelf Richelieu 4WCTMRM2150DM2 Installation Instructions

Face Frame Cabinet Installation
Step 1A Preparing the Unit for installation
Remove the Gas Spring from the unit.
This is done by removing the two retainer clips from each of the ball sockets and then
popping the spring ends from the ball studs. (SEE FIGURE 1A)
Disengage the cabinet members from the unit by pressing the release levers on the 2
slides and pulling them away from the product members. (SEE FIGURE 1A)
Step 2A Attaching Rear Mounting Strap
Fasten the rear strap assembly to the rear cabinet wall using the (4) #8 x 5/8" pan head
screws provided. The CENTER slot of each rear socket should be positioned 17-15/16"
(for 50 qt. frames) or 12-7/8" (for 35 qt. frames) from the floor of the cabinet as shown
in FIGURE 2A. It is best to start with two screws in the center slots in case adjustments
are necessary. Make sure to center the strap assembly left to right according to the
opening of the face frame. (SEE FIG 2A)
Note: If rear of cabinet is thinner than ½", a furring strip should be used between the
back wall and the mounting strap to ensure the rear mounting strap is properly attached.
Keep in mind the minimum depth required is 21-3/4" and is measured from the back
of the door.
Step 3A Assembling Side Mounting Brackets
For face frame applications, only the product member bracket and the side
mounting bracket are necessary. (SEE FIGURE 3A)
Please refer to Table A for the proper hole alignment. If the table does not
apply to the cabinet in use, the outer slots will provide a fully adjustable
option to fit virtually any opening. Fasten the brackets according to table A
using the M5 nuts, bolts, and washers provided.
CABINET MEMBER CABINET MEMBER
HOLE LOCATION HOLE LOCATION
1.5" Face Frame
1.625" Face Frame
1.75" Face Frame
Frameless with .75" Wall
Step 4A Attaching Slides to Cabinet
Frameless with .708" Wall
Frameless with .625" Wall
While supporting the front of the side mounting bracket engage the back of the slide
Shimmed Inset Door 1.5" FF
with the rear strap assembly by sliding it into the outer socket of the assembly. The
Shimmed Inset Door 1.625" FF
product member should be pushed into the rear strap assembly until the front of each
Shimmed Inset Door 1.75" FF
product member and each side-mounting bracket is flush with the front of the face
frame. This is a press fit and there will be resistance. (SEE FIGURE 4A)
Continue to support the front of the slide. Do not let it fall as it may damage the rear
strap assembly.
Locate the bottom of the side-mounting bracket 15 ¾" (for 50 qt. frames) or 10-11/16"
(for 35 qt. frames) from the floor of the cabinet. Attach each bracket to the inside of
the face frame using the (3) #6 x 5/8" flat head screws provided. (SEE FIGURE 5A)
Note: it is recommended to pre-drill using a 3/32" drill bit
PROCEED TO STEP 6
INSTALLATION INSTRUCTIONS
For Full Height Top Mount Waste Containers
With Rev-A-Motion
For face frame style cabinets see steps 1A-4A
For frameless style cabinets see steps 1B-5B
For cabinets with inset doors see steps 1C-4C
PRODUCT MEMBER PRODUCT MEMBER
HOLE LOCATION HOLE LOCATION
C C
B B
A A
B A
B D
B B
C C
B B
A A
MENDING PLATE MENDING PLATE
HOLE LOCATION HOLE LOCATION
N/A
N/A
N/A
2 & 5
1 & 8
3 & 6
N/A
N/A
N/A
FIGURE 1A
17-5/16" (50 qt.)
12-7/8" (35 qt.)
FIGURE 2A
1-1/2" Face Frame Example
FIGURE 4A
-Product Member Top
-Side Mount Brkt Bottom
FIGURE 5A
