Rev-A-Shelf 53WC Series Installation Instructions Manual page 3

5

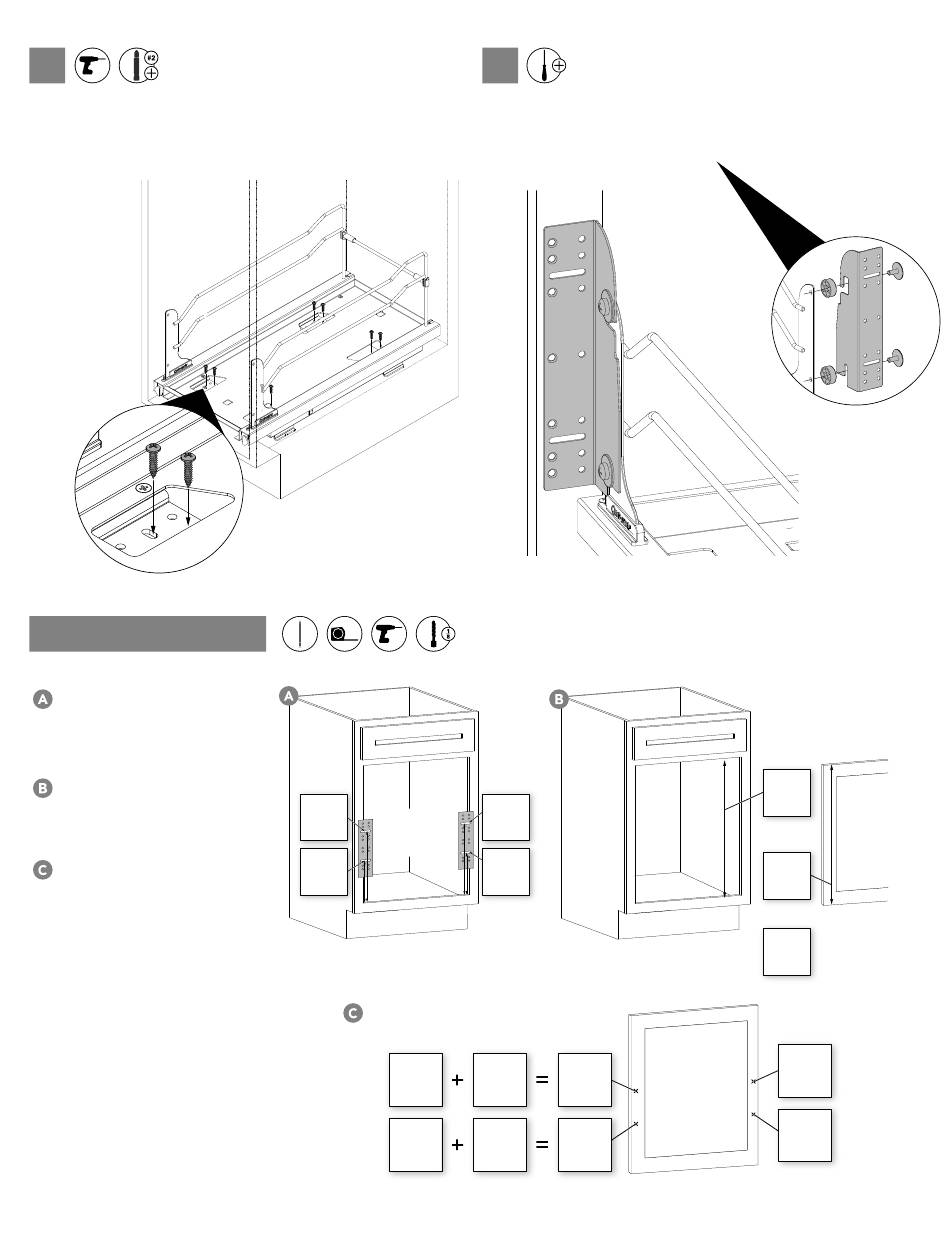

Install the assembled frame into the cabinet and secure with
(8) #8 x 3/4" Deep Thread Screws (H).
7- DOOR MOUNTING
Measure the distance from the
bottom edge of the opening to
the slotted holes in the door
hardware. This is the
HARDWARE HOLE LOCATION.
-
Measure the cabinet opening and
then measure the door height.
Take the difference of these two
numbers and divide it by 2.
This number is the DOOR OVERLAY.
-
Measure and mark SCREW
LOCATIONS, pre-drill pilot holes.
NOTE: Be careful not to drill
through the cabinet door.
-
NOTE: If the door is larger
than the opening, ADD the
door overlay to the HARDWARE
HOLE DIMENSIONS
If the door is smaller than the
opening SUBTRACT the inset
gap from the HARDWARE
HOLE DIMENSIONS.
DISTANCE
TO
HARDWARE
HOLE
HARDWARE
HOLE
LOCATION
INSTALLATION INSTRUCTIONS: 53WC SERIES PULLOUT WASTE CONTAINER
6
Install the Door-Mount Brackets (E) to the assembled frame with the (4) 1/4-
20 x 1-1/4" Phillips Bolt (w/ Washer) (L). The Door-Mount Brackets (E) should
line up with the thick portion of the cabinet door.
NOTE: Plastic Spacers (G) are provided if the Door-Mount Brackets (E) need
to be extended further to reach the thick portion of the door.
DOOR SCREW
OVERLAY LOCATIONS
CABINET
OPENING
DOOR SIZE
DIFFERENCE
DIVIDED BY 2
