Rev-A-Shelf 53WC Series Installation Instructions Manual page 2

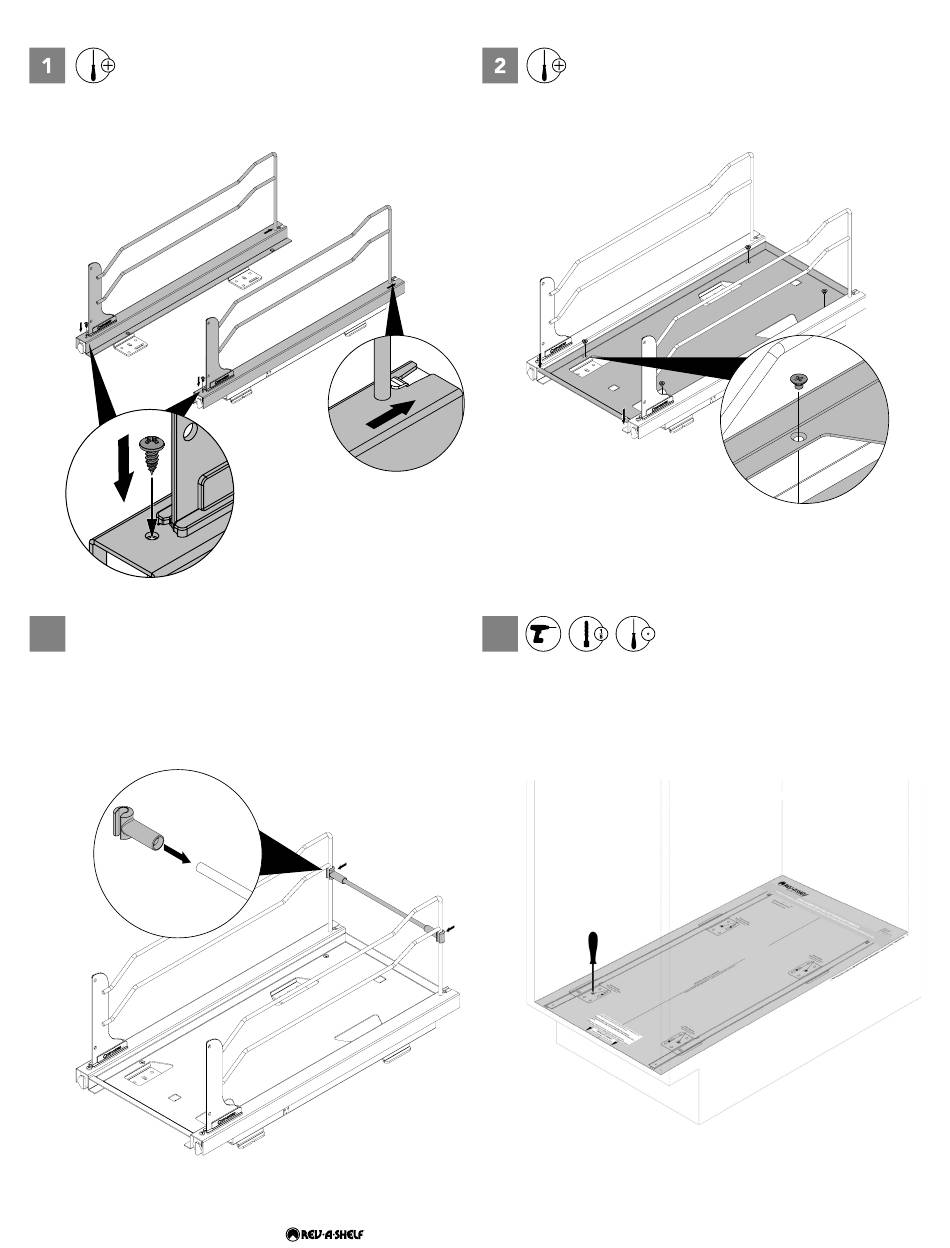

Attach the Slides (A) to the Wall Sides (B). The slide (A) should
engage with rear metal tab as shown. Secure slides to the wall
sides with (2) #6 x 3/8" Pan Head Screws (I).
3
Snap one end cap onto each end of the Connecting Rod (D),
then attach to the rear of the unit as shown.
2
Attach Chassis Bottom (C) to the Wall Slides using provided
(4) M4 x 10mm Flat Head Screws (J).
4
Use the Frame Template (M) to mark and pre-drill the screw locations.
NOTE: If installing into a inset application, the template must be set
back to accommodate for the door thickness.
Customer Service: 800-626-1126 | rev-a-shelf.com
