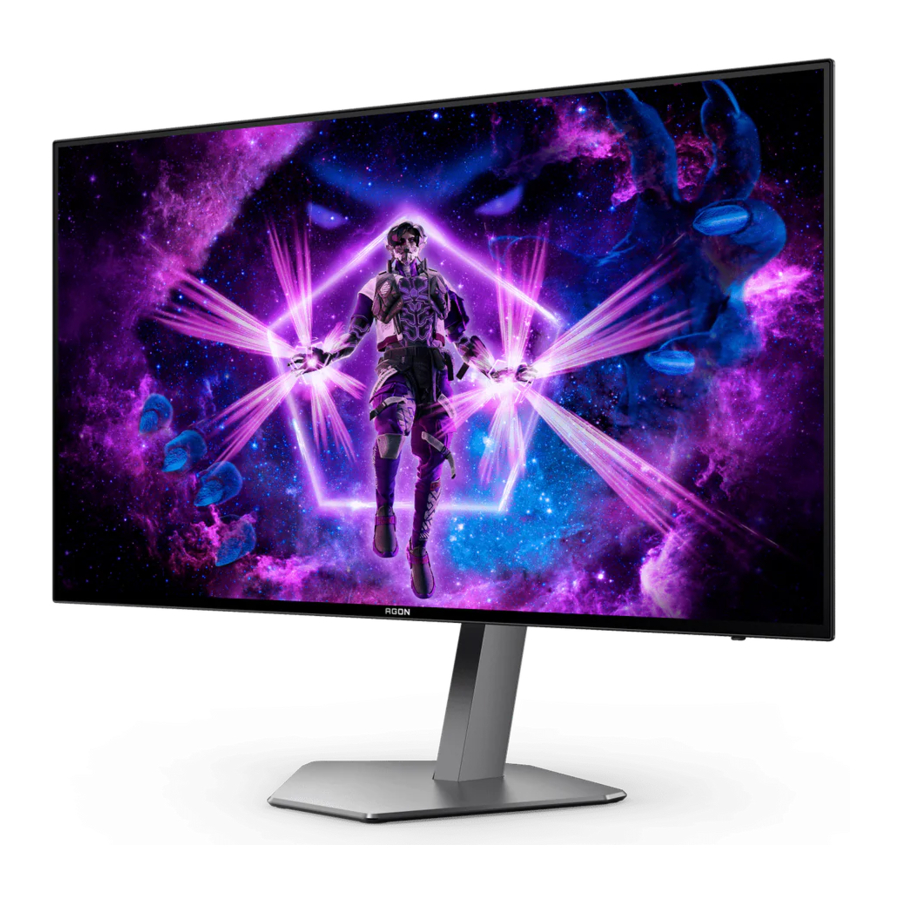

AOC AGON PRO AG276QKD Manual

Setup

Contents in Box

*Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base

Please setup or remove the base following the steps as above.

Wall hanger:

Specification of wall hanger screws: M4*10mm

Specification for base screw: M6*13 mm (effective thread 5.5 mm)

Adjusting the unit

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand to steady the monitor, and grasp only the bezel to adjust the monitor's angle.
You are able to adjust the monitor as above.

NOTE:
Do not touch the OLED screen when you change the angle. Touching the OLED screen may cause damage.

1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

Connecting the unit

Cable Connections In Back of Monitor:

1. Power
2. HDMI1
3. HDMI2
4. DisplayPort1
5. DisplayPort2
6. USB3.2 Gen1 upstream
7. USB3.2 Gen1 downstream + fast charging
   USB3.2 Gen1 downstream x1
8. Earphone

Connect to PC

1. Connect the power cord to the back of the display firmly.
2. Turn off your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.

If your monitor displays an image, installation was successful and is complete. If your monitor does not display an image, please refer to the "Troubleshooting" section.
To protect equipment, always turn off the PC and OLED monitor before connecting.

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:

1. Remove the base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Display design may differ from those illustrated.

1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

AMD FreeSync Premium function

1. AMD FreeSync Premium function is working with DisplayPort/HDMI
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com

Graphics Cards

• Radeon RX Vega series
• Radeon RX 500 series
• Radeon RX 400 series
• Radeon R9/R7 300 series (R9 370/X, R7 370/X, R7 265 except)
• Radeon Pro Duo (2016)
• Radeon R9 Nano series
• Radeon R9 Fury series
• Radeon R9/R7 200 series (R9 270/X, R9 280/X except)

Processors

• AMD Ryzen 7 2700U
• AMD Ryzen 5 2500U
• AMD Ryzen 5 2400G
• AMD Ryzen 3 2300U
• AMD Ryzen 3 2200G
• AMD PRO A12-9800
• AMD PRO A12-9800E
• AMD PRO A10-9700
• AMD PRO A10-9700E
• AMD PRO A8-9600
• AMD PRO A6-9500
• AMD PRO A6-9500E
• AMD PRO A12-8870
• AMD PRO A12-8870E
• AMD PRO A10-8770
• AMD PRO A10-8770E
• AMD PRO A10-8750B
• AMD PRO A8-8650B
• AMD PRO A6-8570
• AMD PRO A6-8570E
• AMD PRO A4-8350B
• AMD A10-7890K
• AMD A10-7870K
• AMD A10-7850K
• AMD A10-7800
• AMD A10-7700K
• AMD A8-7670K
• AMD A8-7650K
• AMD A8-7600
• AMD A6-7400K

HDR

This monitor is compatible with HDR10 formatted input signals.
The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. If you have no need for the automatically activated HDR functions, please select "OFF" from the display settings menu.

Note:

1. 3840×2160@50Hz/60Hz is only available on devices such as UHD players or Xbox/PS.
2. Display Settings:

   1. The display resolution is set to 2560x1440, and HDR is preset to ON. Under these conditions, the screen may slightly dim, indicating HDR has been activated.
   2. After entering an application, the best HDR effect can be achieved when the resolution is changed to 2560x1440 (if available).

Adjusting

Hotkeys

1	Source/Up
2	Dial Point/Down
3	Game Mode/Left
4	Light FX /Right
5	Power/ Menu/Enter

Power/Menu/Enter
Press the Power button to turn on the monitor.
When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor.

Dial Point/Down
When there is no OSD, press Dial Point button to show / hide Dial Point.

Game Mode/Left
When there is no OSD, press "Left" key to open game mode function, then press "Left" or "Right" key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

Light FX/Right
When there is no OSD, press "Right" key to active Light FX function.

Source/Up
When the OSD is closed, press Source/Auto/Up button will be Source hot key function.

OSD Menu Key Guide

Enter: Use Enter key to enter the next OSD level
Move: Use Left / Up / Down key to move OSD selection
Exit: Use Right key to exit OSD

Enter: Use Enter key to enter the next OSD level
Move: Use Right / Up / Down key to move OSD selection
Exit: Use Left key to exit OSD

Enter: Use Enter key to enter the next OSD level
Move: Use Up / Down key to move OSD selection
Exit: Use Left key to exit OSD

Move: Use Left / Right / Up / Down Key to move OSD selection

Exit: Use Left key to exit OSD to previous OSD level
Enter: Use Right key to enter next OSD level
Select: Use Up / Down key to move OSD selection

Enter: Use Enter key to apply the OSD setting and back to previous OSD level
Select: Use Down key to adjust OSD setting

Select: Use Up / Down key to adjust OSD setting

Enter: Use Enter key to exit OSD to previous OSD level
Select: Use Left / Right key to adjust OSD setting

OSD Setting

Basic and simple instruction on the control keys.

1. Press the MENU-button to activate the OSD window.
2. Follow Key Guide to move or select (adjust) OSD settings
3. OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down–button for 10s while OSD function is not active.

Notes:
If the product has only one signal input, the item of "Input Select" is disable to adjust.

Game Setting

	Game Mode	Off	No optimization by Game Mode.
		FPS	For playing FPS (First Person Shooters) games. Improves dark theme black level details.
		RTS	For playing RTS (Real Time Strategy). Improves the image quality.
		Racing	For playing Racing games, Provides fastest response time and high color saturation.
		Gamer 1	User's preference settings saved as Gamer 1.
		Gamer 2	User's preference settings saved as Gamer 2.
		Gamer 3	User's preference settings saved as Gamer 3.
	Shadow Control	0-100	Shadow Control Default is 50, then end-user can adjust from 50 to 100 or 0 to increase contrast for clear picture. If picture is too dark to be saw the detail clearly, adjusting from 50 to 100 for clear picture. If picture is too white to be saw the detail clearly, adjusting from 50 to 0 for clear picture
	Game Color	0-20	Game Color will provide 0-20 level for adjusting saturation to get better picture.
	Sniper Scope	Off /1.0 /1.5 /2.0	Zoom in locally to make it easier to target when shooting.
	AMD FreeSync	On / Off	Disable or Enable AMD FreeSync Premium. AMD FreeSync Premium Run Reminder: When the AMD FreeSync Premium feature is enabled, there may be flashing in some game environments.
	Low Input lag	On / Off	Shutting down the frame buffer can reduce input delay. Note: Low input delay is disabled by default and unadjustable when the field frequency is less than 120 Hz; and it is enabled by default and unadjustable when the field frequency is equal to 120 Hz and in the AMD FreeSync Premium state.
	Frame Counter	Off / Right-Up / Right-Down / Left-Down / Left-Up	Display V frequency on the corner selected (Frame counter feature only works with AMD graphic card.)
	HDMI1	Console/DVD / PC	Select the type of connected device. Set HDMI1 as game machine/DVD when the game machine or DVD display is connected.
	HDMI2	Console/DVD / PC	Select the type of connected device. Set HDMI2 as game machine/DVD when the game machine or DVD display is connected.

Note:
"Luminance" controls "Game Mode," "Shadow Control," and "Game Color" can only be adjusted when "HDR Mode" and "HDR" are set to "OFF."
When the Color Space under Color Settings is set to sRGB or DCI-P3, the Game Mode, Dark Field Control, and Game Tone items are not adjustable.

Luminance

	Contrast	0-100	Contrast from Digital-register.
	Brightness	0-100	Backlight Adjustment
	UniformBrightness	On/ Off	In the SDR model, once this feature is activated, the system will maintain consistent screen brightness even when the screen displays different sizes of bright white windows.
	Dark Boost	Off /Level 1 / Level 2 /Level 3	Enhance the screen details in the dark or bright area to adjust the brightness in the bright area and ensure that it is not oversaturated.
	Eco mode	Standard	Standard Mode
		Text	Text Mode
		Internet	Internet Mode
		Game	Game Mode
		Movie	Movie Mode
		Sports	Sports Mode
		Reading	Reading Mode
	Gamma	Gamma1	Adjust to Gamma 1
		Gamma2	Adjust to Gamma 2
		Gamma3	Adjust to Gamma 3
	HDR	Off	Set the HDR profile according to your usage requirements. Note: When HDR is detected, the HDR option is displayed for adjustment.
		DisplayHDR
		HDR Picture
		HDR Movie
		HDR Game
	HDR Mode	Off	Optimized for the color and contrast of the picture, which will simulate showing the HDR effect. Note: When HDR is not detected, the HDR Mode option is displayed for adjustment.
		HDR Picture
		HDR Movie
		HDR Game

Note:
"Luminance" controls "Contrast," "Eco Mode," and "Gamma" can only be adjusted when "HDR Mode" is set to "OFF."
No "Luminance" controls are adjustable when "HDR" is active.
When the Color Space under Color Settings is set to sRGB or DCI-P3, the Contrast, Brightness Scenario Mode, Gamma, and HDR/HDR Mode items are not adjustable.

PIP Setting

	PIP Setting	Off / PIP / PBP	Disable or Enable PIP or PBP.
	Main Source		Select main screen source.
	Sub Source		Select sub screen source.
	Size	Small / Middle / Large	Select screen size.
	Position	Right-up	Set the screen location.
		Right-down
		Left-up
		Left-down
	Audio	On: PIP Audio	Disable or Enable Audio Setup.
		Off: Main Audio
	Swap	On: Swap	Swap the screen source.
		Off: non action

Note:

1. No "PIP Setting" under "Brightness" controls are adjustable when "HDR" is active.
2. When PIP/PBP is enabled, some color-related adjustments in the OSD menu are valid only for the main screen, while the sub-screen is not supported. Hence, the main screen and the sub-screen may have different colors.
3. Set the input signal resolution to 1280X1440@60Hz at PBP to achieve the desired display effect.
4. When PBP/PIP is enabled, the compatibility of the main screen/sub-screen input source is shown in the following table:

PBP/PIP		Main source
		HDMI1	HDMI2	DP1	DP2
Sub source	HDMI1	V	V	V	V
	HDMI2	V	V	V	V
	DP1	V	V	V	V
	DP2	V	V	V	V

Color Setup

	LowBlue Mode	Off / Multimedia / Internet / Office / Reading	Decrease blue light wave by controlling color temperature.
	Color Temp.	Warm	Recall Warm Color Temperature from EEPROM.
		Normal	Recall Normal Color Temperature from EEPROM.
		Cool	Recall Cool Color Temperature from EEPROM.
		User	Restore user color temperature from EEPROM.
	Color Gamut	Panel Native	Standard color space panel.
		sRGB	Recall sRGB Color Temperature from EEPROM.
		DCI-P3	DCI-P3 color space.
	Red	0-100	Red gain from Digital-register.
	Green	0-100	Green gain from Digital-register.
	Blue	0-100	Blue gain from Digital-register.

Note:
"Luminance" controls under "Color Setup" can only be adjusted when "HDR Mode" or "HDR" is set to "OFF."
When Color Space is set to sRGB or DCI-P3, all other items under Color Settings cannot be adjusted.

Audio

Volume

0-100

Adjust volume setting

Light FX

	Light FX	Off / Low / Medium / Strong	Select the intensity of Light FX.
	Light FX Mode	Audio1 / Audio2 / Static / Dark Point Sweep / Gradient Shift / Spread Fill / Drip Fill / Spreading Drip Fill / Breathing / Light Point Sweep / Zoom / Rainbow / Wave / Flashing / Demo	Select Light FX Mode
	Pattern	Red / Green / Blue / Rainbow / User Define	Select Light FX Pattern
	Foreground R	0-100	User can adjust Light FX foreground color, when Pattern setting to user define
	Foreground G
	Foreground B
	Background R	0-100	User can adjust Light FX background color, when Pattern setting to user define
	Background G
	Background B

Extra

	LEA (Logo Extraction Algorithm)	On/ Off	LEA automatically adjusts the brightness of areas of the display to reduce the possibility of image retention. This function is "On" by default, and can be changed in the OSD menu.
	Pixel Orbiting	Off / Weak / Medium / Strong / Strongest	Orbit will slightly shift the displayed image at the pixel level, once a second to prevent image retention. This function is "On (Weak)" by default, "Weak" moves the least, "Strongest" moves the most, "Off" disables the movement and increases the chance of image retention. This can me set in the OSD menu.
	Auto Warning	On/ Off	Enable/Disable the "Pixel Refresh" Auto Warning feature. The monitor will automatically display an "Auto Warning" every 4 hours of cumulative usage to remind the user to run the "Pixel Refresh" process. Select "Off" to stop the Auto Warning for "Pixel Refresh." However, if the recommended time for running the " Pixel Refresh " is not followed, it may increase the risk of image retention on the screen. Please proceed with caution.
	Pixel Refresh	On/ Off	This function will help eliminate image retention. After startup, select "Yes" from the menu prompt. The display will shutdown the screen and run the maintenance cycle. The power indicator will flash white (1 second on/1 second off) while the cycle runs, about 10 minutes. At the end of the cycle the power indicator will turn off and the display will be in standby state.
	Screen Saver	On/ Off	When a static image is detected for a certain period of time, the screen saver function will dim the screen to protect the panel from sticking. When a moving image is detected, the monitor will recover luminance to previous working status. Default setting is Slow and may change as Fast to active Screen Saver sooner. Would highly recommend that you always turn on Screen Saver as Slow or Fast to protect the screen. It is also recommended that you also set your device to use a screen saver.
	Input Select	Auto/ HDMI1/ HDMI2/ DP1/ DP2	Select Input Signal Source
	Off Timer	0-24hrs	Select DC off time
	Image Ratio	Wide / 4:3 /Aspect / 1:1 /17"(4:3) / 19"(4:3) / 19"(5:4) / 19"W(16:10) / 21.5"W(16:9) / 22"W(16:10) / 23"W(16:9) / 23.6"W(16:9) /24"W(16:9) /	Select image ratio for display.
	DDC/CI	Yes or No	Turn On/Off DDC/CI Support
	Reset	Yes or No	Reset the menu to default
	Time after Pixel Refresh (Time since last elimination of image retention)		Refers to the number of hours of screen operation since the last time Pixel Refresh was run. A prompt to run Pixel Refresh will be displayed automatically every four hours.
	Pixel Refresh Counts (Number of times of eliminating image retention)		Records the number of times Pixel Refresh has been run.

OSD Setup

	Language		Select the OSD language
	Timeout	5-120	Adjust the OSD Timeout
	DP Capability	1.1/1.2/1.4	Note: Only DP1.2/DP1.4 support AMD FreeSync/ G-SYNC Compatible functionality. If the DP video content supports DP1.2/DP1.4, please select DP1.2/DP1.4 for DP Capability; otherwise, please select DP1.1.
	H. Position	0-100	Adjust the horizontal position of OSD
	V. Position	0-100	Adjust the vertical position of OSD
	Transparence	0-100	Adjust the transparence of OSD
	Break Reminder	On /Off	Enable a reminder for the user to take a break every hour of continuous activity, to prevent repetitive stress injury.

LED Indicator

Status	LED Color
Full Power Mode	White
Active-off Mode	Orange
Pixel Refresh under process	Flashing White (1 second on/1 second off)
JB under process	Flashing White (3 seconds on/3 seconds off)
OLED panel malfunction	Flashing Orange (1 second on/1 second off)
Shutdown mode	The indicator is not lit.

Troubleshooting

Problem	Possible solutions
The power indicator is not lit	Check if the power is turned on. Check if the power cord is connected.
The power indicator is lit, but there is no image displayed	Check if the computer is powered on. Use the Caps Lock key indicator to determine if the computer is responsive. Check if the graphics card is properly seated and powered. Check that the video cable is correctly connected between computer and display. Check that the video cable plugs do not have bent pins.
There is no image, but the power indicator flashes orange	The OLED display is malfunctioning. Please contact AOC support for service.
Failure to Plug-and-Play	Check if the computer supports Plug-and-Play. Check if the video adapter supports Plug-and-Play.
Dim image	Adjust luminance and contrast ratio.
The image is bouncing or rippled	There may be electrical interference occurring from nearby appliances or devices. Move the computer and monitor away from the interfering devices to resolve the problem.
The screen displays "the signal wire is not available" or "no signal."	Unplug and plug in the video cable. Inspect the video cable pins for damage.
The screen displays Invalid Input	Reset the computer output to a display mode compatible with the display.
Image retention	Use the Pixel Refresh function to eliminate image retention from the screen. Refer to the "Screen Maintenance" section.
Regulation & Service	Please refer to Regulation & Service Information which is in the CD manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.

Specification

General Specification

Panel	Model Name	AG276QKD
	Driving System	OLED
	Viewable Image Size	67.3 cm Diagonal
	Pixel Pitch	0.2292mm(H) x 0.2292mm(V)
	Display Color	1.07B Colors
Others	Horizontal Scan Range	30k~510kHz
	Horizontal scan Size(Maximum)	586.75 mm
	Vertical Scan Range	48~480Hz
	Vertical Scan Size(Maximum)	330.05 mm
	Optimal Preset Resolution	2560 x 1440@60Hz
	Max Resolution	2560 x 1440@480Hz
	Plug & Play	VESA DDC2B/CI
	Connector	HDMIX2/DisplayPortX2/USBx2/USB upstream/Earphone
	Power Source	20V 9.0A
	Power Consumption	Typical(Default Brightness And Contrast)	48 W
		Max. (Brightness = 100, Contrast =100)	≤ 172 W
		Standby Mode	≤ 0.5 W
Environmental	Temperature	Operating	0°C~ 40°C
		Non-Operating	-25°C~ 55°C
		Perform JB Function to Recommend Temperature	0°C~ 40°C
	Humidity	Operating	10%~85% (Non-Condensing)
		Non-Operating	5%~93% (Non-Condensing)
	Altitude	Operating	0m~5000m (0ft~16404ft)
		Non-Operating	0m~12192m (0ft~40000ft)

Note:

1. The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards):

2. In order to reach QHD 240Hz 1.07 billion colors (in RGB/YCbCr 4:4:4 format) for DP 1.4 (HBR3) signal input, a DSCenabled graphics card must be used. Consult the graphics card manufacturer for DSC support.

Preset Display Modes

STANDARD	RESOLUTION (±1Hz)		HORIZONTAL FREQUENCY(kHz)		VERTICAL FREQUENCY(Hz)
VGA	640×480@60Hz		31.469		59.940
	640x480@72Hz		37.861		72.809
	640x480@75Hz		37.500		75.000
	640x480@100Hz		51.080		99.769
	640x480@120Hz		60.938		119.720
SVGA	800x600@56Hz		35.156		56.250
	800×600@60Hz		37.879		60.317
	800x600@72Hz		48.077		72.188
	800x600@75Hz		46.875		75.000
	800x600@100Hz		62.760		99.778
	800x600@120Hz		76.302		119.972
XGA	1024x768@60Hz		48.363		60.004
	1024x768@70Hz		56.476		70.069
	1024x768@75Hz		60.023		75.029
	1024x768@100Hz		80.450		99.811
	1024x768@120Hz		97.550		119.989
SXGA	1280x1024@60Hz		63.981		60.020
	1280x1024@75Hz		79.976		75.025
FHD	1920×1080@60Hz		67.500		60.000
	1920x1080@100Hz		112.500		100.000
	1920x1080@120Hz		137.260		119.982
	1920x1080@240Hz		278.400		240.000
QHD	2560×1440@60Hz		96.180		60.000
	2560x1440@120Hz		192.360		120.000
	2560x1440@144Hz		222.056		143.912
	2560x1440@165Hz		242.543		164.995
	2560x1440@240Hz		384.722		240.001
	2560x1440@360Hz		529.201		360.001
	2560x1440@480Hz		835.2		480
PBP	1280x1440@60Hz		89.450		59.913
	1280x1440@75Hz		111.972		74.998
	1280x1440@100Hz		149.300		100.000
	1280x1440@120Hz		179.157		119.998
	1280x1440@144Hz		214.994		144.002
	1280x1440@240Hz		358.320		240.000
	1280x1440@360Hz		537.485		360.004
	1280x1440@480Hz (DisplayPort)		537.485		480.004
IBM MODES
DOS	720x400@70Hz		31.469		70.087
MAC MODES
VGA	640x480@67Hz		35.000		66.667
SVGA	832x624@75Hz		49.725		74.551

Note: According to the VESA standard, different operating systems and graphics cards may have certain errors (+/-1Hz) on resoution. Actual please refer to the actual product.

Pin Assignments

19-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1.	TMDS Data 2+	9.	TMDS Data 0-	17.	DDC/CEC Ground
2.	TMDS Data 2 Shield	10.	TMDS Clock +	18.	+5V Power
3.	TMDS Data 2-	11.	TMDS Clock Shield	19.	Hot Plug Detect
4.	TMDS Data 1+	12.	TMDS Clock-
5.	TMDS Data 1Shield	13.	CEC
6.	TMDS Data 1-	14.	Reserved (N.C. on device)
7.	TMDS Data 0+	15.	SCL
8.	TMDS Data 0 Shield	16.	SDA

20-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name
1	ML_Lane 3 (n)	11	GND
2	GND	12	ML_Lane 0 (p)
3	ML_Lane 3 (p)	13	CONFIG1
4	ML_Lane 2 (n)	14	CONFIG2
5	GND	15	AUX_CH(p)
6	ML_Lane 2 (p)	16	GND
7	ML_Lane 1 (n)	17	AUX_CH(n)
8	GND	18	Hot Plug Detect
9	ML_Lane 1 (p)	19	Return DP_PWR
10	ML_Lane 0 (n)	20	DP_PWR

Plug and Play

Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Safety

Notational Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.
To avoid potential damage, for example the panel peeling from the bezel, ensure that the monitor does not tilt downward by more than -5 degrees. If the -5 degree downward tilt angle maximum is exceeded, the monitor damage will not be covered under warranty.

See above the recommended ventilation areas around the monitor when the monitor is installed -on the stand:

Cleaning

Clean the cabinet regularly with a water-dampened, soft cloth.
When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case.
Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the OLED monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
It is not recommended to use this OLED product for more than four continuous hours. Possible image retention (burn-in) may occur beyond this usage duration. To reduce the probability of image retention this product uses a number of technologies A maintenance cycle takes about 10 minutes. For details, refer to the "Screen Maintenance" section.

www.aoc.com

Documents / Resources

References

• Homepage | AOC Monitors

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download AOC AGON PRO AG276QKD Manual
