Summary of Contents for AOC AGON PRO AG276UX

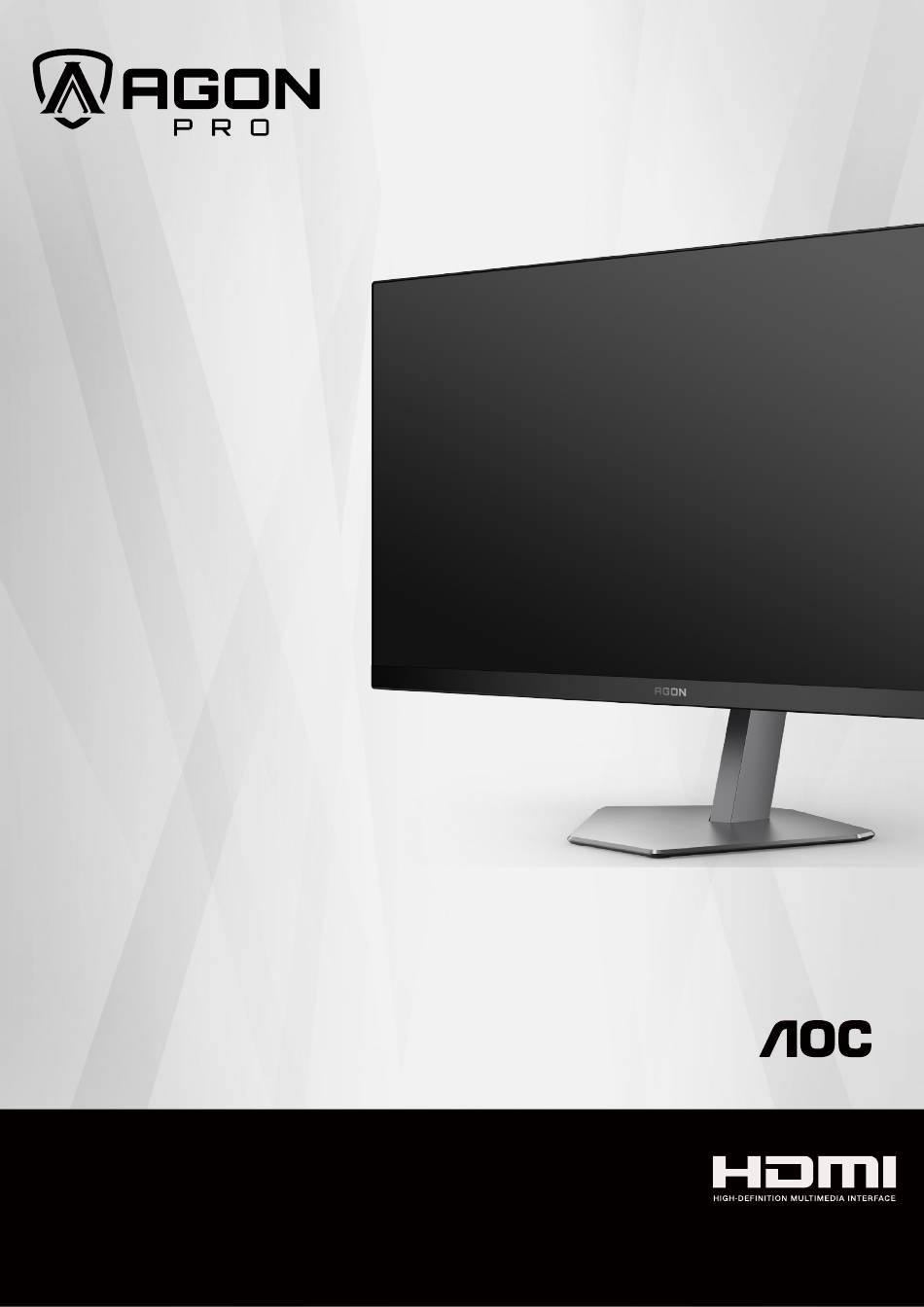

- Page 1 LCD Monitor User Manual AG276UX ® www.aoc.com © 2024 AOC.All Rights Reserved...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ............................1 Power ..................................2 Installation ................................3 Cleaning .................................4 Other ..................................5 Setup ....................................6 Contents in Box ..............................6 Setup Stand & Base ..............................7 Adjusting the monitor ............................8 Connecting the Monitor ............................9 Wall Mounting ..............................10 Adaptive-Sync function (Available for selective models) ................12 G-SYNC Compatible function(Available for selective models) .............. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Stand Base Wall Mount Bracket Adapter Power Cable DP Cable HDMI Cable Audio Cable USB Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove: Specification for base screw：M6*13mm（effective thread5.5mm）... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 130mm 90°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor. 1. Earphone 2. Power 3. HDMI1 4. HDMI2 5. DP 6. USB3.2 Gen1 upstream 7. USB3.2 Gen1 downstream + fast charging Connect to PC 1. Connect the power cord to the back of the display firmly. 2. -
Page 12: Wall Mounting
Specification of wall hanger screws: M4*(10+X)mm, ( X=Thickness of Wall mount bracket ) M=4.0Max M4-P0.7 Dk=8.0 H=2.0 L=10+X Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Always contact manufacturer for wall-mount installation. - Page 13 0° 90° -5° * Display design may differ from those illustrated. Warning： 1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. 2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
-
Page 14: Adaptive-Sync Function (Available For Selective Models)
Adaptive-Sync function (Available for selective models) 1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www. AMD.com Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series •... -
Page 15: G-Sync Compatible Function(Available For Selective Models)
G-SYNC Compatible function(Available for selective models) 1. G-SYNC Compatible function is working with DP/HDMI 2. To enjoy the perfect gaming experience with G-SYNC, you need to purchase a Separate NVIDIA GPU card that supports G-SYNC. G-sync system requirements Desktop computer connected to G-SYNC monitor: Graphics cards supported: G-SYNC features require NVIDIA GeForce®... -
Page 16: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. -
Page 17: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. -
Page 18: Quick Switch
Quick Switch When there is no OSD, press the button to open game mode function, then press or key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types. When there is no OSD, press “Right” key to active Light FX function. Menu/OK: When there is no OSD, Press to display the OSD or confirm the selection. -
Page 19: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 20 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 21: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Color Setup PIP Setting PIP Setting Audio Light FX Audio Light FX Extra OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 22: Game Setting
Game Setting Game Setting Game Setting Game Mode Game Mode Shadow Control Shadow Control Shadow Boost Shadow Boost Game Color Game Color Sniper Scope Sniper Scope MBR Sync MBR Sync Adaptive-Sync G-SYNC Exit Enter Select Exit Enter Select For playing FPS (First Person Shooters) games. Improves dark theme black level details. - Page 23 Low Input lag On / Off Turn off frame buffer to decrease input lag Off / Right-Up Display V frequency on the corner selected / Right-Down Frame Counter (Frame counter feature only works with AMD / Left-Down / graphic card.) Left-Up Console/DVD / HDMI1...
-
Page 24: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 HDR Mode Local Dimming Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco mode Movie Movie Mode Sports Sports Mode... - Page 25 For liquid crystal panel light diffusing and backlight local dimming effect, some special window picture edge or moving picture may have halo or brightness varies quickly during pattern change, those phenomena are related to mini-LED backlight , Please use it carefreely. You can active OSD menu and set local dimming off to reduce the diffusing or halo effect.
-
Page 26: Pip Setting
PIP Setting PIP Setting Main Source HDMI1 Sub Source HDMI1 Size Small Position Right-Up Audio Swap Exit Enter Select OFF / PIP / Disable or Enable PIP or PBP. Main Source Select main screen source. Sub Source Select sub screen source. Small / Middle Size Select screen size. -
Page 27: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia / Decrease blue light wave by controlling color LowBlue Mode Internet / Office / temperature. Reading Warm Recall Warm Color Temperature from EEPROM. -
Page 28: Audio
Audio Audio Volume Exit Enter Select Volume 0-100 Adjust volume setting... -
Page 29: Light Fx
Light FX Light FX Light FX Strong Light FX Mode Breathing Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static /... -
Page 30: Extra
Extra Extra Input Select Auto Off Timer Image Ratio Wide DDC/CI Reset Resolution: 3840(H)x2160(V) SDR H.Frequency: 133 KHz V.Frequency: 60 Hz Exit Enter Select Input Select AUTO/HDMI1/HDMI2/DP Select Input Signal Source Off / On Turn ON/OFF USB Off timer 0-24hrs Select DC off time Wide / 4:3 / 1:1 / 17"(4:3) / 19"(4:3) / 19"(5:4) /... -
Page 31: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout please be noted that only DP1.2/DP1.4 support DP Capability 1.1/1.2/1.4 Adaptive-Sync/G-SYNC function H. -
Page 32: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 33: Troubleshoot
Press hot-key (AUTO) to auto-adjust. Please refer to Regulation & Service Information which is in the CD Regulation & Service manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.) -
Page 34: Specification
Specification General Specification Model name AG276UX Driving system TFT Color LCD Panel Viewable Image Size XXX cm diagonal Pixel pitch 0.2331mm(H) x 0.2331mm(V) Display Color 1.07B Colors Horizontal scan range 30~360kHz Horizontal scan Size(Maximum) 596.736 Vertical scan range 48~240Hz Vertical Scan Size(Maximum) 335.664 Optimal preset resolution 3840 x 2160@60Hz... -
Page 35: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (+/-1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA... -
Page 36: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 37: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
